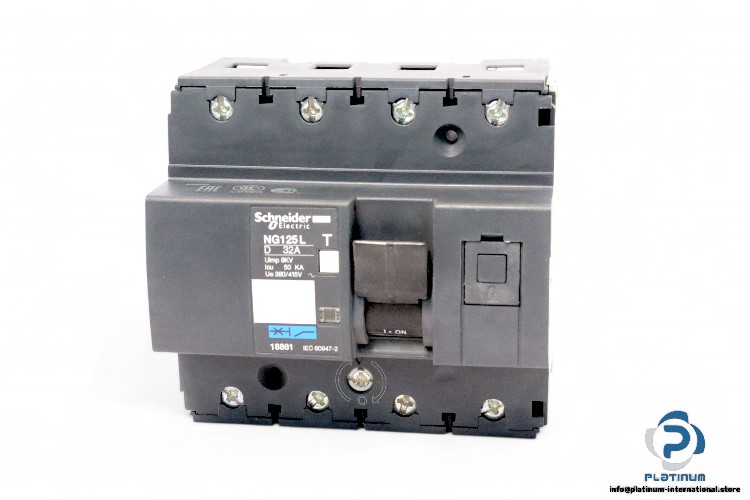

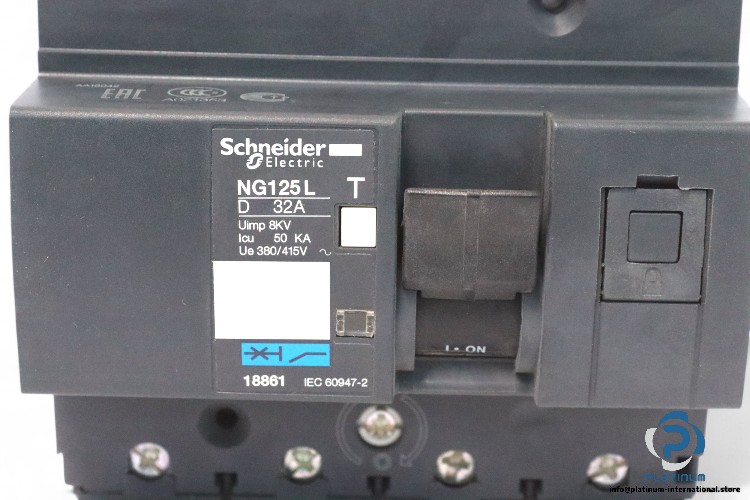

Schneider NG125L 18861 Circuit Breaker

Manufacturer: Schneider
Type: Circuit Breaker
Model: NG125L
Part no.: 18861

Rated Insulation Voltage (Ui): 690 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp): 8 kV
rated current: 32 A at 40 °C
Network frequency: 50 … 60 Hz
Number of protected poles: 4
Mounting support: 35 mm symmetrical DIN rail
Electrical durability: 10000 cycles
Connections – terminals:
Tunnel type terminals1.5…50 mm² rigid
Tunnel type terminals1…35 mm² flexible
Wire stripping length: 20 mm
Tightening torque: 3.5 N.m
Degree of protection: IP20
Ambient Temperature: -30…70 °C

Dimension (H x W x D): 103 x 108 x 81 mm
