Schneider RXM4AB2JD 12 VDC Miniature Plug-IN Relay
New
In stock10 unitsReady to ship
Miniature Plug-in Relay
A compact 12 V DC plug-in relay featuring 4 C/O contacts, LED status indication, and high switching performance for industrial automation and electrical control systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

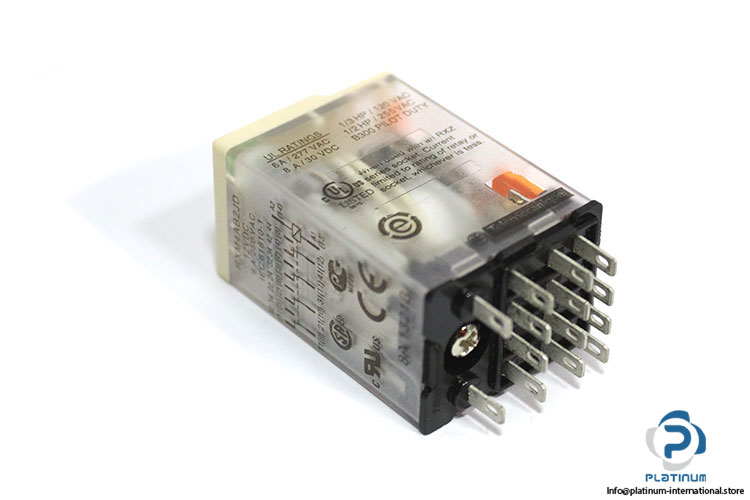

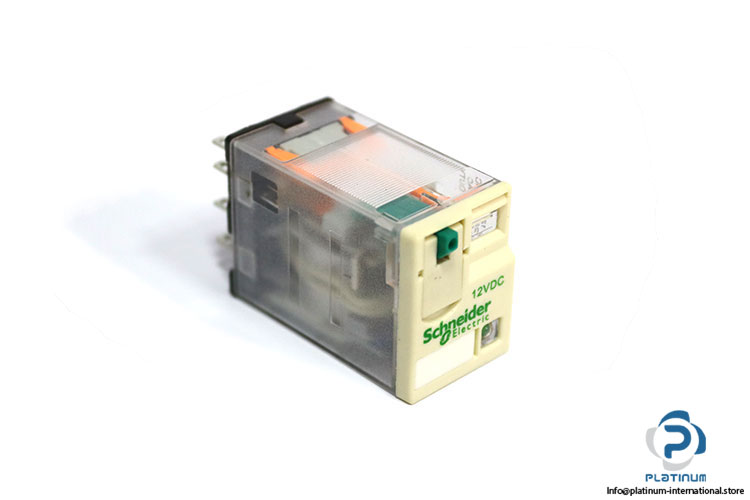

Schneider RXM4AB2JD Miniature Plug-in Relay
A compact and high-performance miniature plug-in relay designed for reliable switching operations across industrial control systems, automation panels, and electrical protection setups. Part of the Zelio Relay range, this model offers robust performance, long service life, and high electrical endurance. Manufacturer: SCHNEIDER
Type: Miniature Plug-in Relay

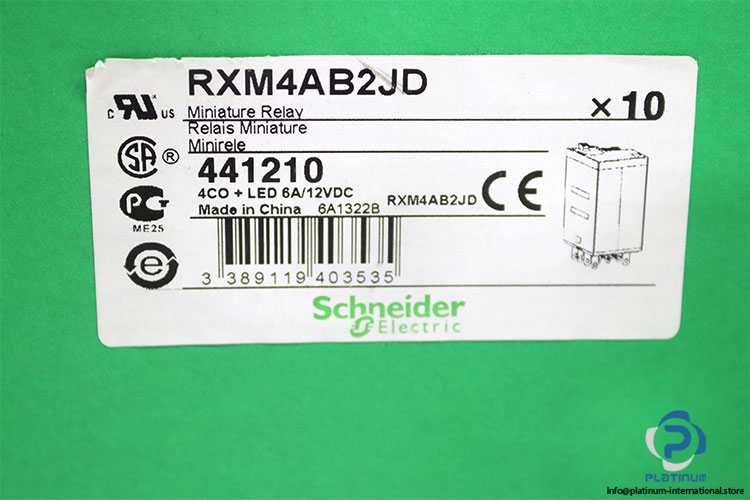

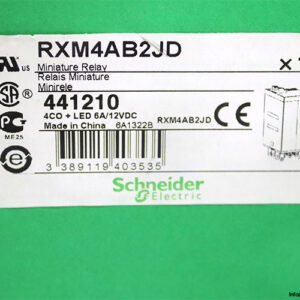

Model: RXM4AB2JD
Part No.: 441210
Serial No.: 3389119403535

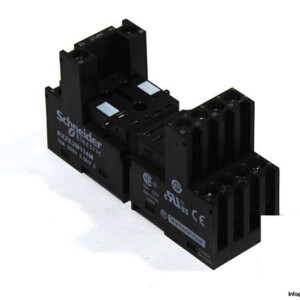

Relay bases and sockets for various relay types are available. For compatible options, please contact us or visit our website to view all available models.

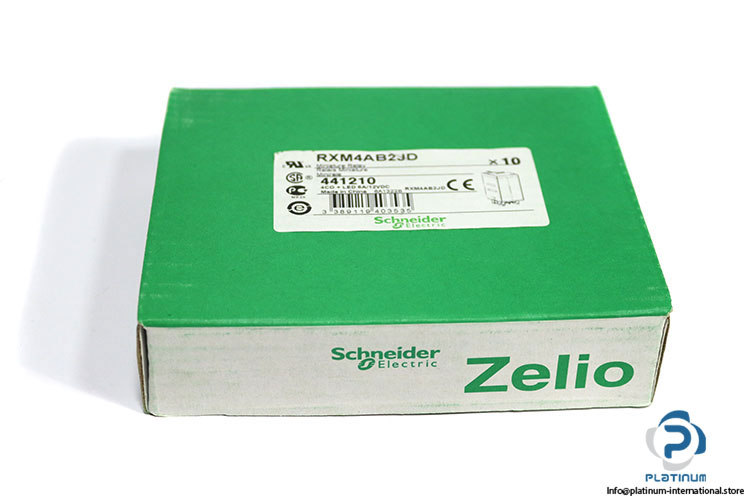

| Range of Product | Zelio Relay |
| Series Name | Miniature |
| Product Type | Plug-in Relay |
| Device Short Name | RXM |

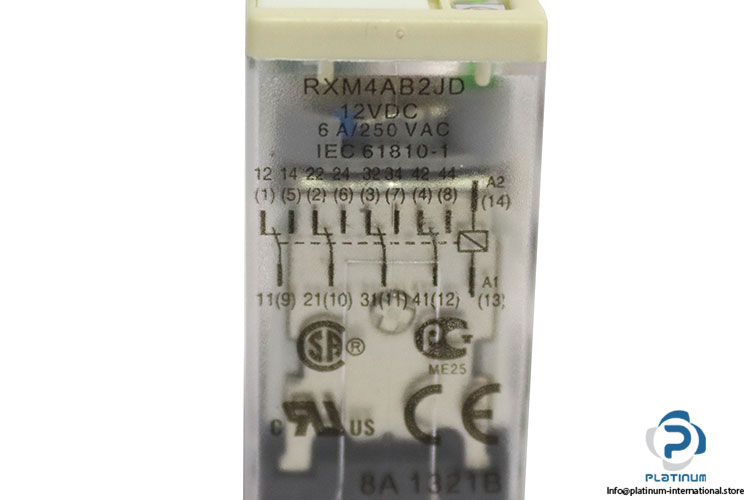

| Contacts Type | 4 C/O |
| Control Circuit Voltage | 12 V DC |
| Conventional Enclosed Thermal Current [Ithe] | 6 A at -40...55 °C |

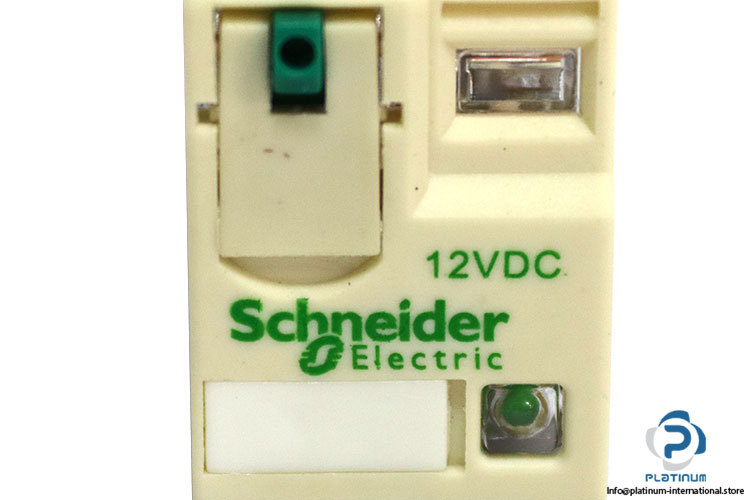

| Status LED | With |
| Control Type | Lockable Test Button |
| Pin Shape | Flat |
| Rated Insulation Voltage [Ui] | 250 V IEC / 300 V UL / 300 V CSA |
| Rated Impulse Withstand Voltage [Uimp] | 2.5 kV for 1.2/50 µs |
| Contacts Material | AgNi |
| Maximum Switching Voltage | 250 V (IEC) |
| Load Current | 6 A at 250 V AC / 6 A at 28 V DC |
| Maximum Switching Capacity | 1500 VA / 168 W |
| Minimum Switching Capacity | 170 mW at 10 mA, 17 V |
| Average Resistance | 160 Ohm at 20 °C ±10% |
| Rated Operational Voltage Limits | 9.6 / 13.2 V DC |
| Safety Reliability Data | B10d = 100000 |
| Protection Category | RT I |
| Ambient Temperature for Operation | -40 / 55 °C |
| Dimensions | 40 x 21 x 27 mm |
