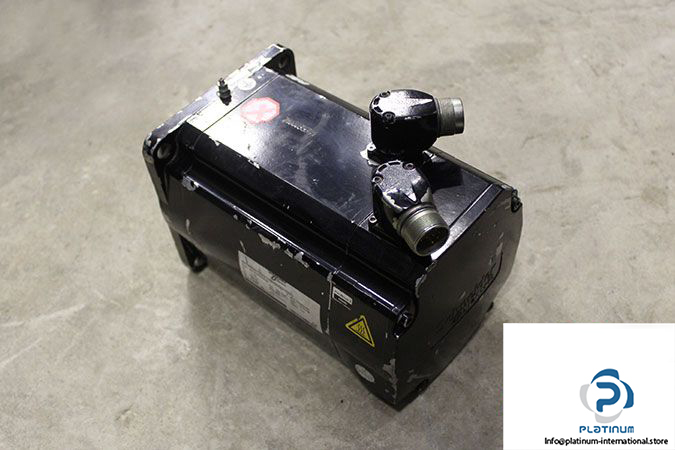

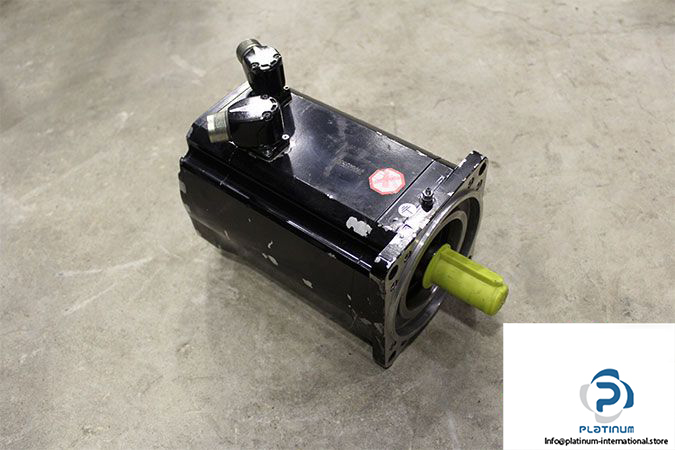

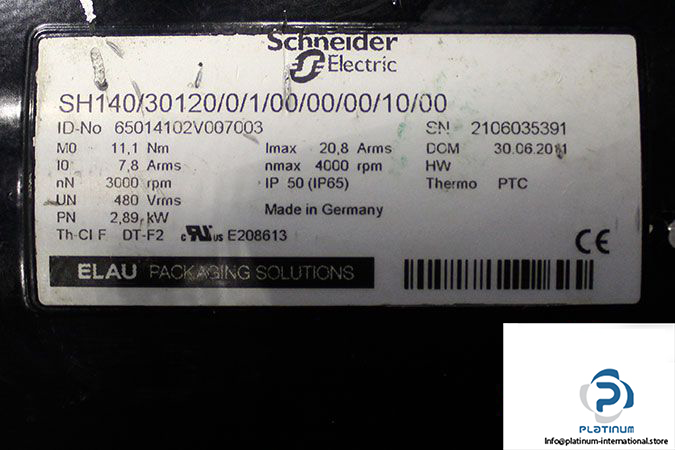

Schneider SH140/30120/0/1/00/00/00/10/00 Servo Motor

Manufacturer: Schneider Electric, Elau

Type: Servo Motor

Model: SH 140/30120/0/1/00/00/00/10/00

Device Short Name: PH3……P

Rated Supply Voltage [V]: 480

Nominal Speed [rpm]: 3000

Maximum Mechanical Speed [rpm]: 4000

Maximum Axial Force [N]: 300

Continuous Power [kW]: 2.89

Continuous Stall Current [A]: 7.8

Maximum Permanent Current [A]: 20.8

Continuous Stall Torque [Nm]: 11.1

Peak Stall Torque [Nm]: 27

Torque Constant [Nm/A]: 1.43

Back emf Constant [V/krpm]: 100

Number of Motor Pole: 5

Shaft End: Parallel Key

Shaft Diameter [mm]: 24

Shaft Length [mm]: 50

Key Width [mm]: 8

Motor Flange Size [mm]: 140

Network Number of Phases: Three phase

Speed Feedback Resolution: 128 periods

Degree of Protection [IP]: 50 (65)

Thermal Class: F

Weight [kg]: 11.13
