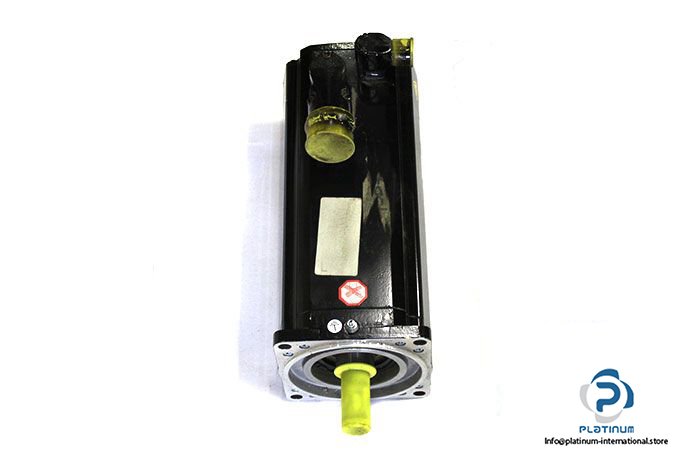

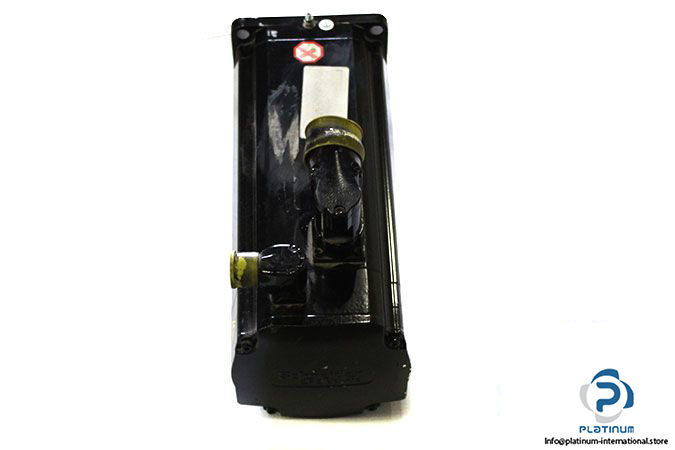

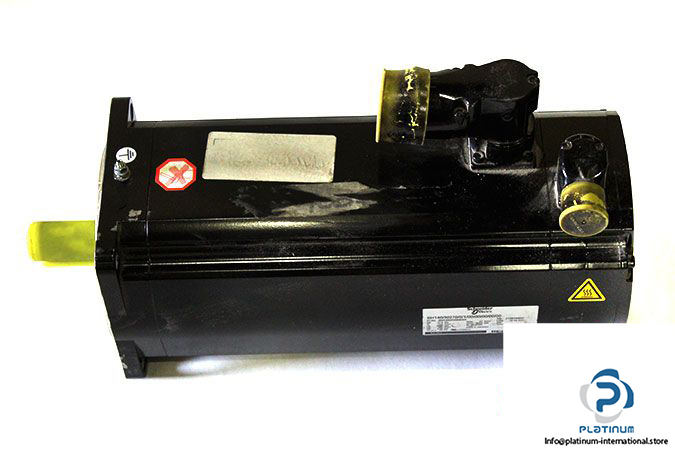

Schneider SH140/30270/0/1/00/00/00/00/00 Servo Motor

Manufacturer: ELAU – Schneider Electric

Type: Servo Motor

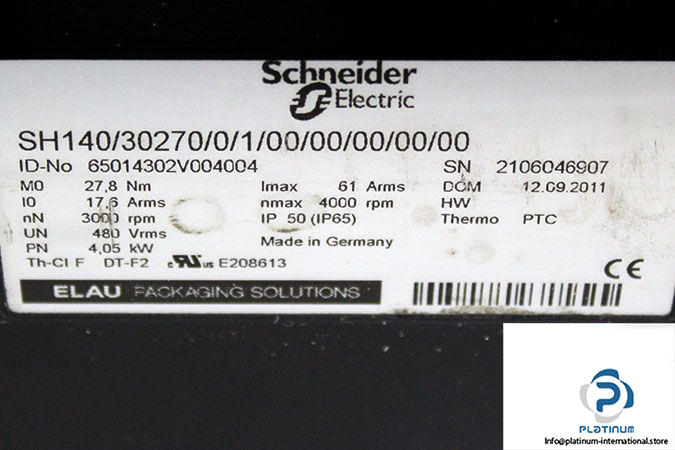

Model: SH140/30270/0/1/00/00/00/00/00

Alternative Model: SH31403P11A2000

ID No: 65014302V004004

Rated Voltage: 480 Vrms

Max. Current: 61 Arms

Stall Current: 17.6 Arms

Rated Speed: 3000 Revolution Per Minute (rpm)

Max. Speed: 4000 Revolution Per Minute (rpm)

Stall Torque: 27.8 Nm

Rated Power: 4.05 kW

Holding Brake: Without

Shaft Diameter: 24 mm

Shaft Length: 50 mm

Motor Flange Size: 140 mm

Thermal Class: F

Protection Class: IP50 (IP65)
