Schneider SH30552P02A2000 Servo Motor
Used
Available on request
750,00$
SERVO MOTOR
Schneider Electric SH30552P02A2000 servo motor offers 480 V supply, 670 W output power, and 9000 rpm max speed with IP50/IP65 protection and multiturn Hiperface encoder.480V9000CompactDriveElauEncoderFlangeHighHiperfaceIndustrialmotorrpmSchneiderServoSH3SH30552P02A2000shaftSmoothSpeed
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

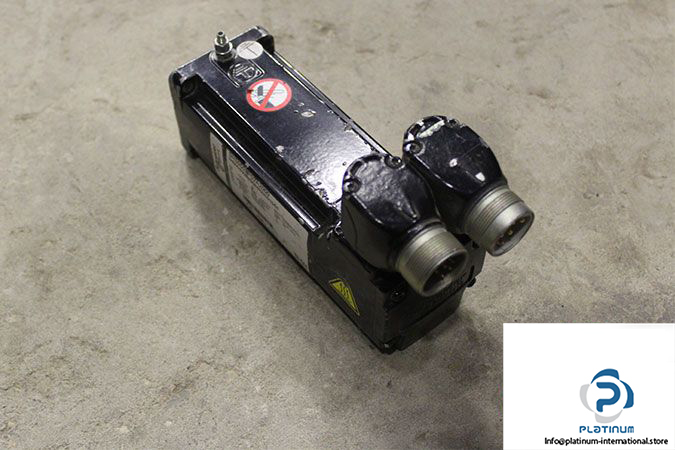

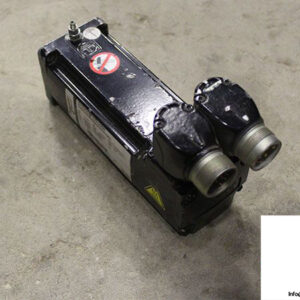

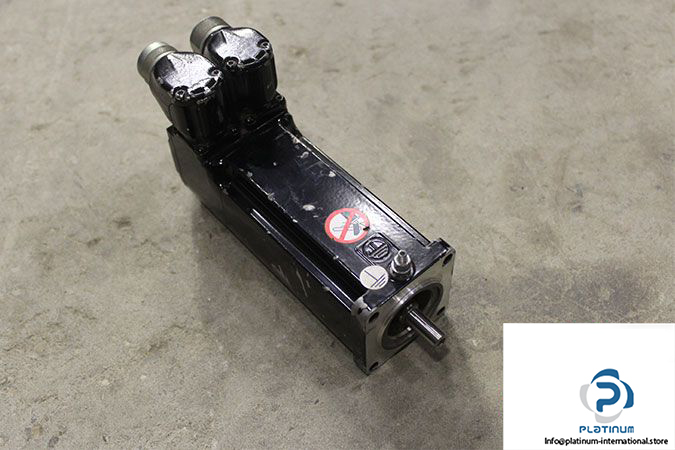

SCHNEIDER ELECTRIC SH30552P02A2000 SERVO MOTOR
The Schneider Electric / Elau SH30552P02A2000 is a high-speed, high-efficiency servo motor designed for precision motion control in industrial applications. Built with a compact 55 mm flange and advanced feedback technology, this servo motor ensures smooth operation and reliable performance at speeds up to 9000 rpm.
Manufacturer: Schneider Electric, Elau
Type: Servo Motor

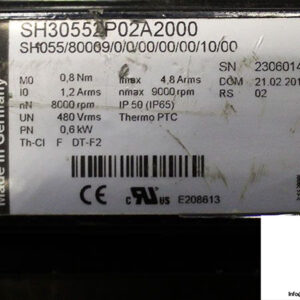

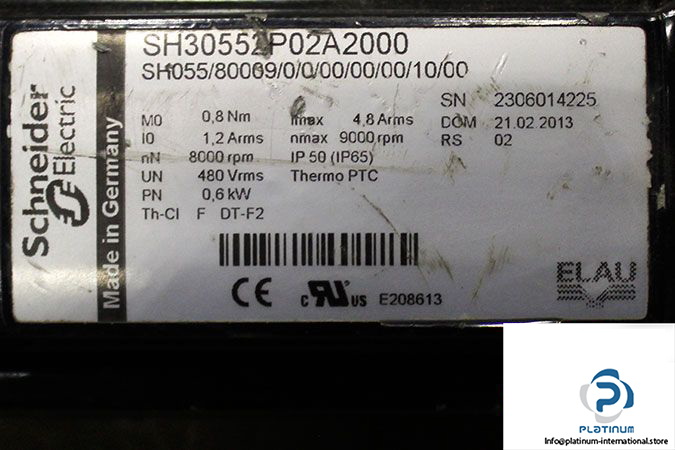

Model: SH30552P02A2000
Part No.: SH055/80009/0/0/00/00/00/10/00
Serial No.: 2306014225
Device Short Name: SH3 / .P
| Supply Voltage | 480 V |
| Peak Stall Torque | 2.5 Nm |
| Stall Torque | 0.8 Nm |
| Nominal Output Power | 670 W |
| Rated Power | 0.6 kW |
| Nominal Torque | 0.63 Nm |
| Nominal Speed | 8000 rpm |
| Maximum Speed | 9000 rpm |
| Continuous Stall Current | 1.2 A |
| Maximum Current Irms | 4.8 A |
| Maximum Radial Force Fr | 190 N |
| Degree of Protection | IP50 (IP65) |
| Encoder Type | Absolute Multiturn Sincos Hiperface |
| Speed Feedback Resolution | 128 Periods |
| Mounting Support | International Standard Flange |
| Motor Flange Size | 55 mm |
| Number of Poles | 3 |
| Shaft End | Smooth Shaft |
| Shaft Diameter | 9 mm |
| Shaft Length | 20 mm |
| Thermal Class | F |
