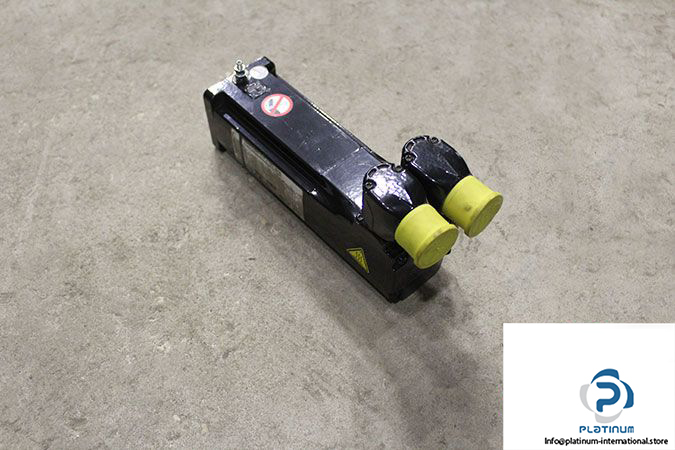

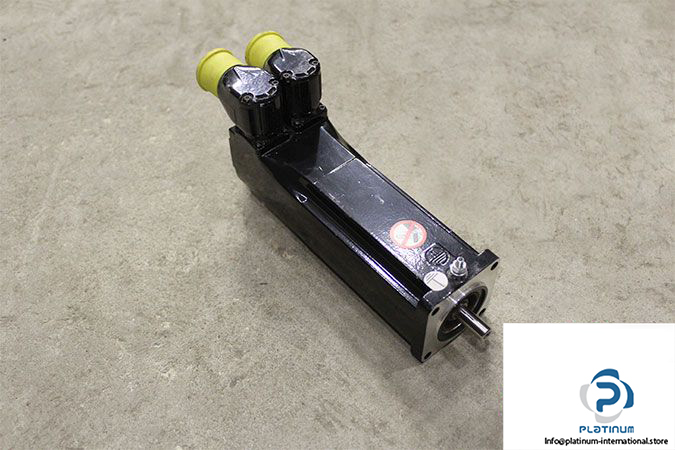

Schneider SH30552P02F2100 AC Servo Motor

Manufacturer: Schneider Electric, Elau

Type: AC Servo Motors

Model: SH30552P02F2100

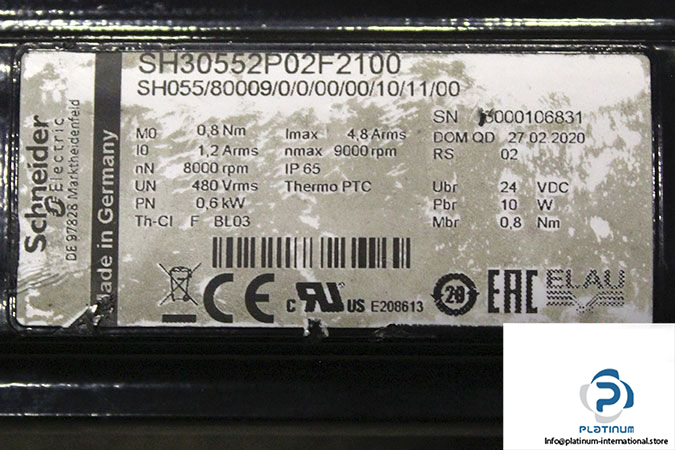

Part No.: SH055/80009/0/0/00/00/10/11/00

Stall Torque [Nm]: 0.8

Stall Current [A]: 1.2

Max Current [A]: 4.8

Rated Voltage [V]: 480

Rated Power [kW]: 0.6

Rated Speed [rpm]: 8000

Max Speed [rpm]: 9000

Brake Voltage [VDC]: 24

Brake Torque [Nm]: 0.8

Brake Power [W]: 10

Shaft End: Smooth Shaft

Flange Size [mm]: 55

Shaft Diameter [mm]: 9

Shaft Length [mm]: 20

Protection Class [IP]: 65

Weight [kg]: 1.67
