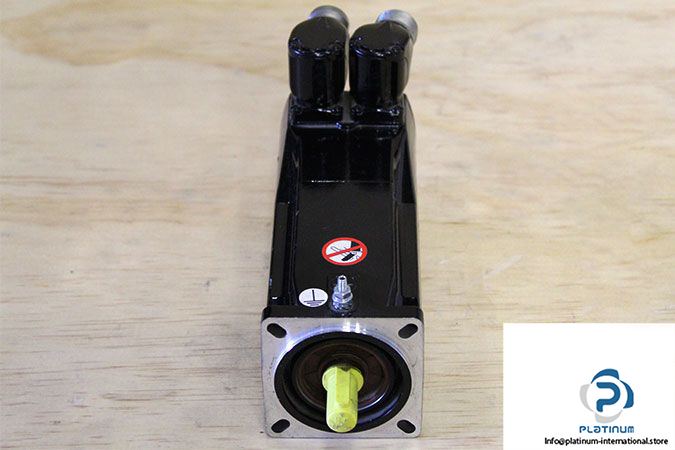

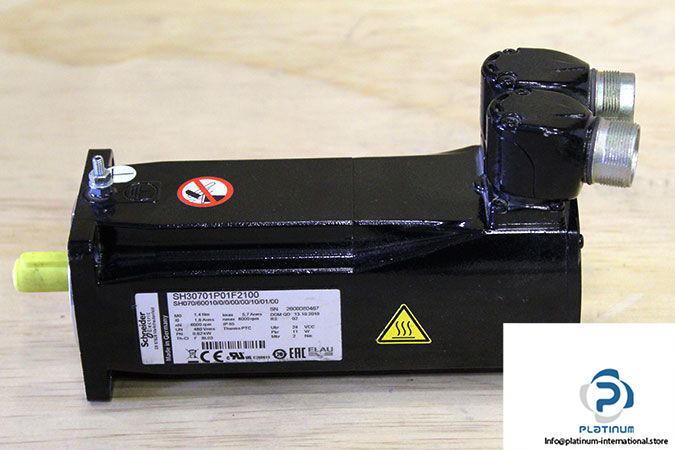

Schneider Electric SH30701P01F2100 Servo Motor

Manufacturer: ELAU – SCHNEIDER ELECTRIC

Type: SERVO MOTOR

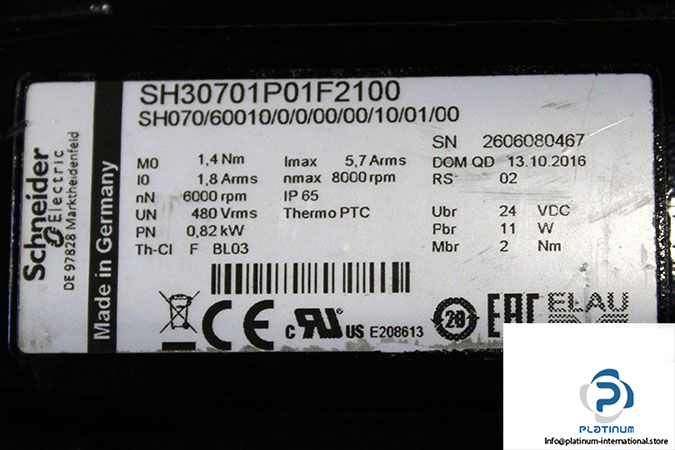

Model: SH30701P01F2100

Alternative Model: SH070/60010/0/0/00/00/10/01/00

Rated Voltage : 480 Vrms

Max. Current: 5.7 Arms

Stall Current: 1.8 Arms

Normal Speed: 6000 Revolution Per Minute (rpm)

Max. Speed: 8000 Revolution Per Minute (rpm)

Nominal Torque: 1.4 Nm

Holding Torque: 2 Nm

Nominal Power: 0.82 kW

Flange Size: 70 mm

Motor Length: 179.5 mm

Shaft Diameter: 11 mm

Shaft Length: 23 mm

Insulation Class: F

Protection Class: IP65

Weight: 2.50 kg
