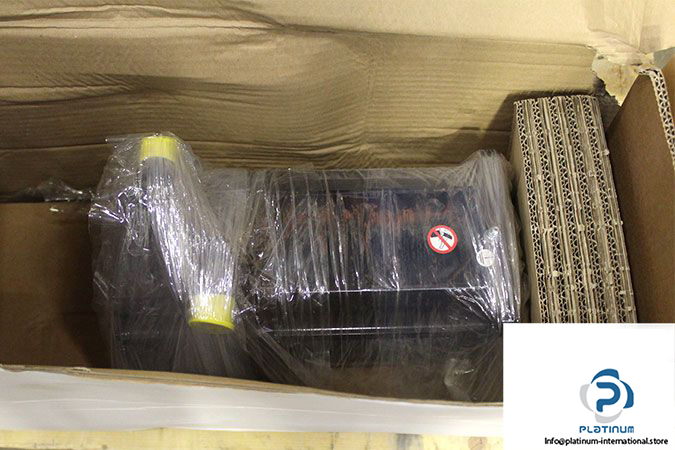

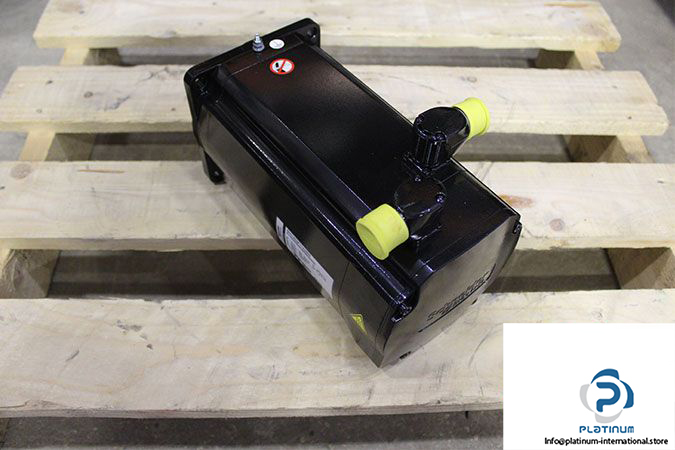

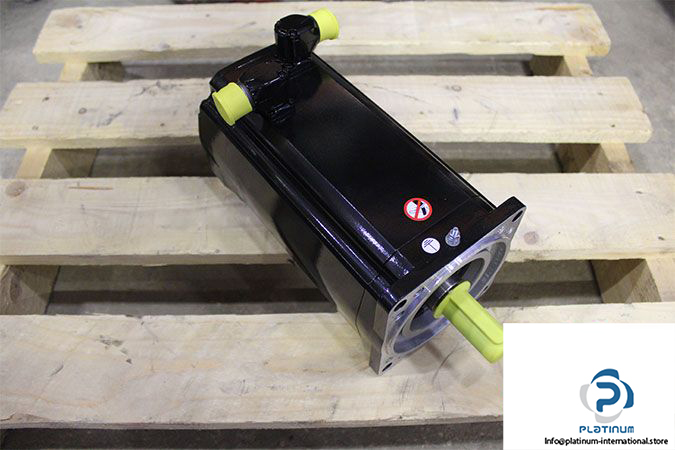

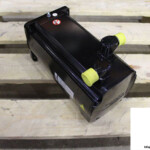

Schneider SH31402P11A2000 AC Servo Motor

Manufacturer: Schneider Electric, Elau

Type: AC Servo Motors

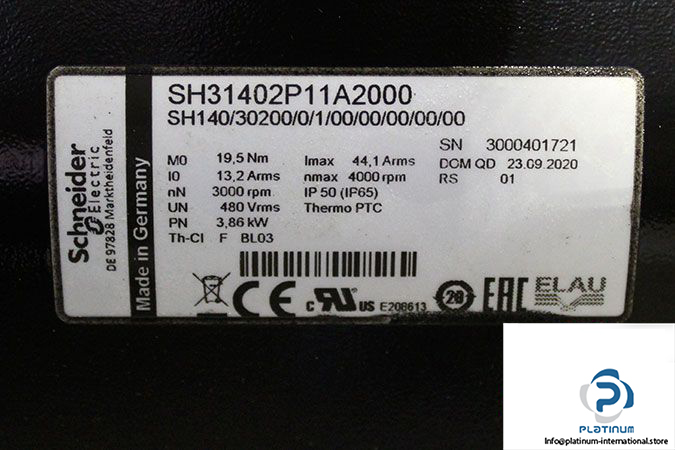

Model: SH31402P11A2000



Stall Torque [Nm]: 19.5

Stall Current [A]: 13.2

Max Current [A]: 44.1

Rated Voltage [V]: 480

Rated Power [kW]: 3.86

Rated Speed [rpm]: 3000

Max Speed [rpm]: 4000

Number of Poles: 10

Shaft End: Parallel key

Flange Size [mm]: 140

Shaft Diameter [mm]: 24

Shaft Length [mm]: 50

Key Width [mm]: 8

Protection Class [IP]: 65

Thermal Class: F

Net Weight [kg]: 16.6
