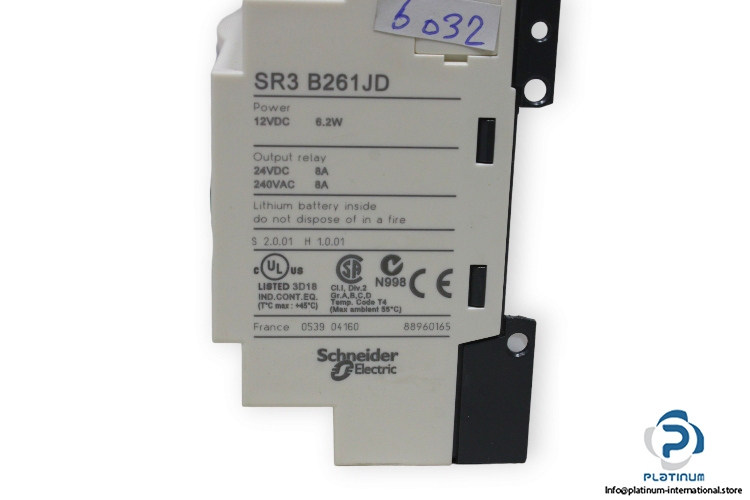

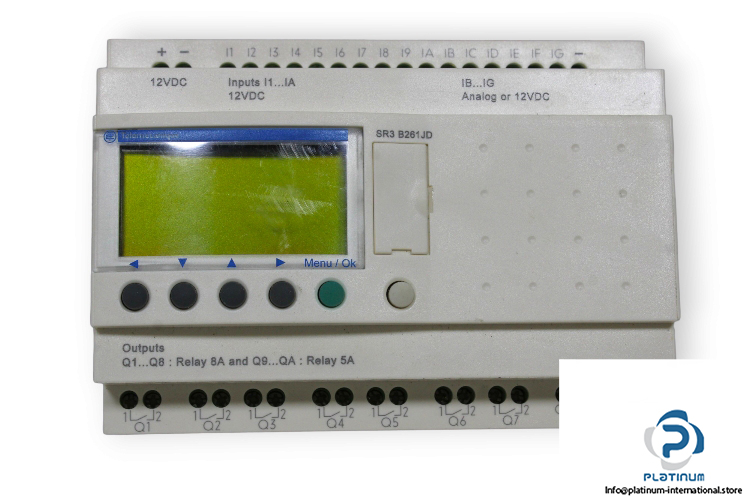

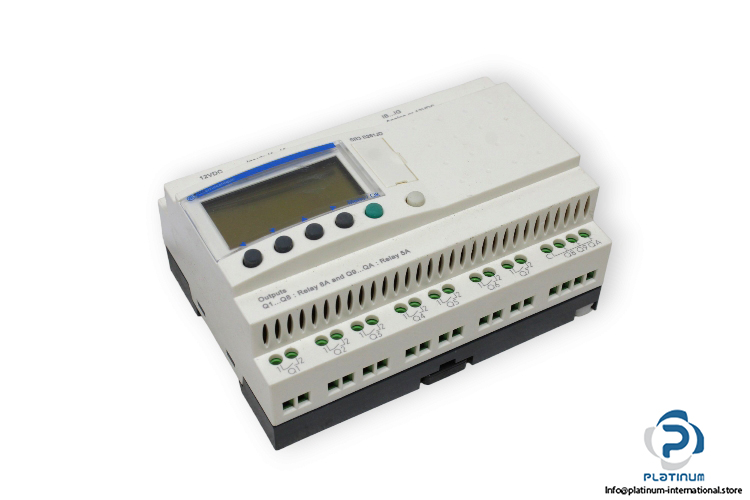

Schneider SR3 B261JD Modular Programmable Relay

Manufacturer: SCHNEIDER
Type: Modular Programmable Relay
Model: SR3B261JD
Part no.: 88960165

Cycle time: 6…90 ms
[Us] Nominal supply voltage: 12 VDC
supply voltage limits: 10.4…14.4 V
digital input type: Resistive
input voltage: 12V DC
discrete input current: 4mA
counting frequency: 1 kHz for digital input
analog input number: 6
analog input type: Common mode
analog input range:
0..0.12 V
0..10 V
maximum allowable stress: 14.4 V for analog input circuit
analog input resolution: 8 bits at maximum voltage
Replay Accuracy: +/- 2%
output voltage limits:
24 VDC/ 8 A
240 VAC/ 8 A
Type of contacts and composition: NO for relay output
Dimensions: 124.6 x 90 x 59.5 mm
