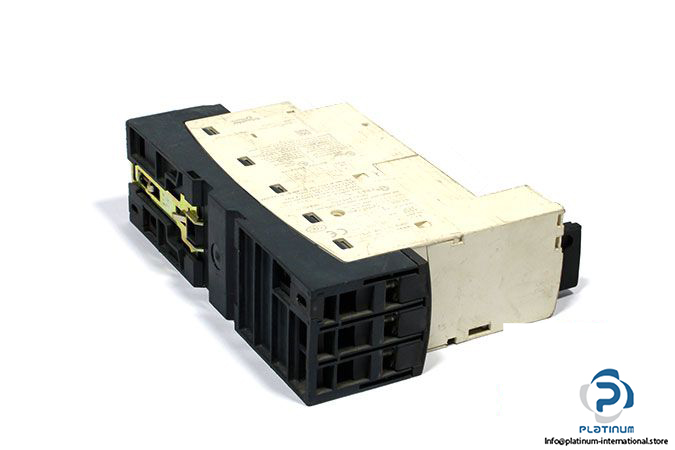

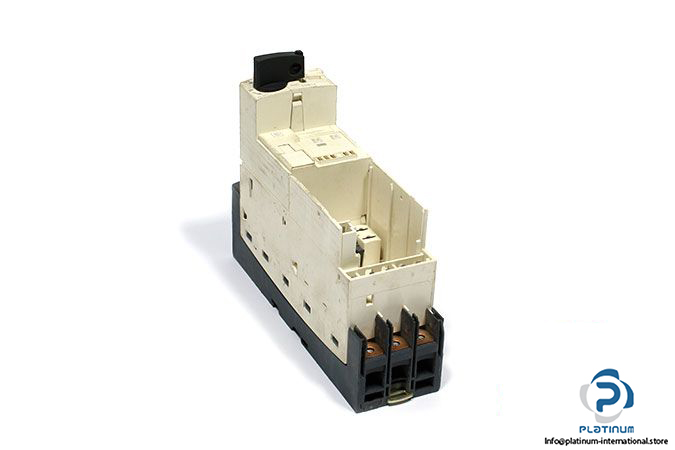

Schneider Tesys U LUB12 Power Base

Manufacturer: Schneider

Type: Power Base

Range: Tesys

Model: Tesys U

Part No.: LUB12



Device Application: Motor Control / Motor Protection

Number of Poles: 3

Rated Operational Current (I_e): 12 A

Rated Operational Voltage (U_e): 690 V AC

Operating Frequency: 50/60 Hz

Rated Surge Voltage Resistance (U_imp): 6 kV

Rated Insulation Voltage (U_i): 690 V AC

Connections – Terminals: Screw Clamps Control

Standards: IEC 60947-2 / EN 60947-6-2

Fixing Mode: Clipped (DIN Rail) / Screw-Fixed (Plate)

Protection Class: IP20

Dimensions (W x D x H): 45 X 126 X 154 mm

Operation Ambient Temperature: -25 … 60 °C

Weight: 0.8 kg
