Schneider VW3M5102R200 Power Cable
Power Cable
SCHNEIDER VW3M5102R200 preassembled power cable with M23 connector, 20 m length, designed for connection between servo motors and servo drives.SCHNEIDER VW3M5102R200 Power Cable

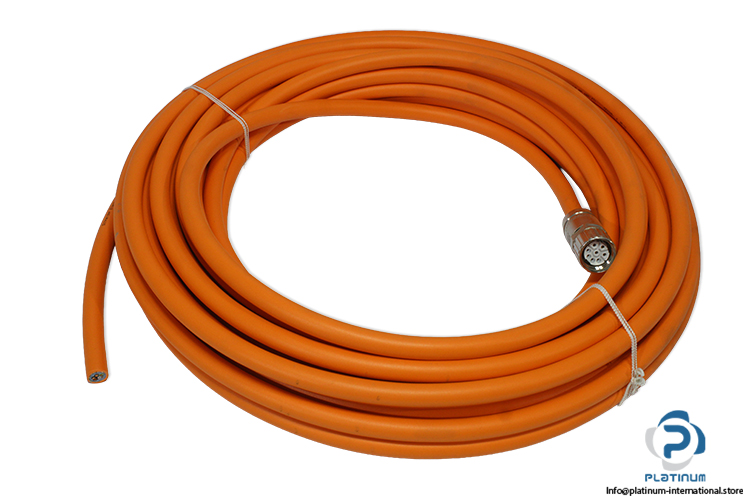

The SCHNEIDER VW3M5102R200 is a preassembled industrial power cable designed for reliable power transmission between compatible servo motors and servo drives. It features robust construction, an industrial M23 connector on the servo motor side, and a free end on the servo drive side, ensuring secure and efficient electrical connection in automation systems.
Manufacturer: SCHNEIDER
Type: Power Cable
Model: VW3M5102R200
Part No.: 920738

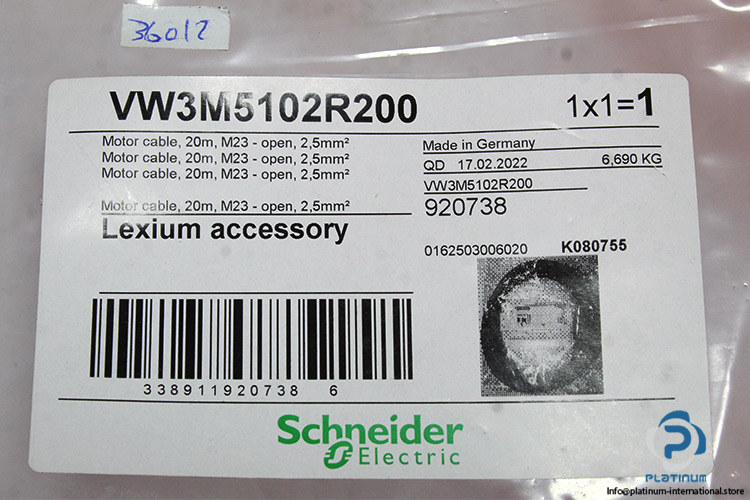

Code: 0162503006020 k080755 / 14335659
Serial No.: 338911920738 6

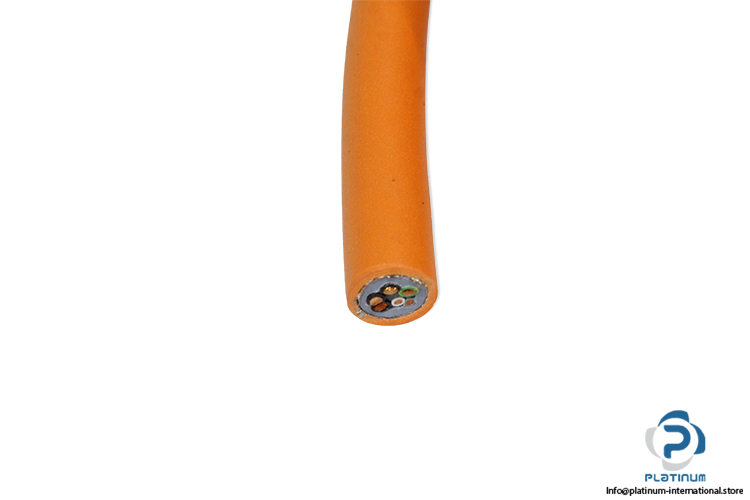

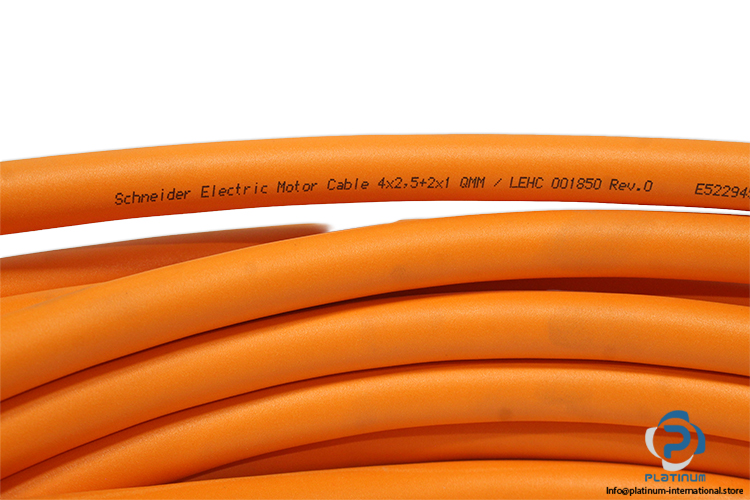

Cable Composition:
4 × 2.5 mm² + 2 × 1 mm²
Power Cable Application:
Between servomotor BSH and servodrive (4 × 2.5 mm²)
Product Compatibility:
Servo Motor BMH, 2 5.5 in (140 mm)
Servo Motor BMH, 3 5.5 in (140 mm)
Accessory / Separate Part Destination:
Between Servo Motor and Servo Drive
Range Compatibility:
Lexium 32
Lexium 05
Electrical Connection:

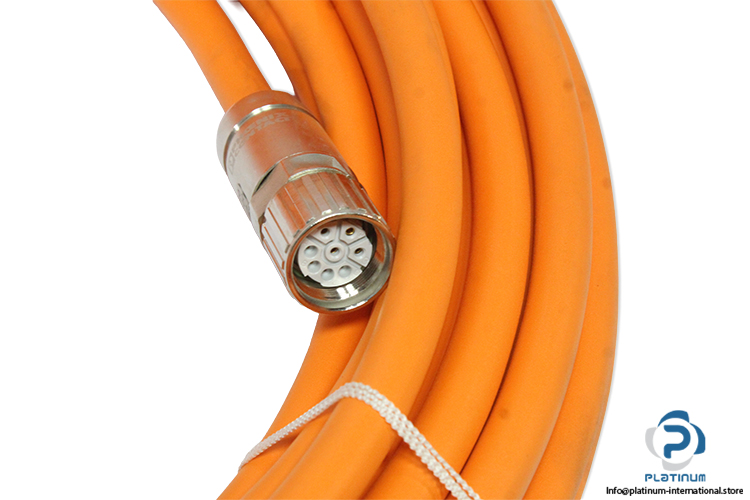

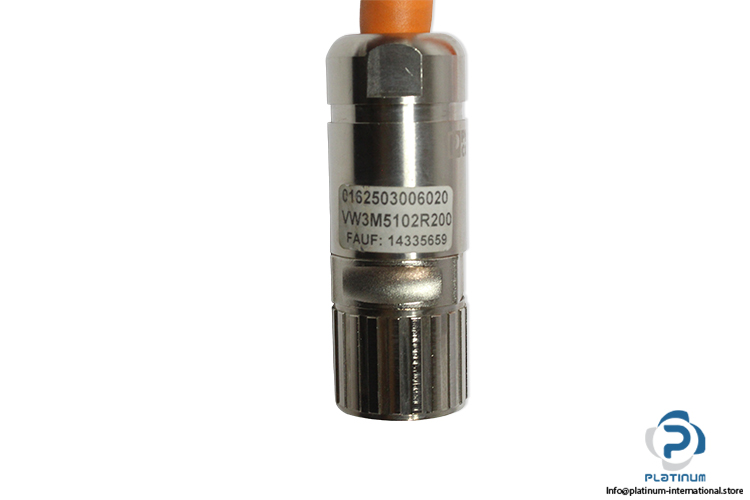

Connector “ Industrial M23, Servo Motor Side
Free End “ Servo Drive Side
| Cable Length | 20 m |
| Connector 1 | 8-Pins, Female |
| Thread Size | M23 |

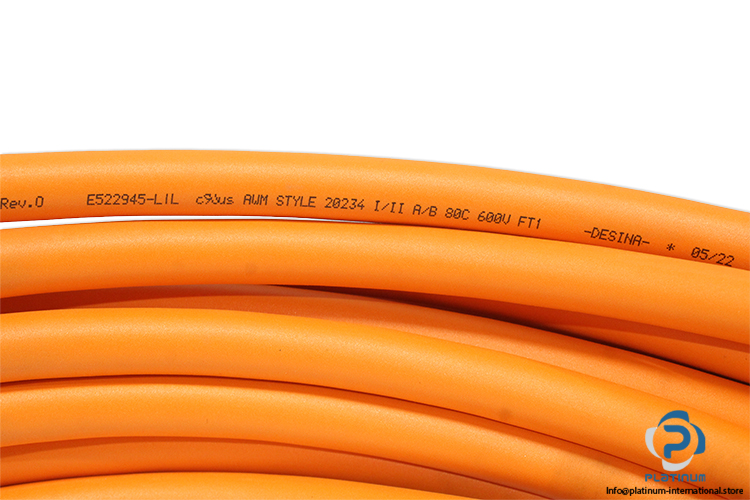

| Cable Information | AWM STYLE 20234, 80 °C, 600 V |
| Product Or Component Type | Power Cable |
| Accessory / Separate Part Type | Preassembled Power Cordset |
| Accessory / Separate Part Category | Connection Accessories |
