Schneider XPSAC3421 Emergency Stop
Schneider Emergency Stop (Model: XPSAC3421) with 115 V AC supply voltage, 7 VA power consumption, and relay instantaneous opening. IP20/IP40 protection for reliable emergency stop functionality in industrial systems.

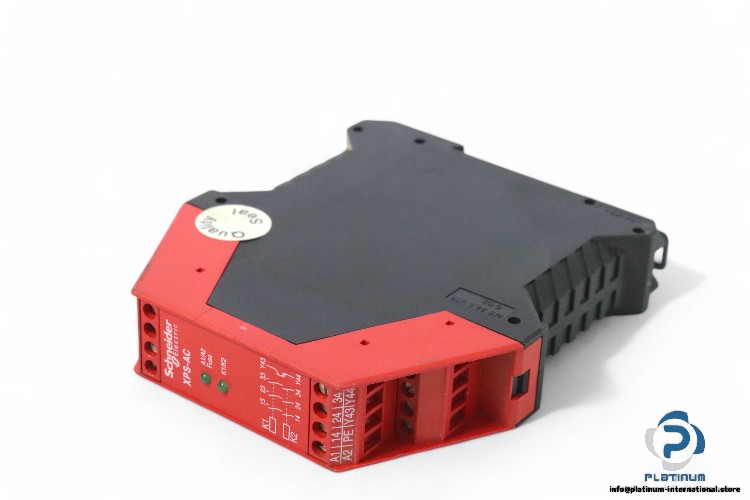

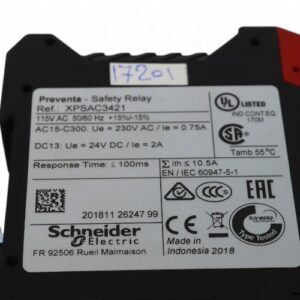

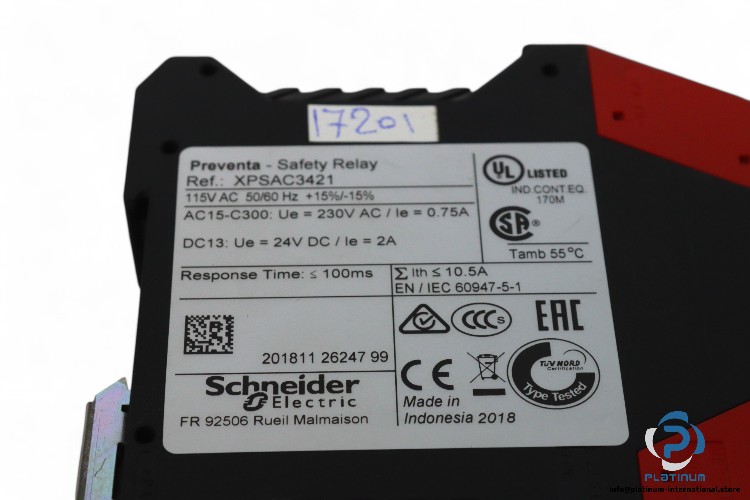

Schneider Emergency Stop (Model: XPSAC3421)
The Schneider Emergency Stop (Model: XPSAC3421) is designed for safety applications requiring reliable emergency stop functionality. With a supply voltage of 115 V AC and an operating frequency of 50/60 Hz, this model offers maximum power consumption of 7 VA AC. It features a control circuit voltage of 115 V and a breaking capacity of 230 VA holding AC-15 C300 relay output at 0.75 A. The relay output supports 2 A at 24 V (DC-13), with a time constant of 50 ms. The rated insulation voltage is 300 V, with an impulse withstand voltage of 4 kV.
- Manufacturer: Schneider
- Type: Emergency Stop
- Model: XPSAC3421
- Supply Voltage: 115 V AC
- Supply Frequency: 50/60 Hz
- Maximum Power Consumption: 7 VA AC
- Control Circuit Voltage: 115 V
- Breaking Capacity: 230 VA holding AC-15 C300 relay output, 0.75 A
- Rated Insulation Voltage: 300 V
- Rated Impulse Withstand Voltage: 4 kV
- Conventional Free Air Thermal Current: 10.5 A
- Minimum Output Voltage: 16 V
- Output Type: Relay instantaneous opening, 3 NO circuit(s), volt-free
- Maximum Response Time: 100 ms
- Additional Circuits: 1 solid-state output
- IP Degree of Protection: IP20 / IP40
- Temperature Range: -10 / 55 °C
