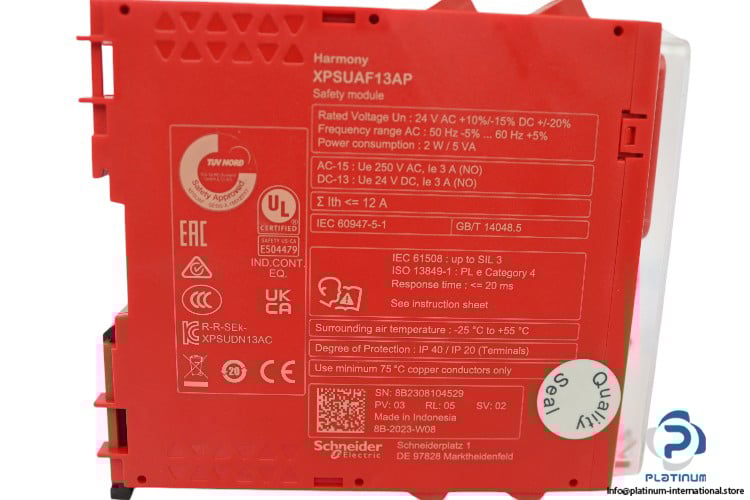

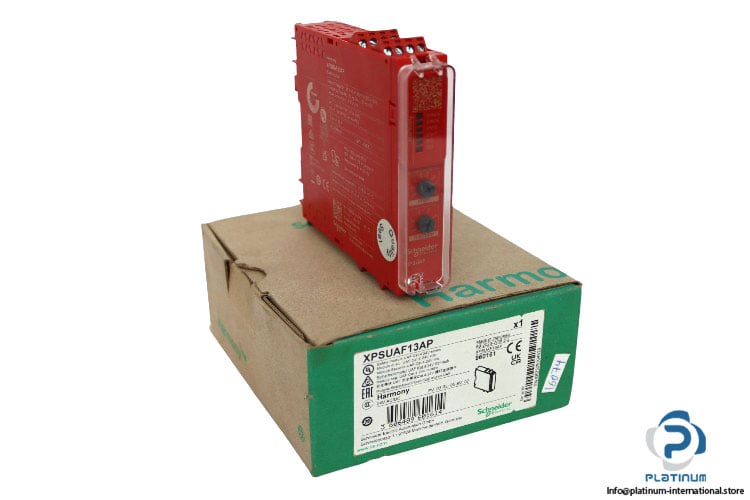

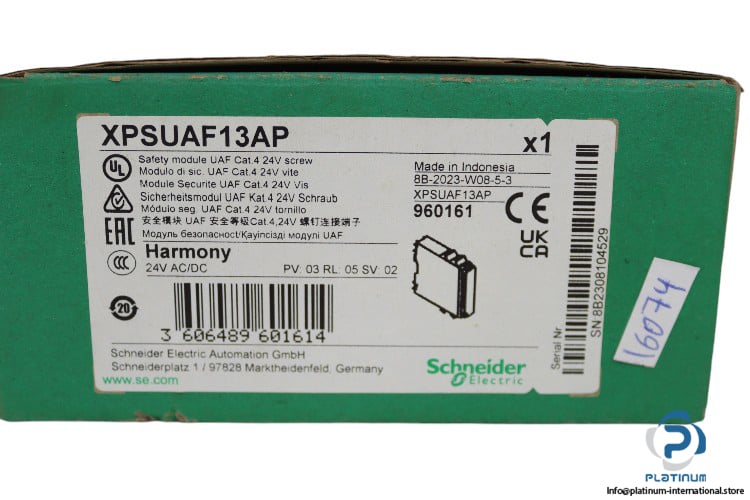

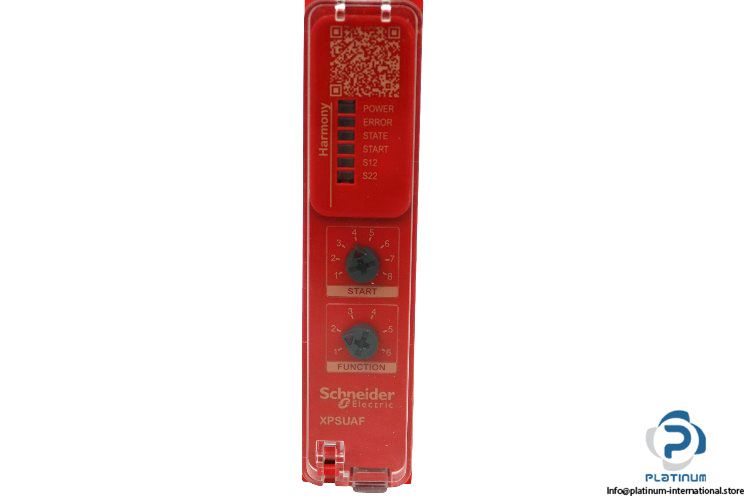

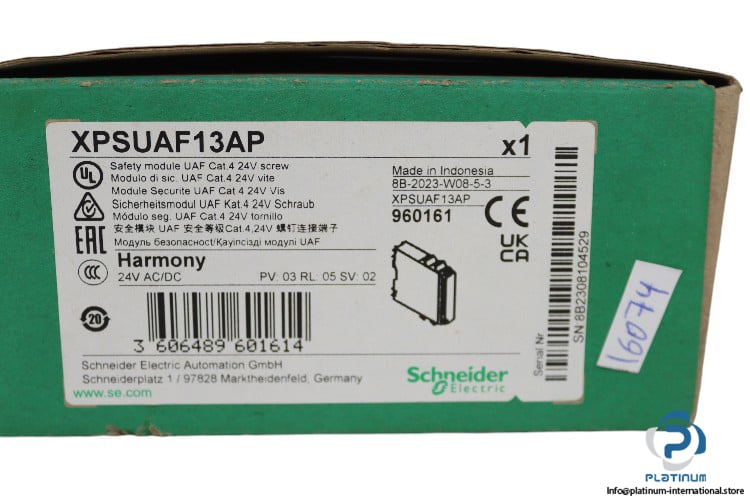

Schneider XPSUAF13AP Safety Relay

Manufacturer: SCHNEIDER
Type: Safety Relay
Model: XPSUAF13AP

Range: Harmony Safety Automation
Safety Module Name: XPSUAF
Application: for Emergency Stop, Guard and Light Curtain Monitoring
Rated Supply Voltage: 24 V AC / DC
Frequency: 50 … 60 Hz
Rated Operational Ratings:
AC15: 230 V, 3 A
DC13: 24 V, 3 A
Power Consumption Max.: 2 W / 5 VA
Rated Thermal Current: 12 A
Line Resistance: 500 Ohm
Safety Inputs: 2 (24 V DC, 5 mA)

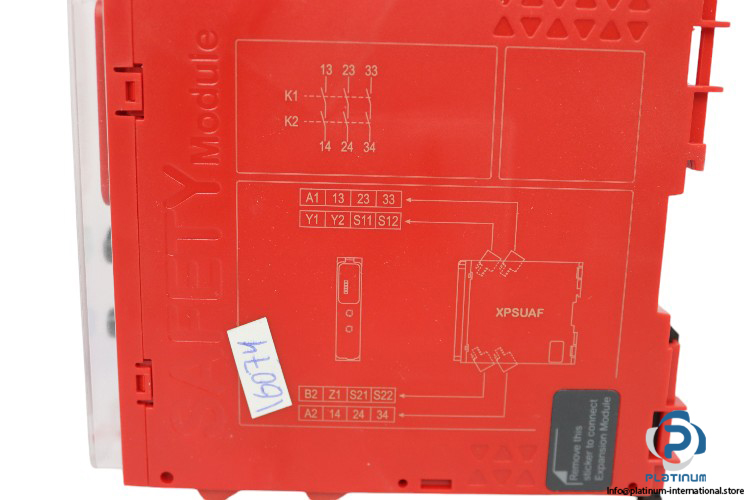

Contact: 3-Pole 3 Normally Open (NO)
Protection Class: IP40
Ambient Temperature: -25 … 55 °C
Dimensions: 100 x 22.5 x 120 mm
