Schunk GSM-P-32-AS-E-90 Rotary Gripping Module
Rotary Gripping Module
Schunk GSM P 32 rotary gripping module with integrated parallel gripper, fast closing time, and precise pneumatic swivel movement.Schunk GSM P 32 AS E 90 Rotary Gripping Module

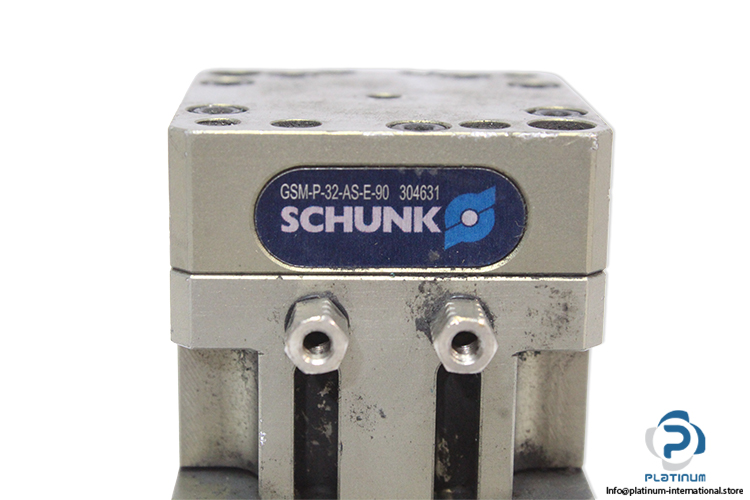

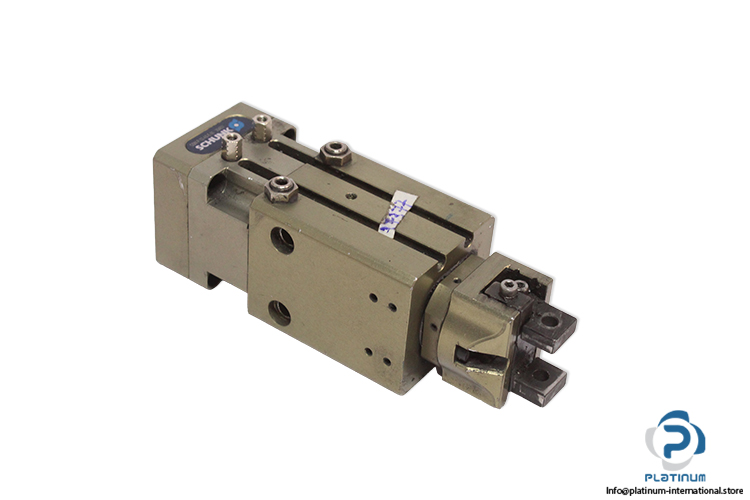

The Schunk GSM P 32 AS E 90 is a high-precision rotary gripping module combining a pneumatic swivel unit with an integrated parallel gripper. Designed for compact automation systems, this module enables reliable gripping and precise rotary movement in a single unit, making it ideal for handling, assembly, and pick-and-place applications. Manufacturer: Schunk
Type: Rotary Gripping Module with Parallel Gripper
Model: GSM P 32 AS E 90
ID No.: 304631
Recommendation:
This Schunk rotary gripping module is ideal for compact automation systems requiring combined gripping and rotary motion in a single device. For enhanced positioning accuracy and process monitoring, it is recommended to integrate this module with reliable Sensors. Platinum International also offers advanced Servo Motors to support coordinated motion control and complete automation solutions.
| Stroke per Jaw | 4 mm |
| Closing Force | 51 N |
| Air Consumption (Gripping) | 4.0 cm³ |
| Air Consumption (Swiveling) | 9.0 cm³ |
| Nominal Operating Pressure | 6.0 bar |
| Max. Operating Pressure | 6.5 bar |
| Min. Operating Pressure (Gripping) | 4.0 bar |
| Min. Operating Pressure (Swiveling) | 3.5 bar |
| Closing Time | 0.03 s |
| Max. Permissible Finger Length | 32.0 mm |
| Protection Degree | IP30 |
| Ambient Temperature | 5 to 90 °C |
| Length | 40.0 mm |
| Width | 47.0 mm |
| Height | 112.5 mm |
