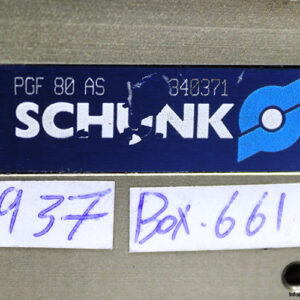

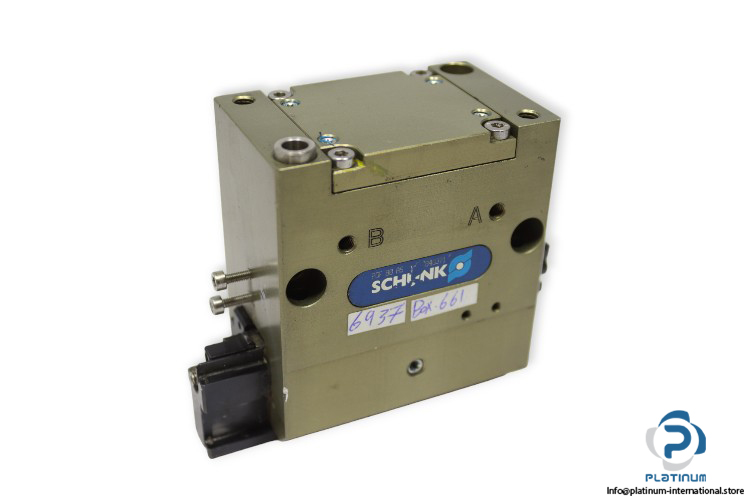

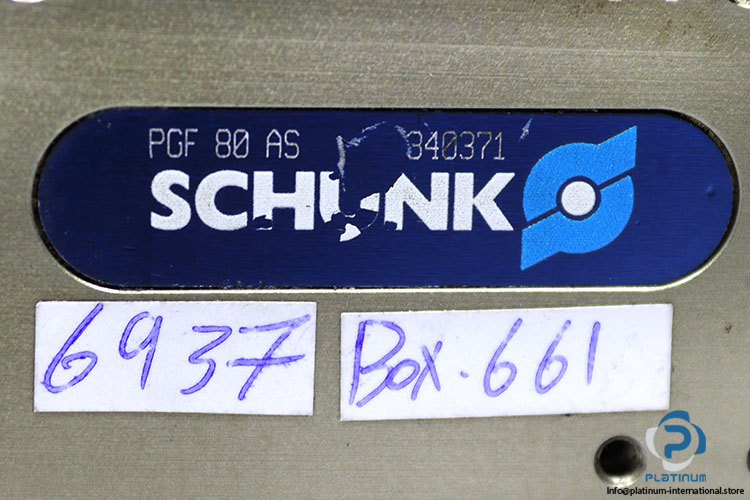

Schunk PGF 80 AS Universal Gripper

Manufacturer: SCHUNK
Type: Universal Gripper
Model: PGF80AS
ID No.: 340371

Stroke Per Jaw: 16.5 mm
Closing Force: 760 N
Min. Spring Force: 200 N
Cylinder volume per double stroke: 77 cm³
Min. Operating Pressure: 4 bar
Max. Operating Pressure: 6.5 bar
Closing time: 0,08 s
Opening Time: 0,14 s
Max. permissible weight per finger: 0.75 Kg
Max. axial force Fz max: 1200 N
Ambient Temperature: 5 … 90 °C
