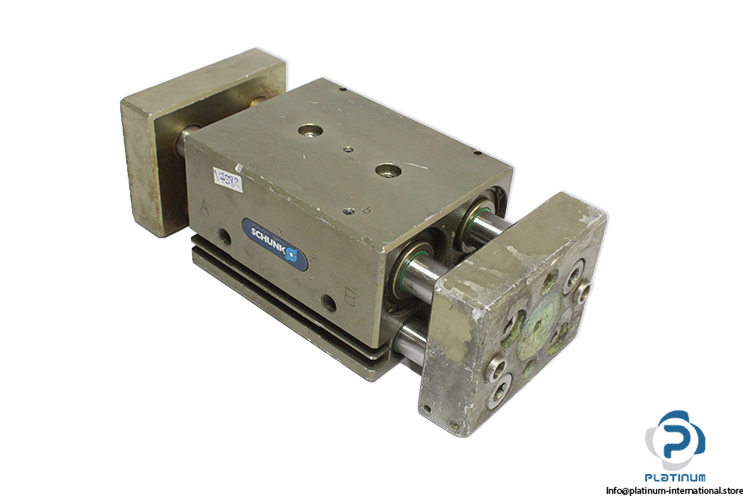

Schunk PSH-42-1 Long-Stroke Gripper
Long-Stroke Gripper
Schunk PSH-42-1 long-stroke gripper with high gripping force, fast response, and IP67 protection for industrial automation and robotic handling.Schunk PSH-42-1 Long-Stroke Gripper
A high-performance long-stroke gripper engineered by Schunk for reliable gripping, handling, and positioning tasks in advanced industrial automation systems. Designed for demanding environments, this gripper delivers high gripping forces, precise motion, and durable operation with full IP67 protection. Manufacturer: Schunk
Type: Long-Stroke Gripper

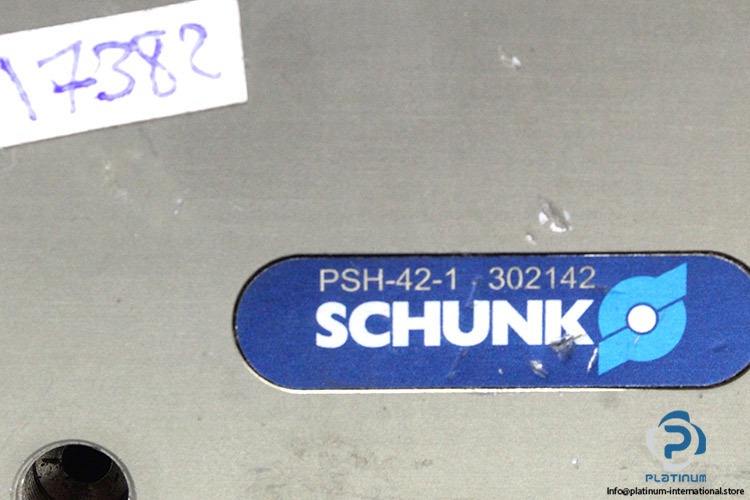

Model: PSH-42-1
ID No.: 302142
Recommendation:
This Schunk long-stroke gripper is ideal for robotic handling, assembly automation, and high-precision gripping applications. For enhanced control, monitoring, and system reliability, it is strongly recommended to integrate this gripper with high-quality Sensors for position feedback and automation safety. For complete motion and automation solutions, Platinum International also offers a wide selection of Servo Motors suitable for robotic and industrial motion systems.
| Stroke per Jaw | 50 mm |
| Closing Force | 1170.0 N |
| Opening Force | 1170.0 N |
| Closing Force (Finger Length 0 mm) | 1350.0 N |
| Cylinder Volume per Double Stroke | 255.0 cm³ |
| Minimum Operating Pressure | 3.0 bar |
| Maximum Operating Pressure | 8.0 bar |
| Closing Time | 0.25 s |
| Maximum Permissible Finger Length | 230.0 mm |
| Protection Degree | IP67 |
| Ambient Temperature | 5 to 90 °C |
| Length | 232.0 mm |
| Width | 97.0 mm |
| Height | 77.0 mm |
| Connection | G 1/8 |
