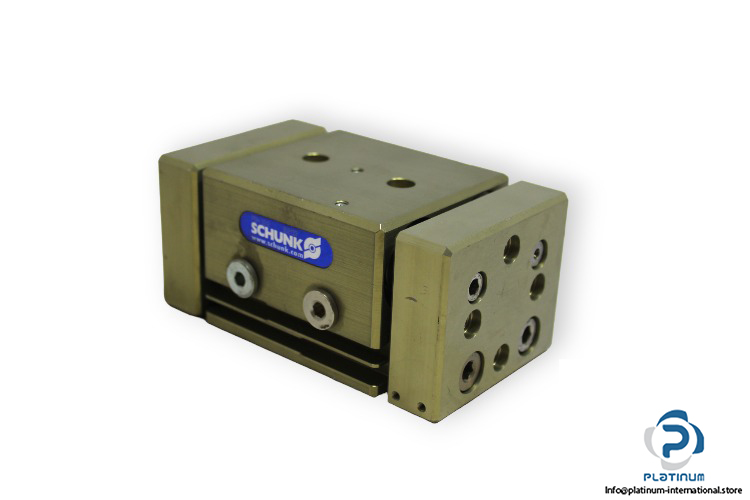

Schunk PSH 32/2 Long-Stroke Gripper

Manufacturer: SCHUNK

Type: Long-stroke gripper

Part No.: 0302133

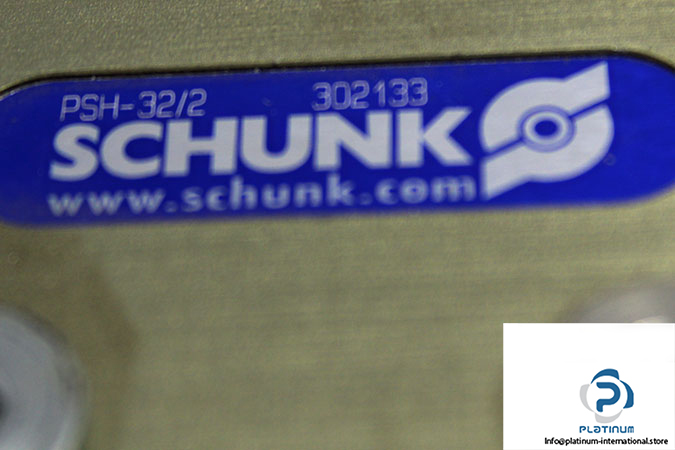

Model: PSH 32/2

Size: 32

pneumatic, Stroke per jaw: 22.5 mm

Closing force: 750 N

Opening force: 750 N

id consumption double stroke: 65 cm³

Min. operating pressure: 3 bar

Max. operating pressure: 8 bar

Nominal operating pressure: 6 bar

Closing time: 0.12 s

Opening time: 0.12 s

Max. permissible finger length: 170 mm

Max. permissible weight per finger: 1.5 kg

IP protection class: 67

Max. ambient temperature: 90 °C
