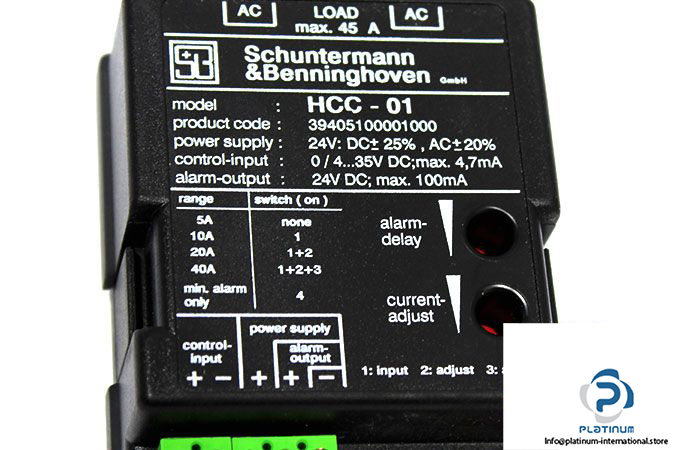

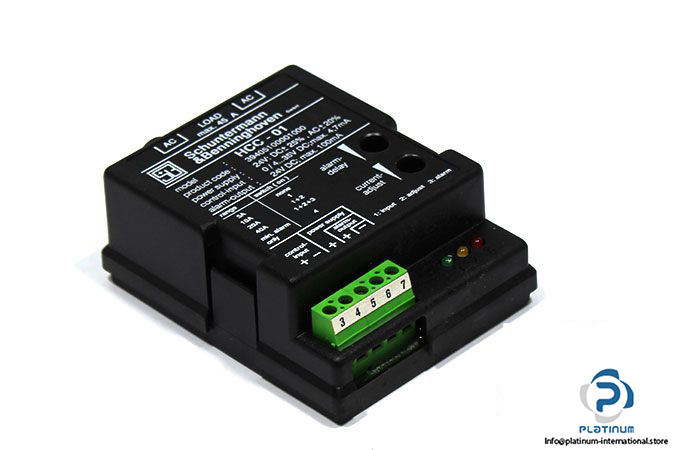

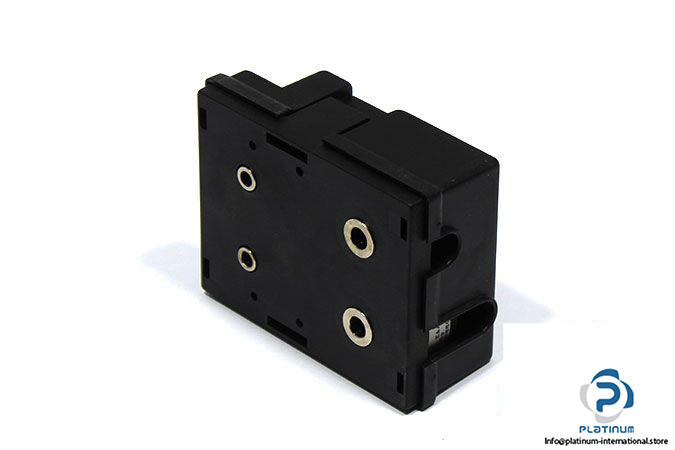

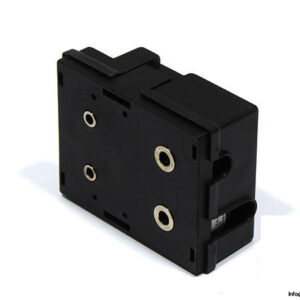

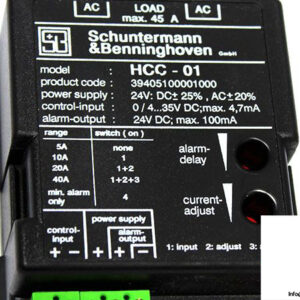

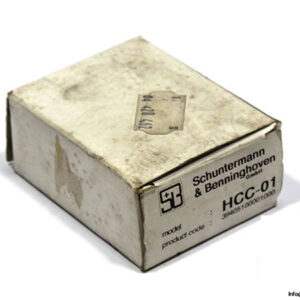

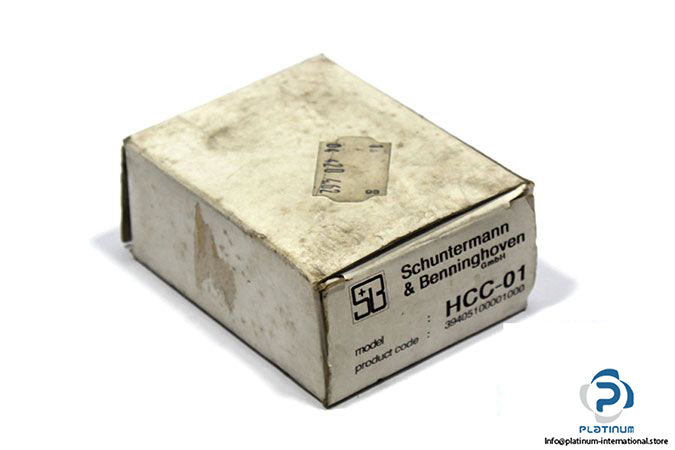

SCHUNTERMANN & BENNINGHOVEN HCC-01 HEATING CURRENT AND CIRCUIT MONITORING MODULE

Manufacturer: Schuntermann &Benninghoven

Type: Heating Current and Circuit Monitoring Module

Model: HCC-01

Code: 39405100001000

Auxiliary Supply: 24 V AC/DC

Input Current: Typically, 25 mA (Without Alarm Load)

Control Input: 0/4…35 VDC; Max. 4.7 mA

Alarm Output: 24 VDC; Max. 100 mA

Mains Frequency: 50/60 Hz

Monitoring Setpoint: Set by Trimmer

Alarm Response Delay: 2…40 sec Set by Trimmer

Cycle Time: ≥ 1 sec

Operating Temperature: 0…60 °C

Protection Class: IP20

Dimensions: 67 x 85 x 36 mm

Weight: 0.16 kg
