Seeka GMR2RSPN Polarized Retro-Reflective Sensor
Used
In stock1 unitReady to ship
Polarized Retro-Reflective Sensor
Industrial PNP retro-reflective sensor with 1.5 m sensing range, selectable Light ON / Dark ON mode, IP67 protection, and 12“24 V DC operation.12-24VAutomationdcGMR2RSPNIndustrialIP67OpticalPhotoelectricPNPpolarizedReflectiveretroSeekaSensorTakex
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

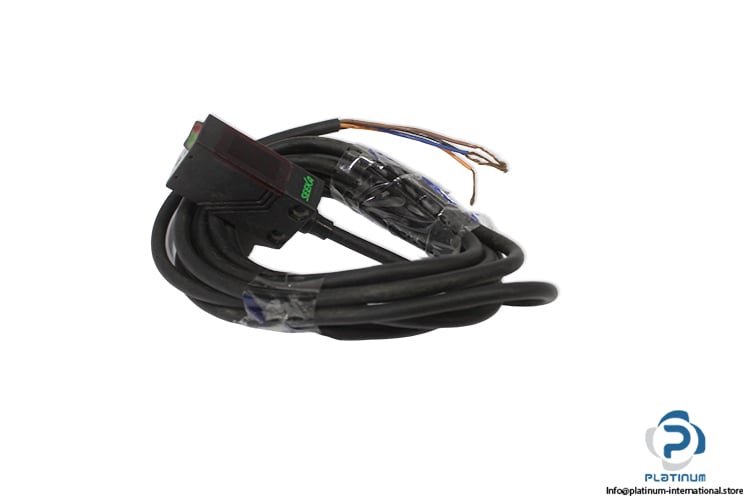

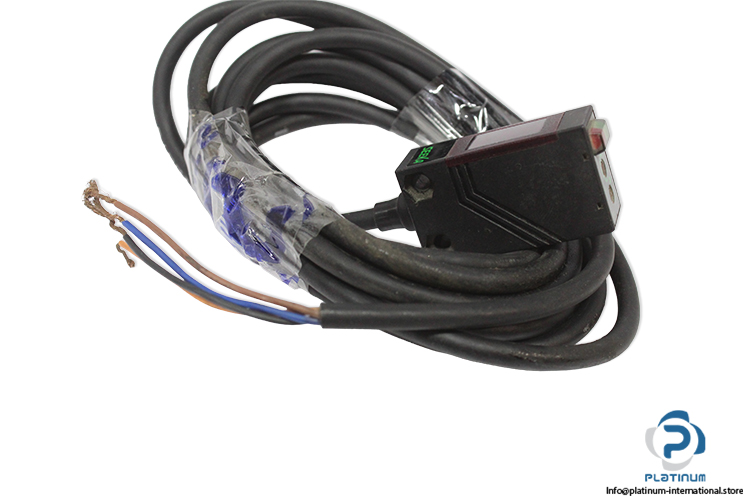

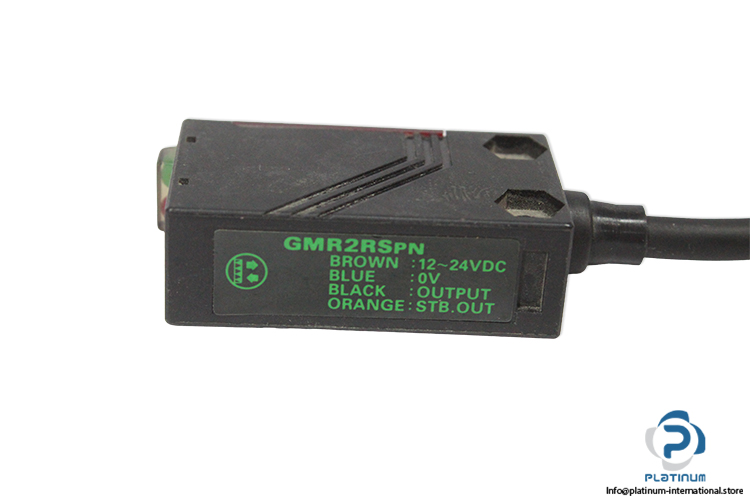

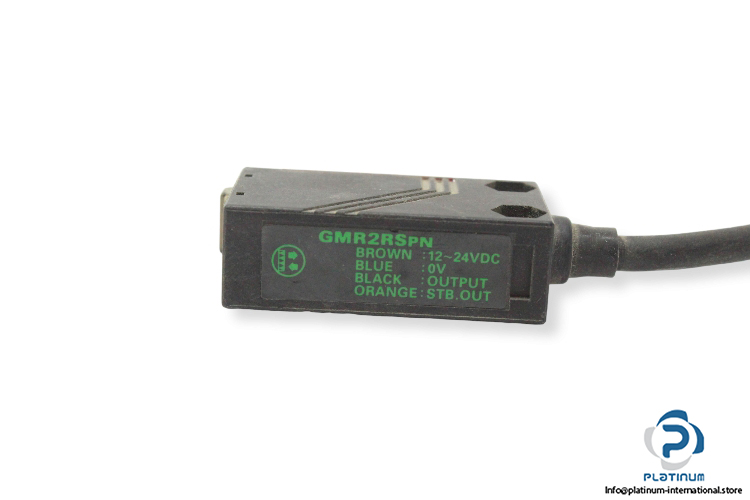

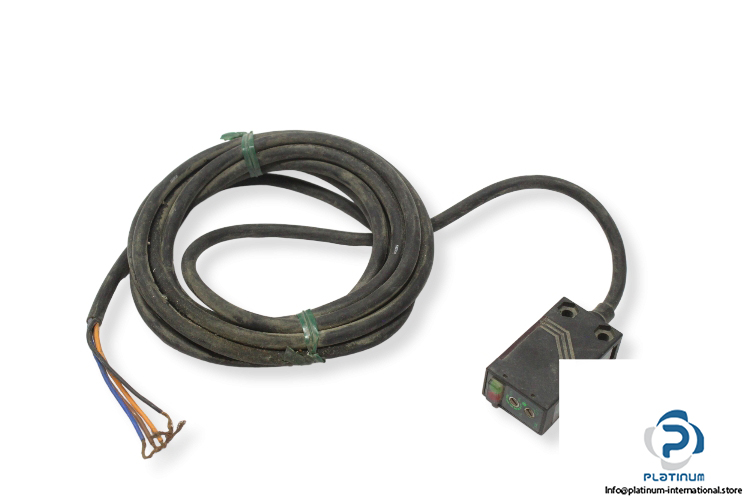

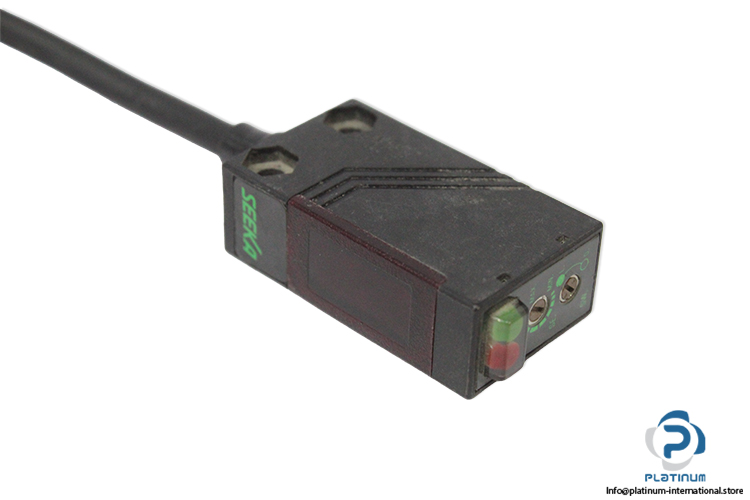

SEEKA TAKEX GMR2RSPN Polarized Retro-Reflective Sensor
The SEEKA TAKEX GMR2RSPN polarized retro-reflective sensor is designed for precise object detection in industrial automation systems. With selectable Light ON / Dark ON operation and PNP output configuration, it ensures reliable performance in demanding environments.
Manufacturer: SEEKA TAKEX
Type: Polarized Retro-Reflective Sensor
Model: GMR2RSPN
| Sensing Range | 0.03 “ 1.5 m |
| Light Source | Red LED |
| Wavelength of Transmission | 700 nm |
| Operating Voltage | 12 “ 24 V DC |
| Rated Current Consumption (Max.) | 35 mA |
| Contact Type | PNP Normally Open (NO) |
| Output Current | 100 mA |
| Operation Mode | Light On / Dark On Selectable (Switch) |
| Operating Angle | 30° (at Reflector) |
| Connection | Cable 2 m |
| Material | Polyacrylate |
| Lens Material | Acrylic |
| Protection Class | IP67 |
| Ambient Temperature | -25 “ 55 °C |
