Takex GMR2RSPNN-J Polarized Retro-Reflective Sensor
New
In stock1 unitReady to ship
100,00$
Polarized Retro-Reflective Sensor
TAKEX polarized retro-reflective sensor with 0.03“1.5 m sensing range, PNP NO output, selectable Light On / Dark On operation, IP67 protection, and M8 4-pin connector.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

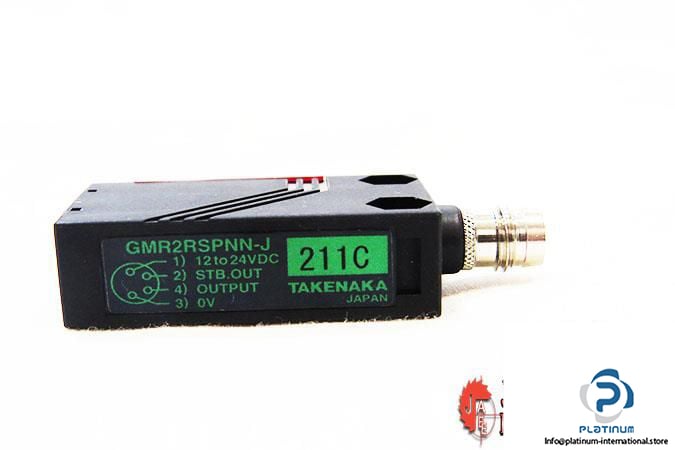

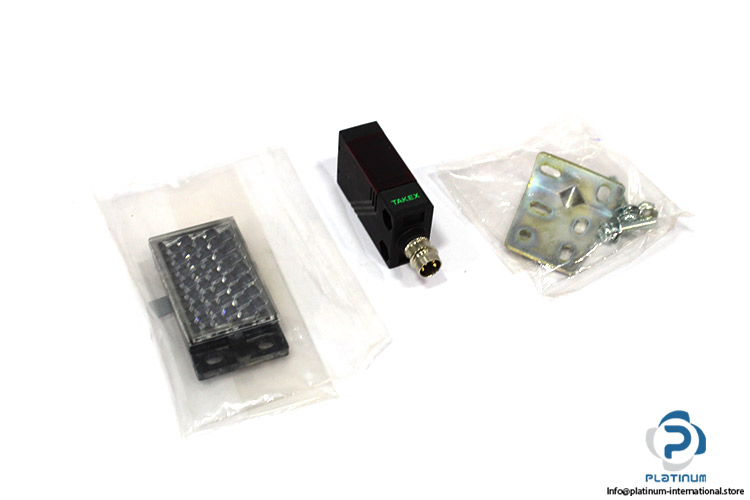

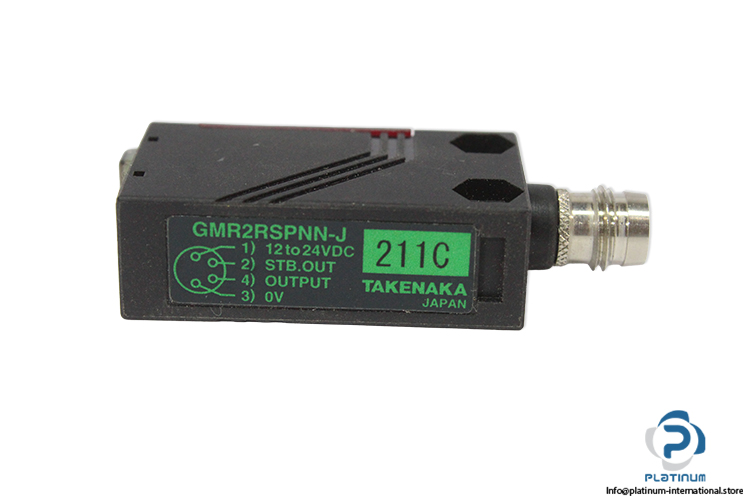

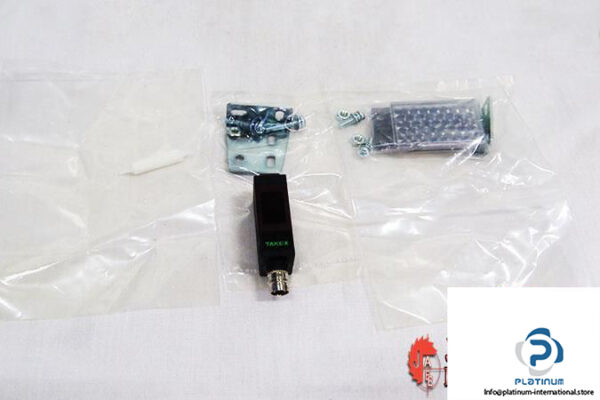

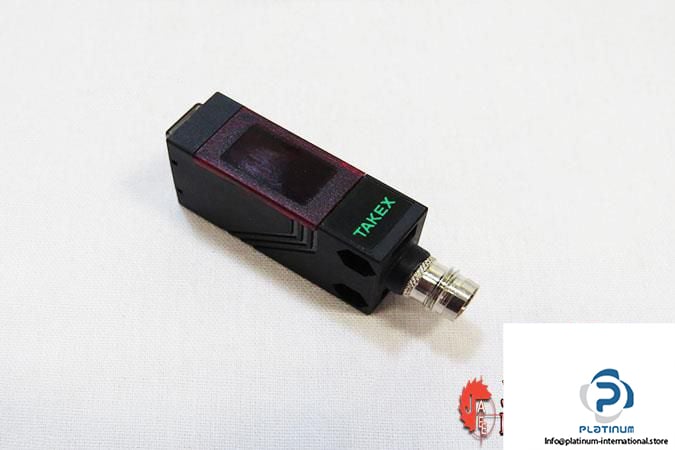

TAKEX GMR2RSPNN-J Polarized Retro-Reflective Sensor
The TAKEX GMR2RSPNNJ is a polarized retro-reflective sensor designed for precise object detection in industrial automation systems. Featuring a red LED light source and selectable Light On / Dark On operation, it ensures reliable performance in various sensing applications.
Manufacturer: TAKEX
Type: Polarized Retro-Reflective Sensor
Model: GMR2RSPNN-J
| Sensing Range | 0.03 “ 1.5 m |
| Light Source | Red LED |
| Wavelength Of Transmission | 700 nm |
| Operating Voltage | 12 “ 24 V DC |
| Rated Current Consumption (Max.) | 35 mA |
| Contact | PNP Normally Open (NO) |
| Output Current | 100 mA |

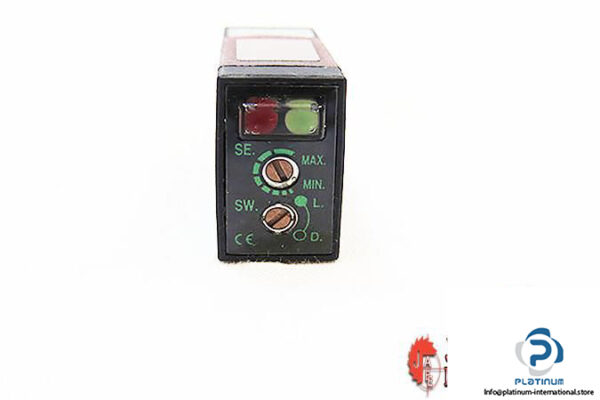

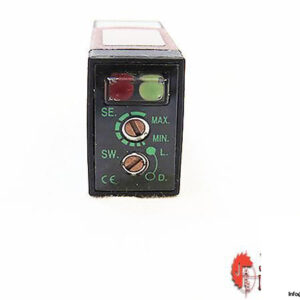

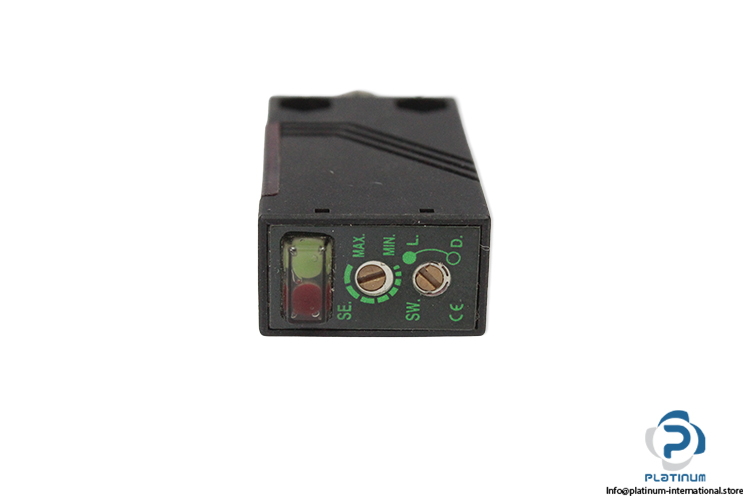

| Operation Mode | Light On / Dark On Selectable (Switch) |
| Operating Angle | 30° (At Reflector) |

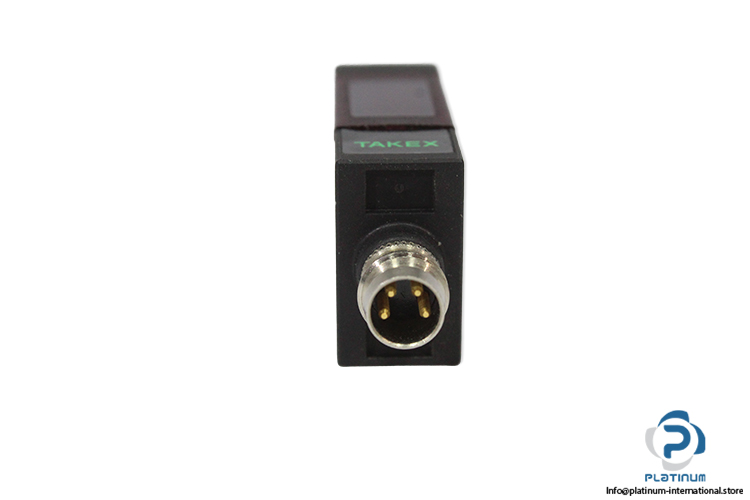

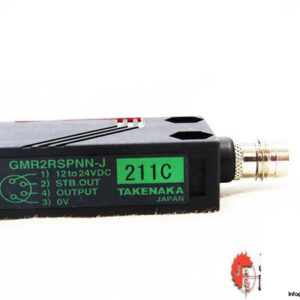

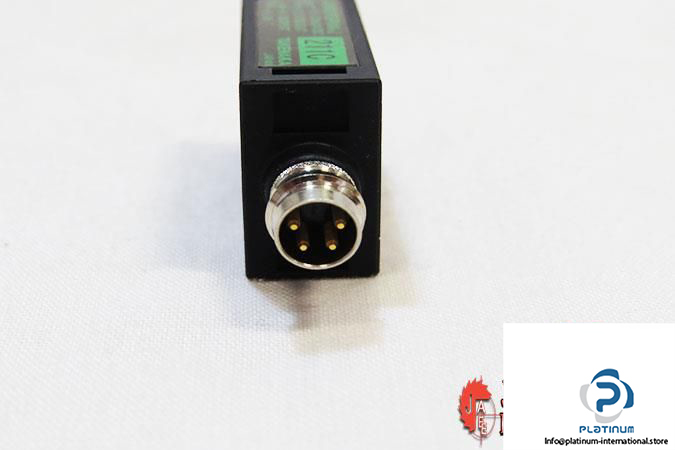

| Connection | Connector M8x1 Male, 4-Pin |
| Material | Polyacrylate |
| Lens Material | Acrylic |
| Protection Class | IP67 |
| Ambient Temperature | -25 “ 55 °C |
