Takex MC-U2RTC Through Beam Sensor
Used
In stock1 unitReady to ship
Mark Through Beam Sensor
U-shaped mark through beam sensor with dual NPN/PNP output, selectable Light ON/Dark ON modes, and IP67 protection for industrial automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

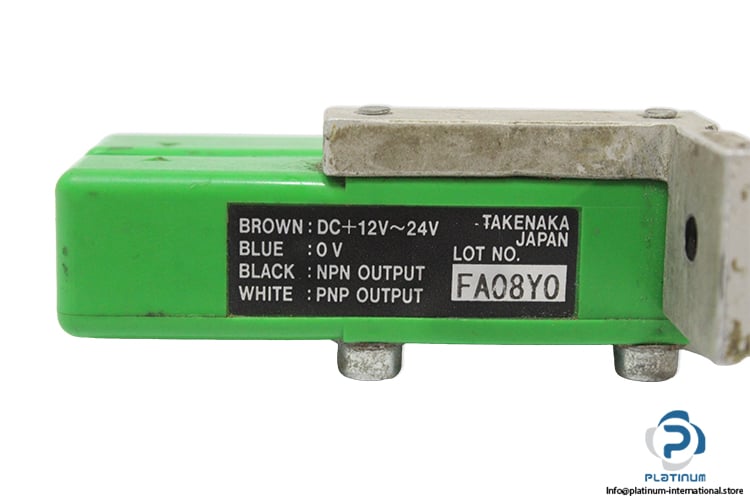

TAKEX MC-U2RTC U-Shaped Mark Through Beam Sensor
The TAKEX MCU2RTC is a compact U-shaped mark through beam sensor designed for precise detection in industrial automation applications. With selectable Light ON / Dark ON operation and dual NPN/PNP output, it delivers flexible integration and reliable performance in demanding environments.
Manufacturer: TAKEX
Type: U-Shaped Mark Through Beam Sensor
Model: MC-U2RTC
| Detection Distance | 2 mm |
| Operating Voltage | 12 / 24 V DC |
| Current Consumption (Max.) | 22 mA |
| Switching Output | NPN / PNP Dual Output |
| Sink Output Current | 100 mA |
| Operation Mode | Light ON / Dark ON Selectable |
| Light Source | Red LED (680 nm) |
| Electrical Connection | Cable |
| Material | ABS Resin |
| Lens Material | Glass |
| Protection Class | IP67 |
| Operating Temperature | -25 to 55 °C |
| Dimensions | 32 x 18 x 75 mm |
