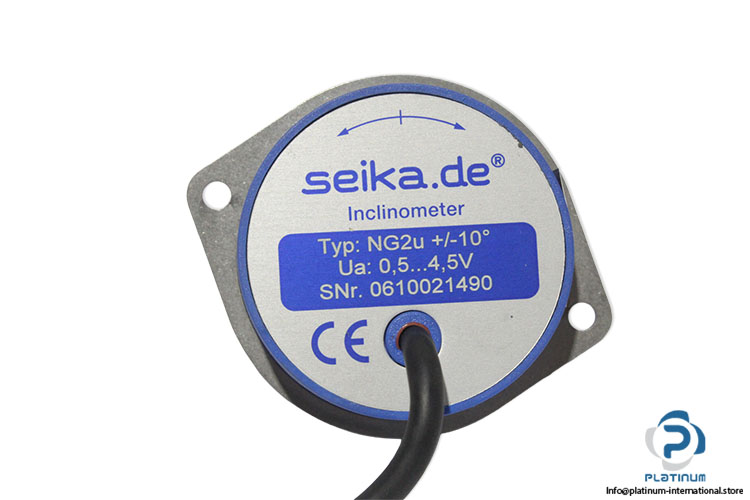

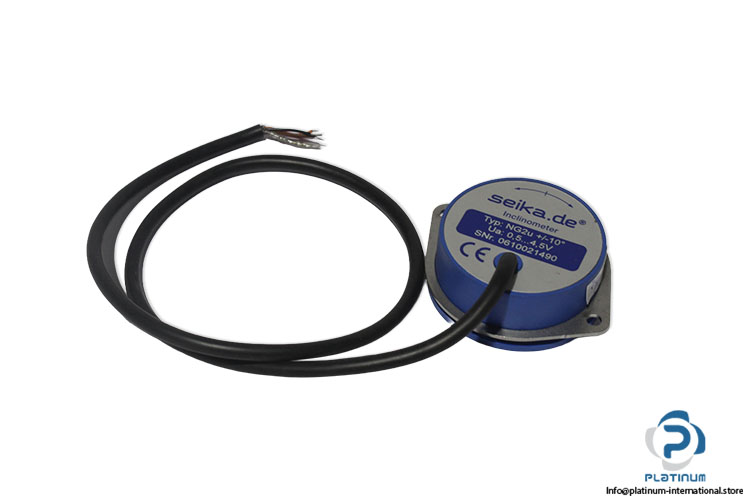

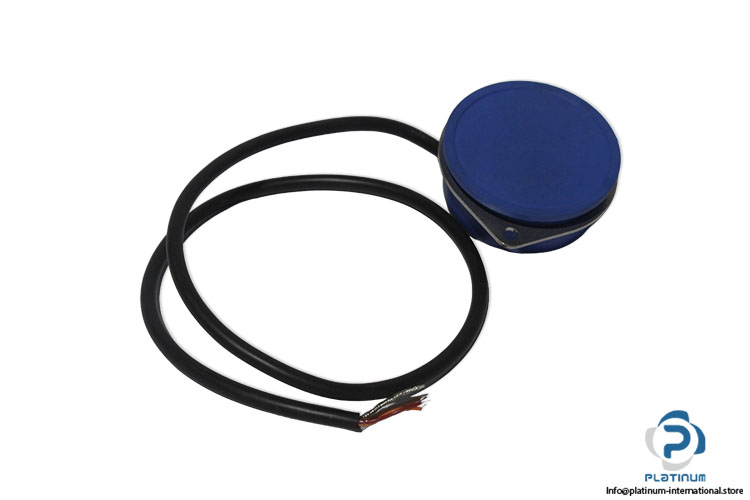

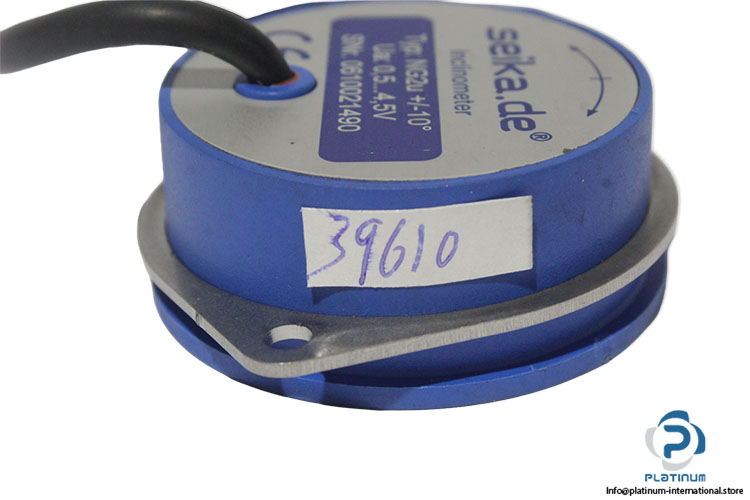

Seika NG2U +/-10 Inclinometer
New
In stock1 unitReady to ship
Inclinometer SEIKA NG2U ±10 high-accuracy inclinometer with 0.001° resolution, integrated 0.5–4.5 V signal conditioning, and IP65 protection for precise industrial inclination measurement.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| SNr. | 0610021490 |
| Inclinometer of high measuring accuracy with an integrated | 0.5V ... 4.5V signal conditioner for inclination measurement in the ranges of ±10, ±30 and ±80 degrees |
| Measuring Range | ±10 degrees |
| Resolution | 0.001 degrees |
| Standard Sensitivity | 200 mV / degree |
| Linearity Deviation | 0.1% of full scale |
| Output Voltage @ Zero Offset | 2.5 Volts |
| Supply Voltage | 9V to 30V DC |
| Current Consumption | 5 mA |
| Settling / Response Time | 0.3 seconds |
| Protection Rating | IP65 (Hermetically sealed) |
| Operating Temperature | -40°C to +85°C |

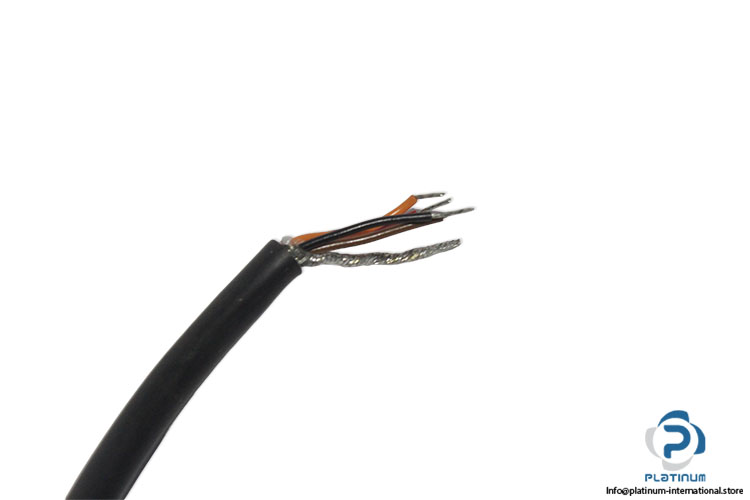

| Connection | Cable |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101027 |
| Weight | 0,14 |
