Setra 268 Pressure Transmitter
New
In stock2 unitsReady to ship
Pressure Transmitter
SETRA 268 pressure transmitter with 0“2000 Pa range, 4“20 mA output, ±0.5% accuracy, and IP65 die-cast aluminum enclosure for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

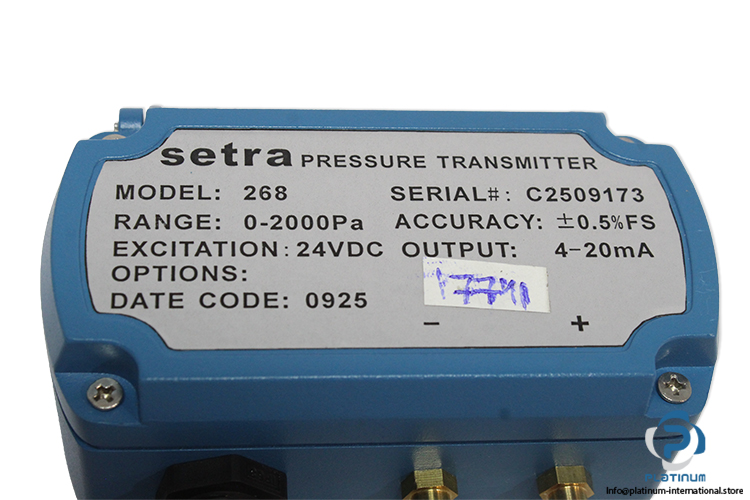

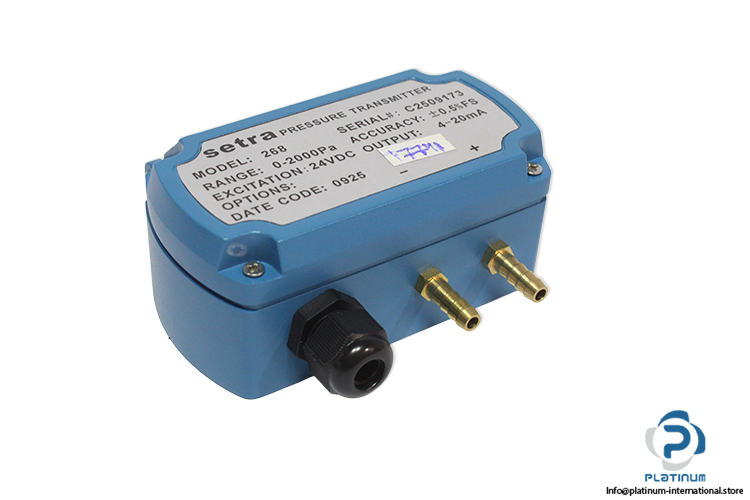

SETRA 268 Pressure Transmitter
The SETRA 268 is a high-accuracy pressure transmitter designed for precise low-pressure measurement in demanding industrial environments. It provides a stable 4“20 mA output and features a rugged IP65 die-cast aluminum enclosure for reliable long-term operation.
Manufacturer: SETRA
Type: Pressure Transmitter
Model: 268
Serial Number: C2509173
| Pressure Range | 0 “ 2000 Pa |
| Accuracy | ±0.5% Full Scale |
| Excitation / Supply Voltage | 24 VDC |
| Output Signal | 4 “ 20 mA |
| Compensated Range | +40 to +150 °F (+5 to +65 °C) |
| Case | IP65 Die-Cast Aluminum Enclosure |
| Electrical Connection | Screw Terminal Strip Inside of Case |
| Electrical Termination | PG-9 |
| Pressure Fittings | 3/16" O.D. Barbed Brass for 1/4" Push-On Tubing (Standard) |
| Mounting | 2 Mounting Tabs with 0.18" Holes |
| Application | Power Plant, Energy Management Systems, Orifice Plate Flow Measurement, Oven Pressurization, Furnace Draft |
