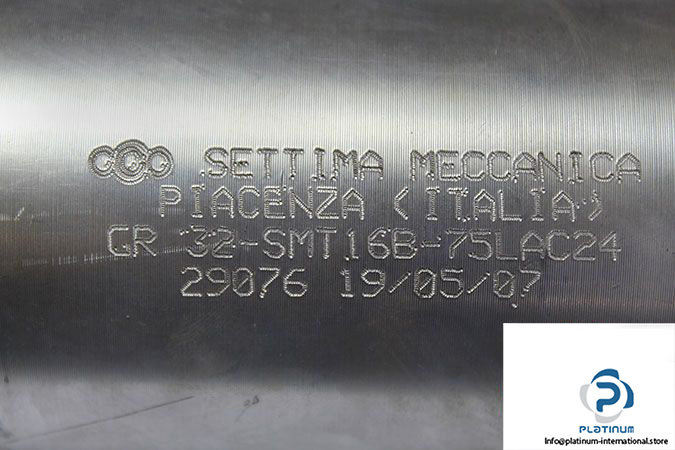

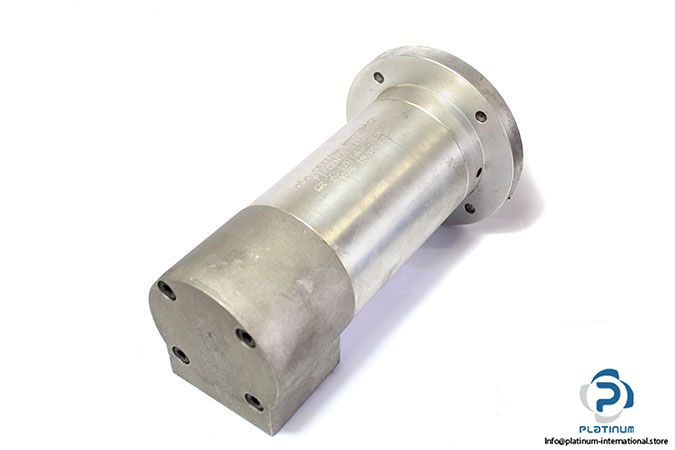

Settima Meccanica GR32 SMT16B 75LAC24 Screw Pump Medium Pressure
499,99$
Screw Pump
The Settima Meccanica GR32SMT16B75LAC24 is a medium-pressure screw pump designed for smooth and efficient fluid transfer. With 30.1 cm³ displacement, 40 bar pressure, and a 37 l/min flow rate, it offers stable performance across a wide viscosity and speed range for industrial systems.Settima Meccanica GR32SMT16B75LAC24 Screw Pump
The Settima Meccanica GR32SMT16B75LAC24 is a medium-pressure screw pump engineered for efficient, quiet, and reliable operation in demanding hydraulic and lubrication systems. Designed for smooth, pulsation-free flow and excellent efficiency across a wide speed and viscosity range, this model ensures stable performance in industrial environments.
Manufacturer: Settima Meccanica
Type: Screw Pump Medium Pressure
Model: GR32SMT16B75LAC24
Size: 32
Displacement: 30.1 cm³
Direction of Rotation: Clockwise
Speed Range: 500 / 3600 min»¹
Power Rate at 1450 rpm and 20 bar: 1.6 kW
Operating Pressure: 40 bar
Flow Rate at 1450 rpm and 20 bar: 37 l/min
Type Shaft: Female
Shaft Diameter: 24 mm
Viscosity Range: 6 / 400 mm²/s
More From SETTIMA MECCANICA
SETTIMA MECCANICA
Settima Meccanica GR40 SMT16B 150LE AC24 B5 V BB Screw Pump Medium Pressure
SKU: 965381
Qty: 2
SETTIMA MECCANICA
Settima Meccanica GR25 SMT16B 30LAC14B14VBB1401 Screw Pump Medium Pressure
SKU: 965382
Qty: 2
SETTIMA MECCANICA

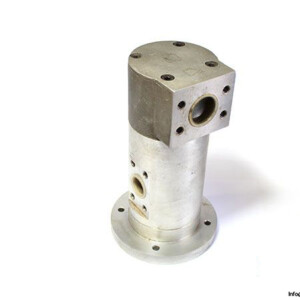

Settima Meccanica GR32 SMT16B 75LAC24B5R1DDTT0 Screw Pump Medium Pressure
