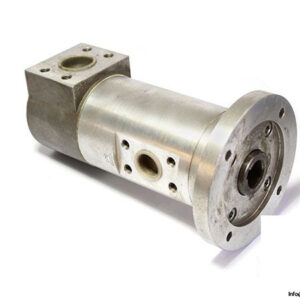

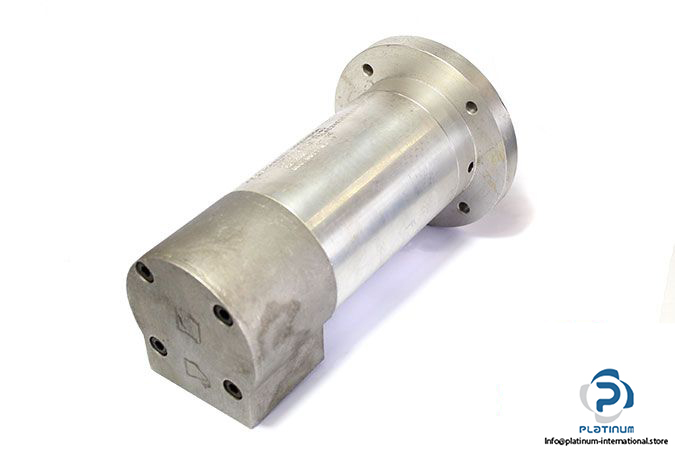

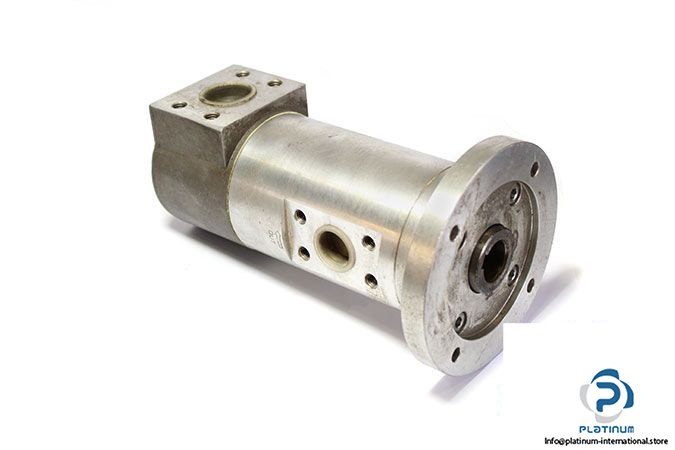

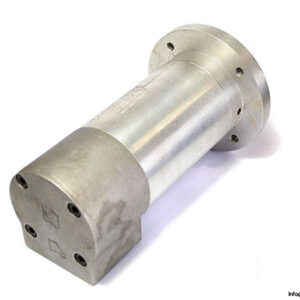

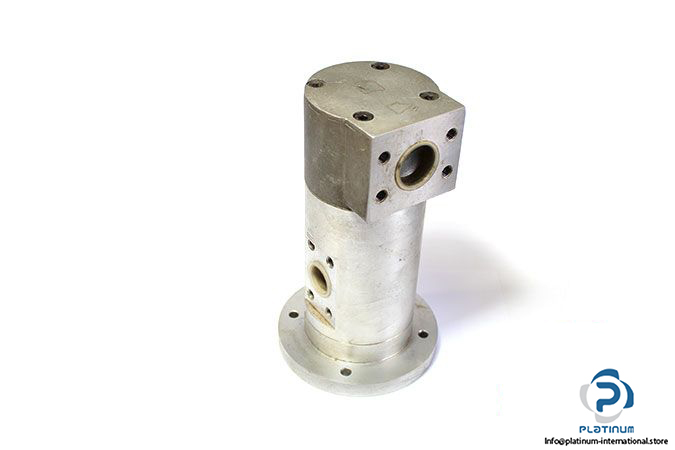

Settima Meccanica GR32 SMT16B 75LAC24B5R1DDTT0 Screw Pump Medium Pressure
599,99$
Screw Pump
The Settima Meccanica GR32SMT16B75LAC24B5R1DDTT0 medium-pressure screw pump delivers smooth, low-noise operation with high efficiency. Designed for industrial systems, it operates up to 40 bar and offers a flow rate of 37 l/min with a 30.1 cm³ displacement.Settima Meccanica GR32SMT16B75LAC24B5R1DDTT0 Screw Pump
The Settima Meccanica GR32SMT16B75LAC24B5R1DDTT0 is a medium-pressure screw pump engineered for high reliability and low-noise operation. Designed for hydraulic and lubrication systems, it provides consistent flow even under demanding industrial conditions, ensuring long service life and efficiency.
Manufacturer: Settima Meccanica
Type: Screw Pump Medium Pressure

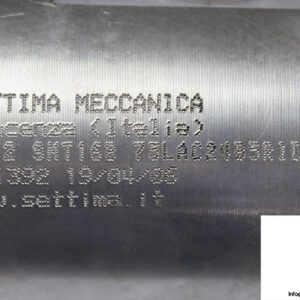

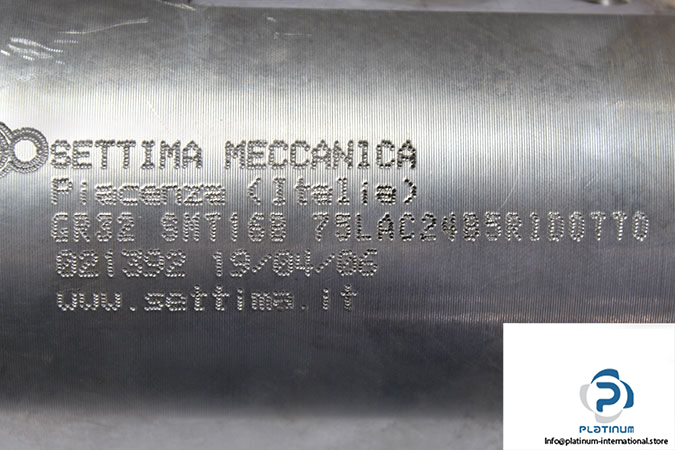

Model: GR32SMT16B75LAC24B5R1DDTT0
Size: 32
Displacement: 30.1 cm³
Direction of Rotation: Clockwise
Speed Range: 500 / 3600 min»¹
Power Rate at 1450 rpm and 20 bar: 1.6 kW
Operating Pressure: 40 bar
Flow Rate at 1450 rpm and 20 bar: 37 l/min
Type Shaft: Female
Shaft Diameter: 24 mm
Viscosity Range: 6 / 400 mm²/s
