SEW Bskf 202 CMP50S/KY/RH1M/SM1 Synchronous Servo Motor

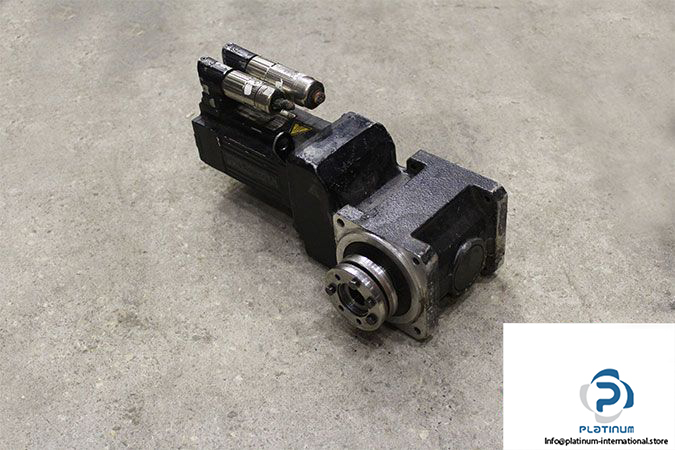

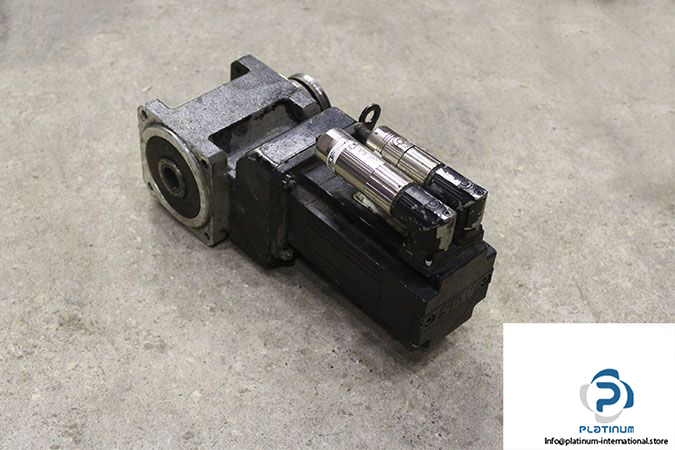

SEW-EURODRIVE BSKF 202 CMP50S/KY/RH1M/SM1 SERVOMOTOR WITH HELICAL-BEVEL GEAR UNIT

This high-efficiency permanent magnet synchronous servomotor from SEW-Eurodrive is engineered for precise control and reliable torque output. Integrated with a robust helical-bevel gear unit, it ensures dependable performance in automation and motion control systems.

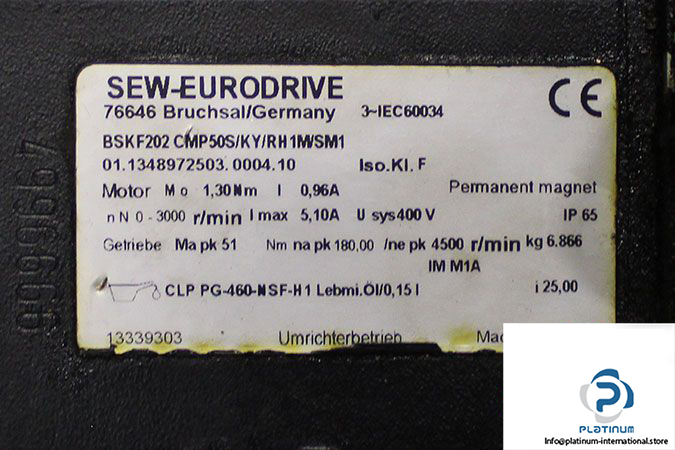

Manufacturer: SEW-Eurodrive
Type: Magnet Permanent Synchronous Servomotor
Model: BSKF 202 CMP50S/KY/RH1M/SM1
Part No.: 01.1348972503.0004.10
Ref No.: 13339303

Motor Technical Specifications

• Rated Voltage: 400 V
• Rated Current: 0.96 A
• Max. Current: 5.1 A
• Rated Speed: 3000 rpm
• Max. Torque: 5.2 Nm
• Static Torque: 1.3 Nm
• Maximum Permitted Motor Current (Short-Time Duty): 5.1 A
• Static Torque With Forced Cooling Fan: 1.7 Nm
• Standstill Current With Forced Cooling Fan: 1.7 A
• Standstill Current: 1.32 A
• Standard Braking Torque: 3.1 Nm
• Reduced Braking Torque: 4.3 Nm
• Shaft Diameter: 14 mm
• Flange Motor Size: 50 “ Short
• Thermal Class: F
• Protection Class: IP65

Gear Unit: BSKF 202 (Helical-Bevel Servo Gear Unit)

• Max. Permitted Output Torque (Short-Time Duty): 51 Nm
• Max. Permitted Output Speed (Short-Time Duty): 180 rpm
• Max. Permitted Input Speed (Short-Time Duty): 4500 rpm
• Transmission Ratio: 25
• Mounting Positions: M1A
• Lubrication: CLP PG-460-NSF-H1 Lebmi. Ó¦I/0,15I
