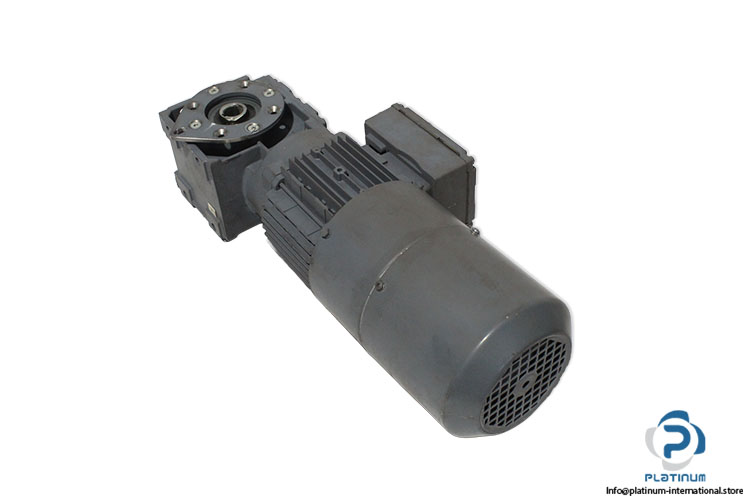

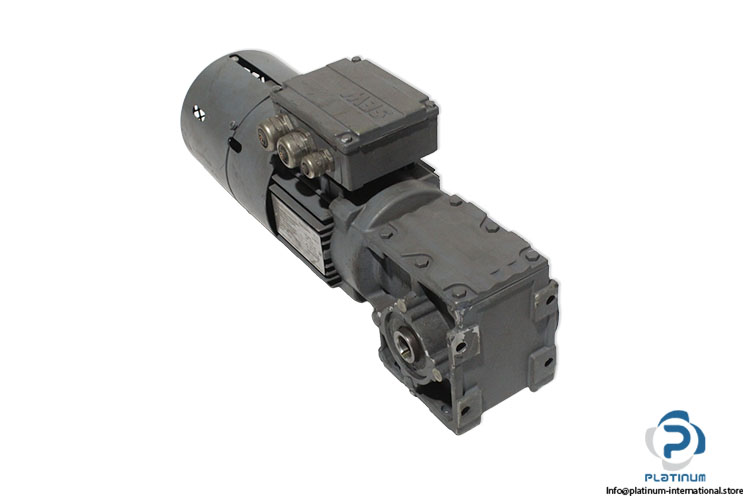

SEW WA30/TDT71D4/BMG/TF/ES1S Gear Motor

Available on request

Helical Gearmotor The SEW-Eurodrive WA30/TDT71D4/BMG/TF/ES1S is a helical gearmotor with an integrated MOVIMOT MM07 inverter drive, providing efficient variable-speed control, reliable torque, and dependable performance for industrial automation and power transmission applications.

Manufacturer
SEW
SKU
1100538
Category
Gear Motors
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

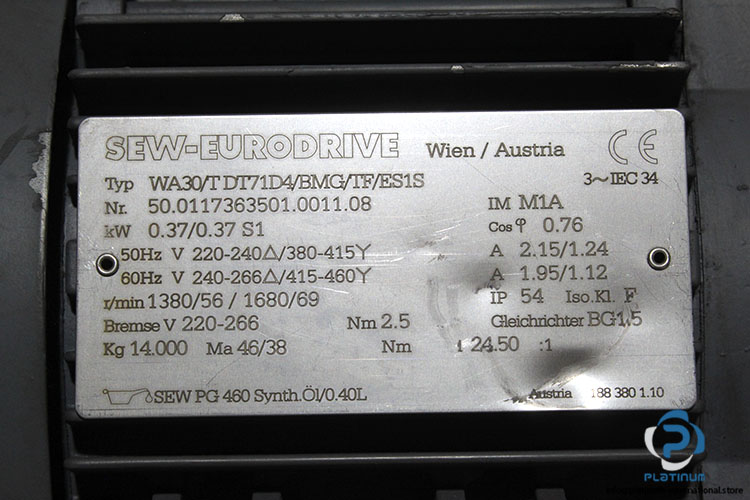

Part No.50.0117363501.0010.08/50.0117363501.0011.08
Speed 50Hz [r/min]1380 / 56
Speed 60Hz [r/min]1680 / 69
Total ratio [i]24,50
Output torque 50Hz [Nm]46
Output torque 60Hz [Nm]38
Service factor SEW-FB1,50 / 1,85
Mounting positionM1A
Electrical regulationIEC
ISO code SEWPG 460
Lubricant typeSynth.Oil
Lubricant volume [l]0,40
Motor power [kW]0.37 / 0.37
Cyclic duration factor S1-S10S1
Multi range-voltage 50Hz [V]220-240 delta / 380-415 star
Nominal current [A] AT 50 HZ2,15 / 1,24
Multi range-voltage 60Hz [V]240-266 delta / 415-460 star
Nominal current [A] AT 60 HZ1,95 / 1,12
motor frequency A [Hz]50
motor frequency B [Hz]60
cos phi0,76
Thermal class/Enclosure[IP]F / 54
Ambient temperature min. [°C]-20
Ambient temperature max. [°C]40
Brake type+sizeBMG05
Brake voltage [V]/-torque [Nm]230 AC / 2.5
Multi range-voltage brake [V]220-266 AC
Brake rectifier nameplateBG1.5
Connectionterminal box
Stock keyCON003
ConditionUsed
SKU1100538
Weight15
