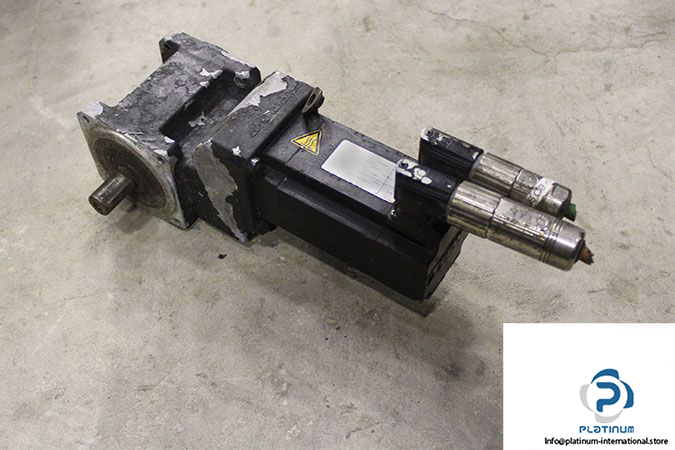

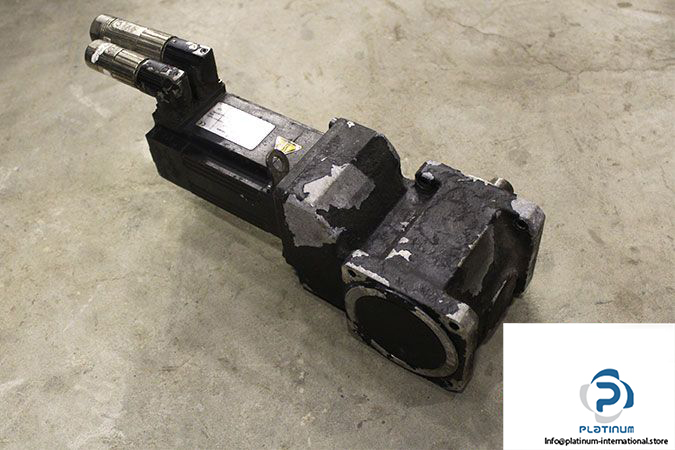

SEW BSKF202 CMP50S/KY/RH1M/SM1 Planetary Servo Gearmotor

SEW Planetary Servo Gearmotor BSKF202 CMP50S/KY/RH1M/SM1

The SEW Planetary Servo Gearmotor BSKF202 CMP50S/KY/RH1M/SM1 is designed for high-performance applications requiring precise motion control. With its robust design and efficient torque output, this gearmotor is suitable for various industrial automation systems, offering versatility and reliability.

Manufacturer: SEW

Type: Planetary Servo Gearmotor

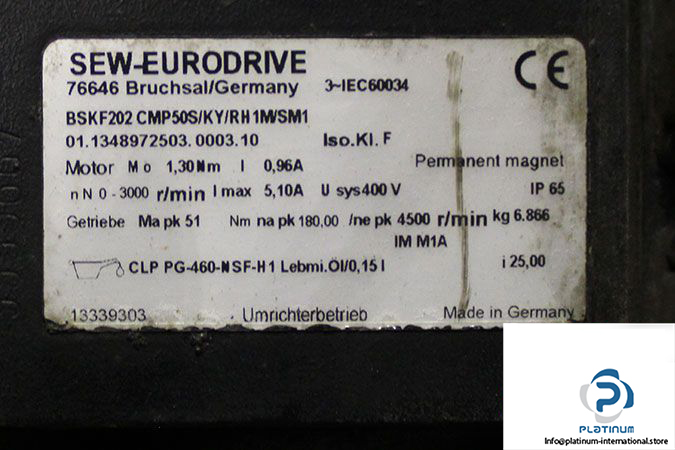

Model: BSKF202 CMP50S/KY/RH1M/SM1

Part No.: 01.1348972503.0003.10

Technical Specifications

• Speed [r/min]: 3000 / 120
• Total Ratio [i]: 25.00
• No. Of Teeth Nom./Denominator: 25/1
• Mounting Position: M1A
• Term. Box Pos. [°] / Cable Entry: 270 / Variable Position
• Lubricant: CLP PG-460-NSF-H1 OIL f.Food
• Lubricant Volume [I]: 0.15
• Input Speed Nepk [rpm]: 4500
• Output Speed Na_pk [min-1]: 180.00
• Output Torque Mapk [Nm]: 51
• Output Shaft End: 20x35mm with Keyway
• Design: Flange-Mounted Version
• Flange: Centering Shoulder 90mm, Hole Circle Through Holes 109mm
• Rated Speed nN [Rpm]: 3000
• Standstill Torque M0 [Nm]: 1.3
• Max. Limit Torque Mpk [Nm]: 5.2
• Standstill Current [A]: 0.96
• Max. Permitted Current Imax [A]: 5.1
• Cyclic Duration Factor: S1
• Motor Voltage [V]: 400
• Max. Permitted Frequency [Hz]: 150
• Thermal Class/Enclosure [IP]: F / 65
• General Access. Feature: SM1 Plug Connector
• Temperature Measuring: KY = KTY84-130 Temperature Sensor
• Additional Feature Encoder Option: RH1M Resolver 2-Pole
