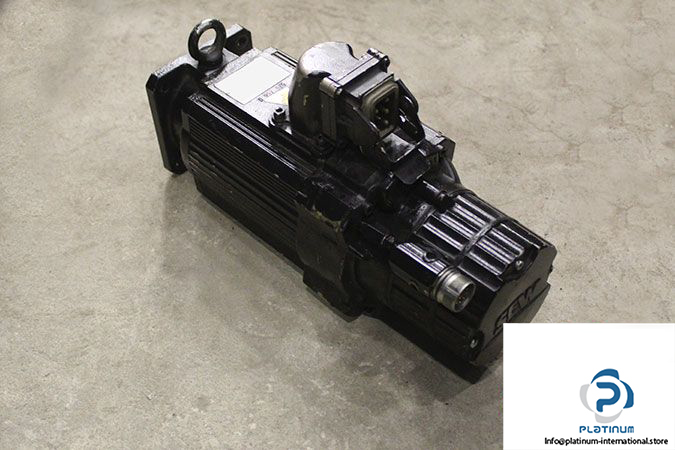

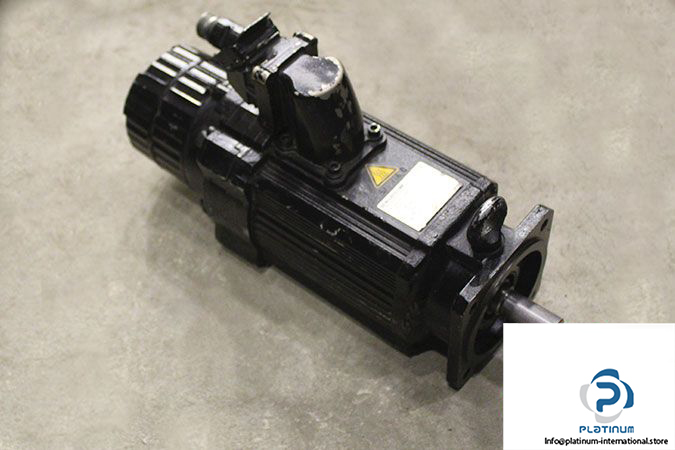

SEW CFM71S/BR/TF/RH1L/SB60 Synchronous Servomotor

Manufacturer: SEW-Eurodrive

Type: Synchronous Servomotors

Model: CFM71S/BR/TF/RH1L/SB60

Part No.: 05.1396118701.0001.11

Rated Speed [rpm]: 3000

Standstill Torque [Nm]: 5.0

Max. Limit Torque [Nm]: 16.5

Standstill Current [A]: 3.3

Max Current [A]: 13.2

Max Motor Voltage [V]: 400

Brake Voltage [V]: 400

Torque [Nm]: 10

Brake Rectifier: BME 1.5

Max Permitted Frequency [Hz]: 150

Output Shaft End [mm]: 19×40

Mounting Positions [IM]: B5

Protection Class [IP]: 65

Duty: S1 Cont.

Insulation Class: F
