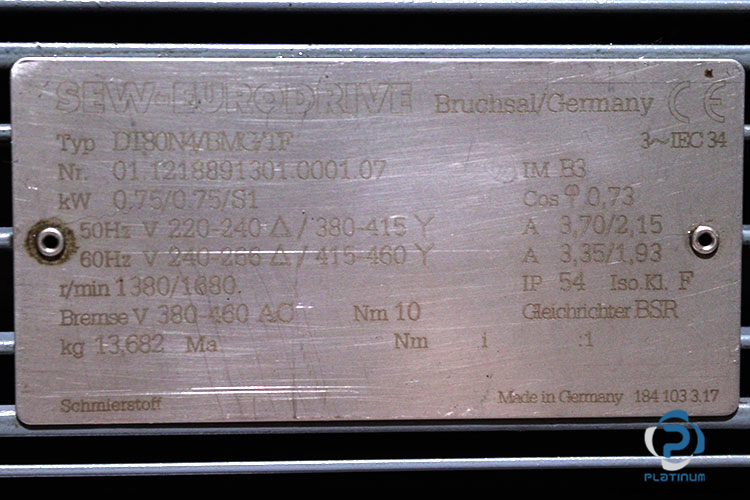

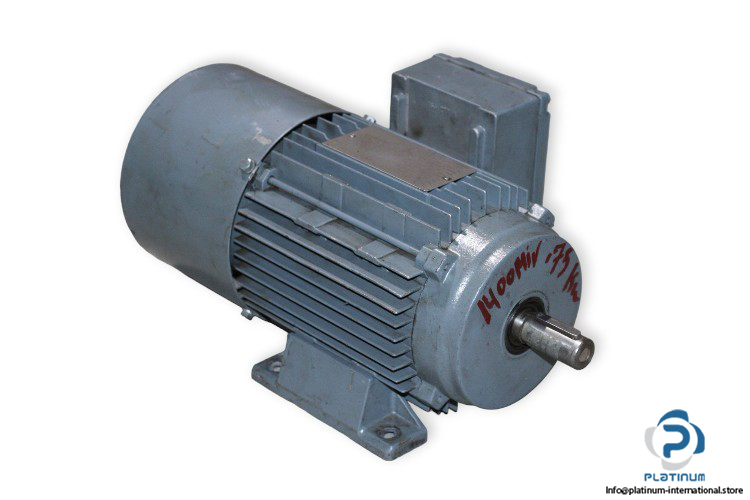

SEW DT80N4/BMG/TF Brake Motor
Manufacturer: SEW
Type: Brake Motor
Model: DT80N4/BMG/TF
Rated Power [kW]: 0.75/0.75
Rated Voltage at 50 Hz [V]: 220-240/380-415
Rated Voltage at 60 Hz [V]: 240-266/415-460
Rated Current [A]: 3.7-2.15/3.35-1.93
Rated Speed [min-1]: 1380/1680
Frequency [Hz]: 50/60
Thermal Class: F
Duty: S1
Protection Class [IP]: 54
Power Factor [cos]: 0.73
Mounting Position [IM]: B3
Brake: BSR
Brake Voltage [V]: 380-460 AC
Brake Torque [Nm]: 10
