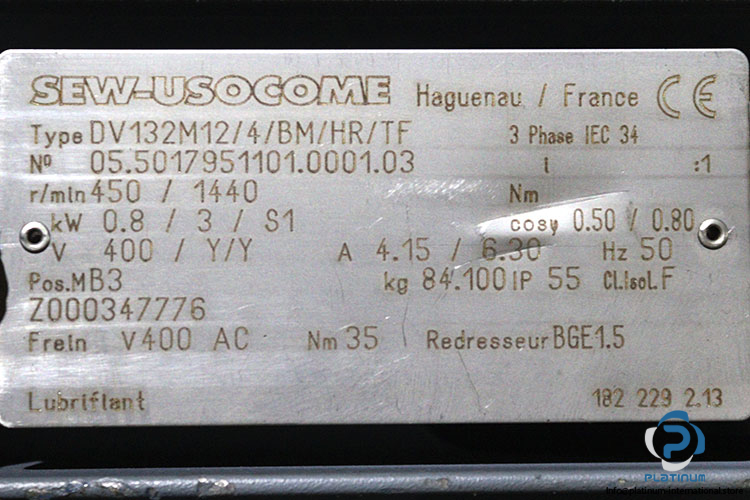

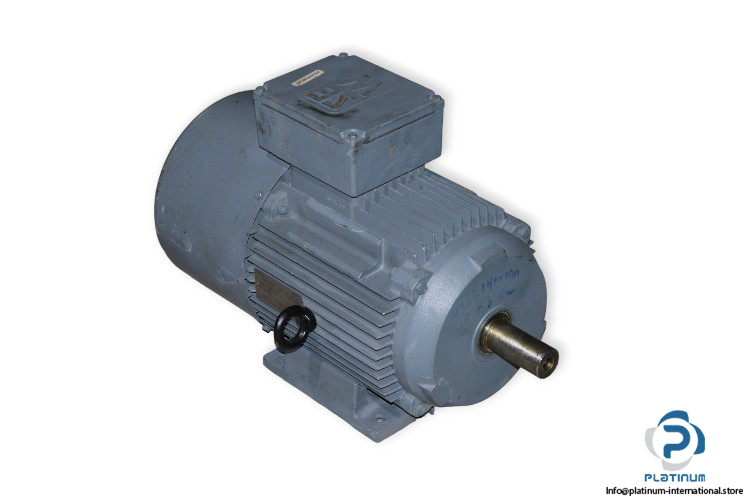

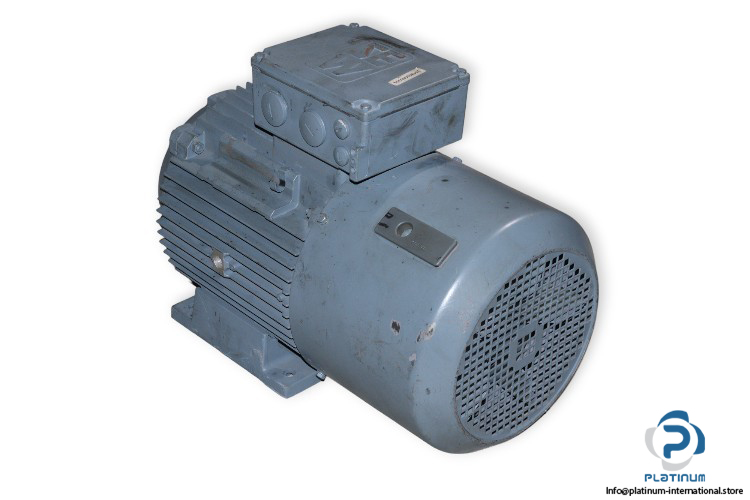

SEW DV132M12/4/BM/HR/TF Brake Motor

Manufacturer: SEW
Type: Brake Motors
Model: DV132M12/4/BM/HR/TF
Serial No.: 05.5017951101.0001.03

Rated Motor Speed [r/min]: 450
Input Speed B [r/min]: 1440
Mounting Position: B3
Electrical Regulation: IEC
Motor Speed [r/min]: 450/1440
Motor Power [kW]: 0.8/3
Motor Frequency [Hz]: 50
Cyclic Duration Factor: S1
Motor Voltage [V]: 400 Star
Nominal Current [A]: 4,15/6,30
Cos Phi: 0,50/0,80
Thermal Class/Enclosure [IP]: F/55
Electrical Regulation: IEC34-1
Ambient Temperature Motor [°C]: -25 BIS +40
Brake: BM15
Brake Voltage [V]: 400 AC
Torque [Nm]: 35
Multi Range-Voltage Brake [V]: 400 AC
Brake Rectifier: BGE1.5
