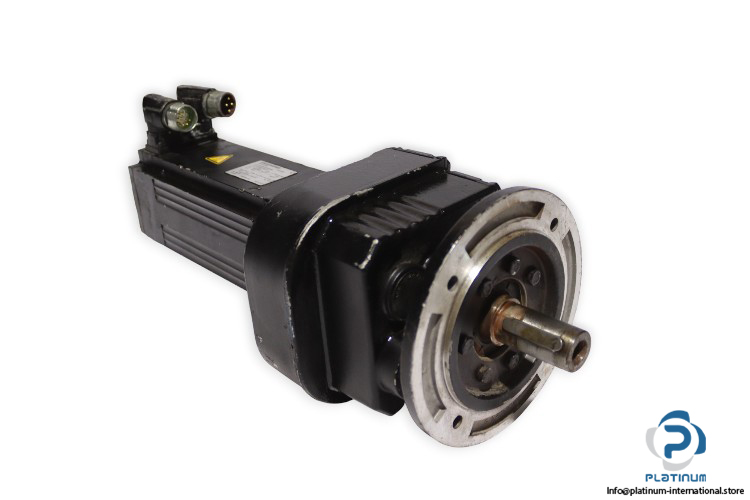

SEW-Eurodrive RF27 CMP63M/KY/RH1M/SM1 50.1732545001.0003.11 Servo Motor
Permanent Magnet Synchronous Motor
High-performance PMSM motor with gearbox delivering 5.30 Nm rated torque, 13.60 Nm peak torque, and 400 V AC-3Phase supply. Engineered for precision automation, energy efficiency, and durable industrial operation.Sew-Eurodrive RF27CMP63M/KY/RH1M/SM1 Permanent Magnet Synchronous Motor (PMSM)
The Sew-Eurodrive RF27CMP63M/KY/RH1M/SM1 is a high-efficiency Permanent Magnet Synchronous Motor engineered for precision, reliability, and optimal performance in demanding industrial environments. Designed to deliver exceptional torque density and energy savings, it offers smooth operation and outstanding control for automation systems, conveyors, and high-performance machinery. Built to IEC 60034 standards, this PMSM provides quiet operation, long service life, and easy integration into various mechanical setups.
Manufacturer: Sew-Eurodrive
Type: Permanent Magnet Synchronous Motor (PMSM)
Model: RF27CMP63M/KY/RH1M/SM1
Part Number: 50.1732545001.0003.11
Serial Number: 360293
Gearbox Data
This Sew-Eurodrive PMSM with integrated gearbox is an ideal choice for industries seeking compact yet powerful motion systems. It combines high dynamic response with low energy consumption, making it perfect for precision automation, robotics, and high-efficiency production lines.

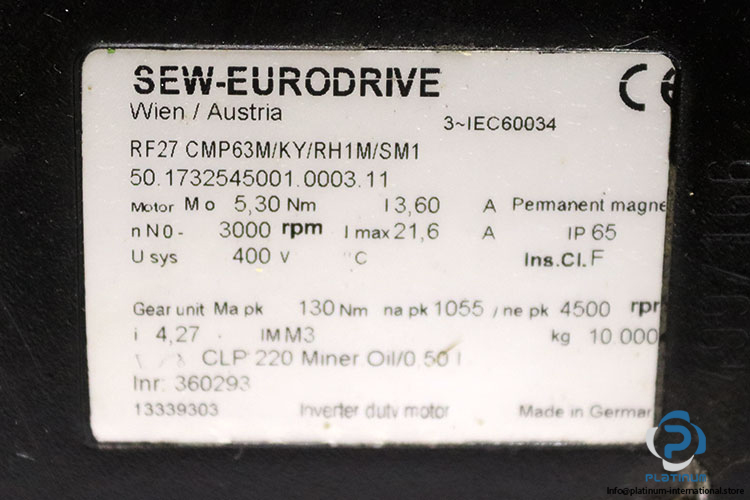

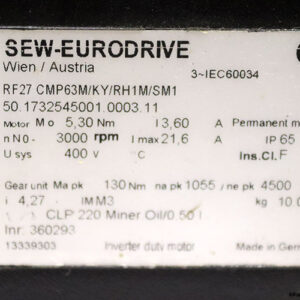

| Rated Torque (M‚) | 5.30 Nm |
| Peak Torque (M‚š‚–) | 13.60 Nm |
| Nominal Speed (n‚) | 3000 rpm |
| Rated Voltage (U‚›áµ§‚›) | 400 V AC-3Phase |
| Rated Current (I‚˜‚‚“) | 21.6 A |
| Insulation Class | F |
| Protection Class | IP65 |
| Cooling Type | Natural convection / surface cooled |
| Duty Type | Continuous (S1) |
| Standard | IEC 60034 |
| Max Torque (Ma pk) | 130 Nm |
| Nominal Torque (Na pk) | 1055 Nm |
| Max Speed (n pk) | 4500 rpm |
| Ratio | i : 4.27 |
| Mounting | IM M3 |
| Lubrication | CLP 220 Mineral Oil, 0.50 L |
