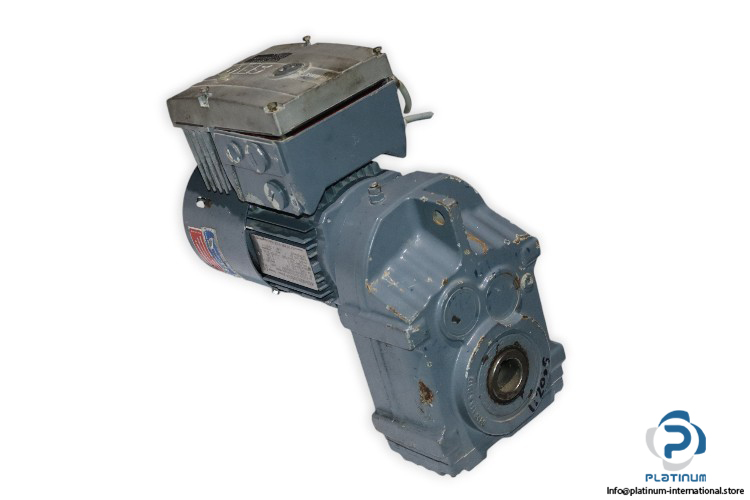

SEW FA37/G DT71D4/BMG/HR/MM05 Parallel-Shaft Helical Gearmotor

SEW FA37/G DT71D4/BMG/HR/MM05 Parallel-Shaft Helical Gearmotor

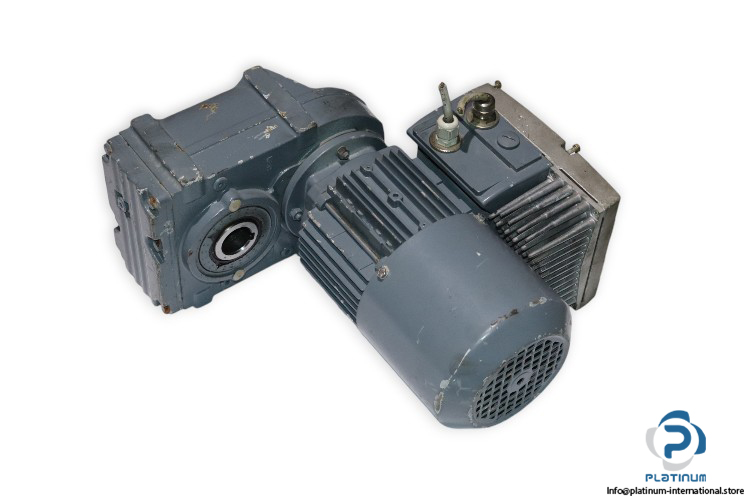

The SEW FA37/G DT71D4/BMG/HR/MM05 is a high-efficiency parallel-shaft helical gearmotor designed for industrial applications requiring precision speed control and high torque output. With integrated SEW MOVIMOT Inverter Drive MM03C-503-00, this gearmotor ensures optimal performance and flexibility in automation systems.

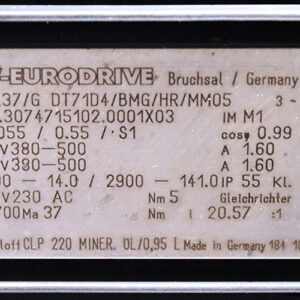

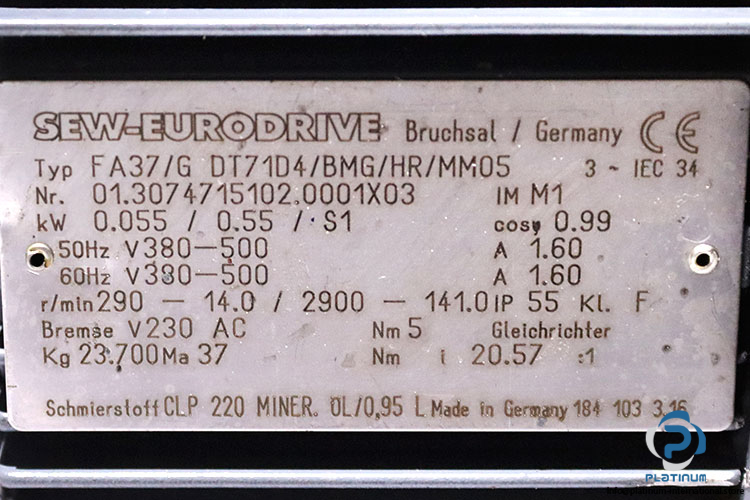

Technical Specifications:

Gear Unit Specifications:

• Model: FA37/G
• Input Speed: 290 – 2900 r/min
• Output Speed: 14.0 – 141.0 r/min
• Total Ratio: 20.57
• Output Torque: 37 Nm
• Service Factor SEW-FB: 5.40
• Mounting Position: M1
• Hollow Shaft Diameter: 30 mm
• Design: Hollow Shaft

Motor Specifications:

• Motor Power: 0.055 / 0.55 kW
• Motor Frequency: 100 Hz
• Cyclic Duration Factor: S1
• Multi-Range Voltage (50 Hz): 380-500 V
• Multi-Range Voltage (60 Hz): 380-500 V
• Rated Main Current: 1.60 A
• Rated Output Current: 2.00 A
• Thermal Class / Enclosure: (F) / IP54
• Brake Voltage / Torque: 230V AC / 5 Nm
• Multi-Range Voltage Brake: 230V AC

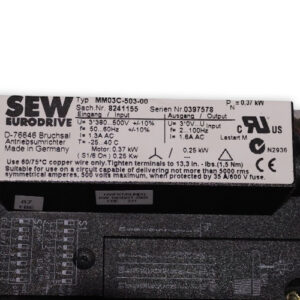

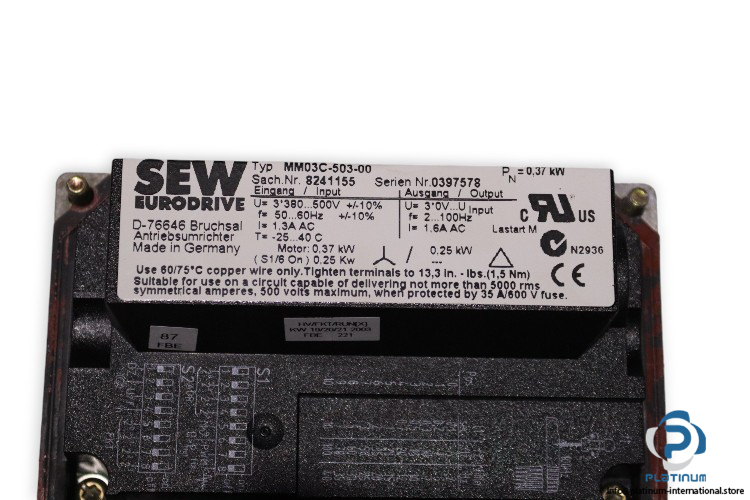

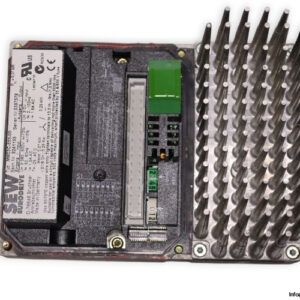

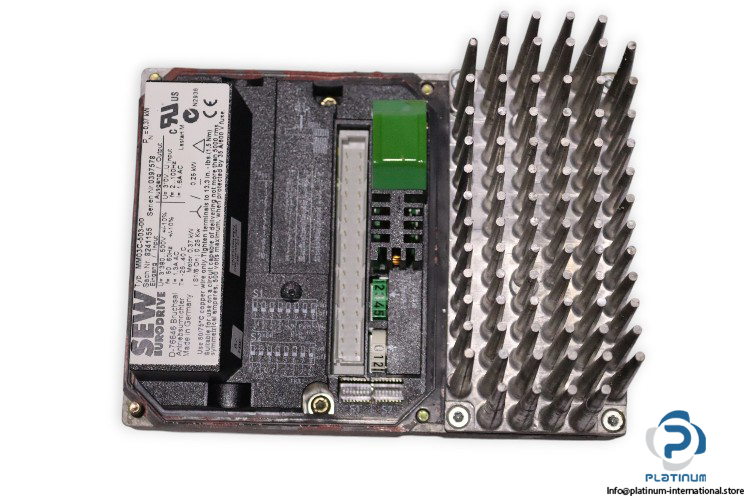

SEW MOVIMOT Inverter Drive MM03C-503-00 Specifications:

Input:

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.3 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 1.6 A
• Frequency: 2 to 100 Hz

The SEW FA37/G DT71D4/BMG/HR/MM05 with integrated MOVIMOT Inverter Drive ensures precise speed control, efficiency, and reliability for industrial motion and automation systems.
