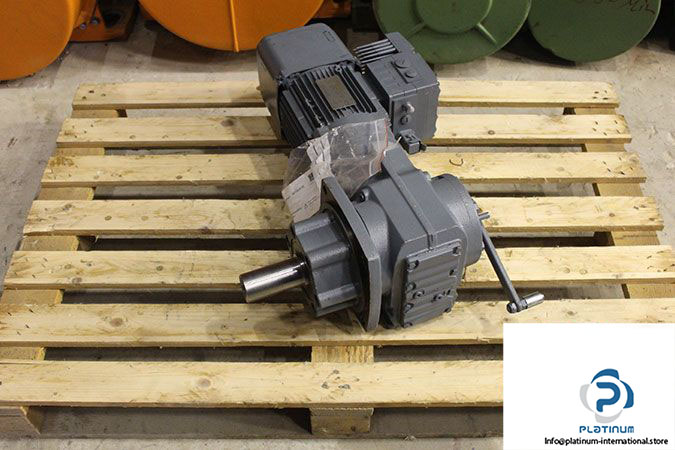

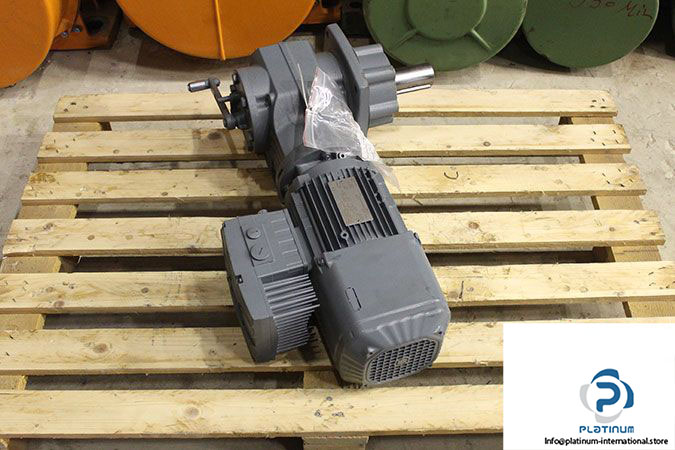

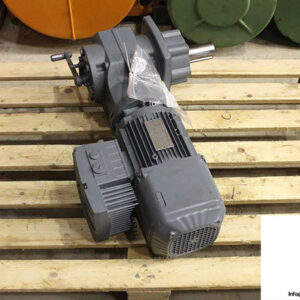

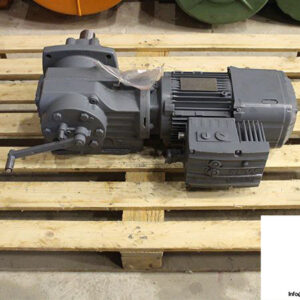

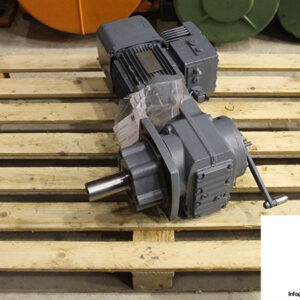

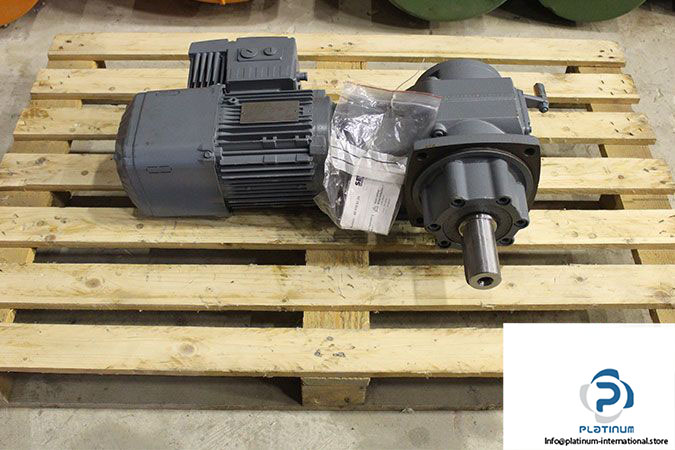

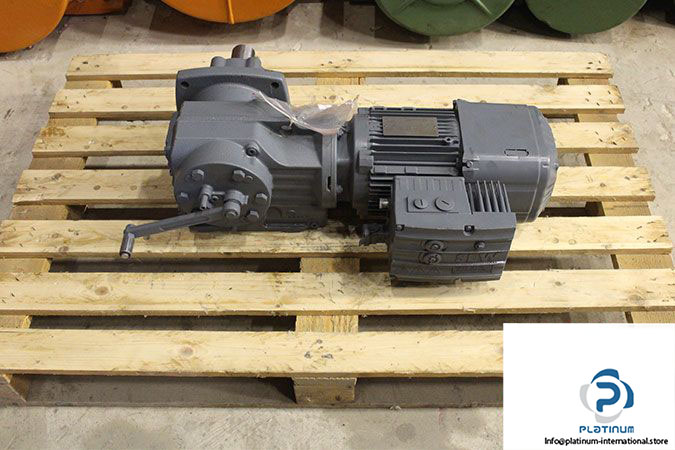

SEW HK50 DRN90S4/BE2/MM15/IV Helical-Bevel Gearmotor

Manufacturer: Sew-Eurodrive

Type: Helical Bevel Gear Motor

Model: HK50DRN90S4/BE2/MM15/IV

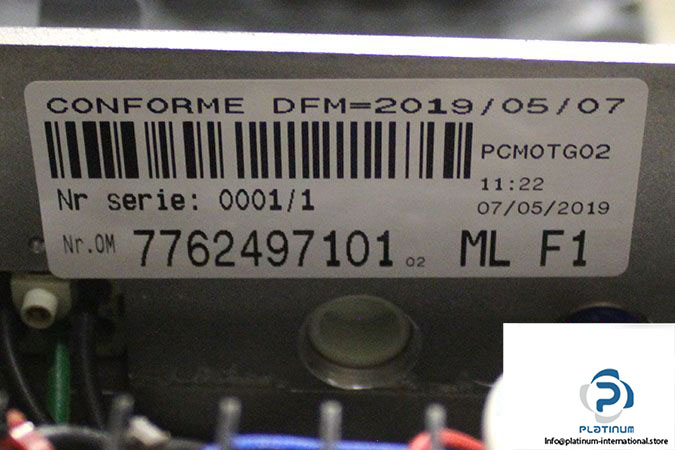

Serial Number: 01.7762497101.0001.19

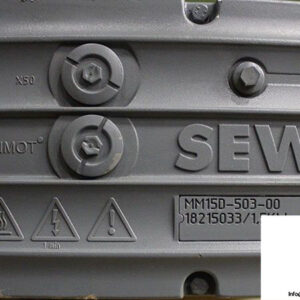

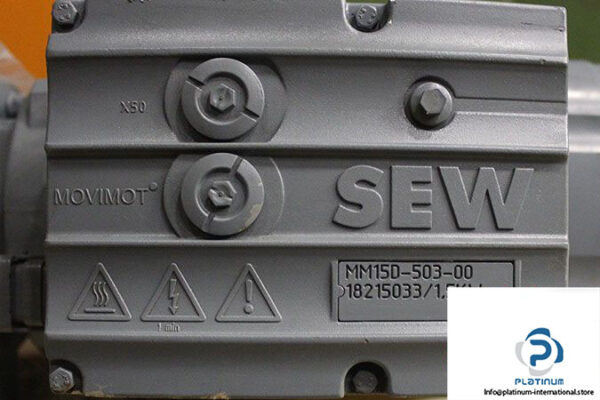

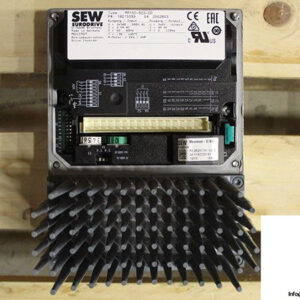

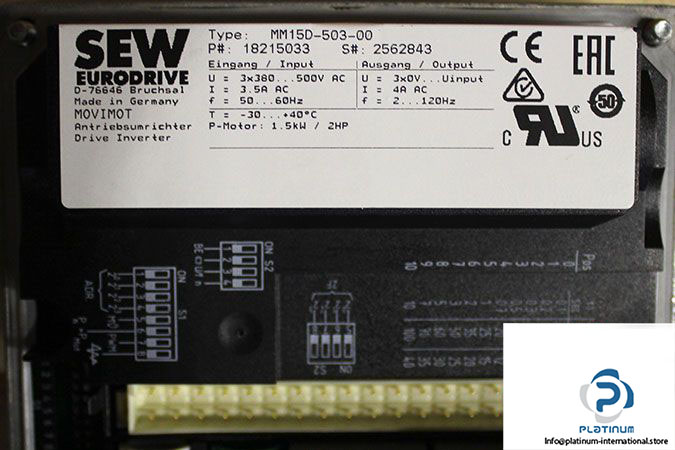

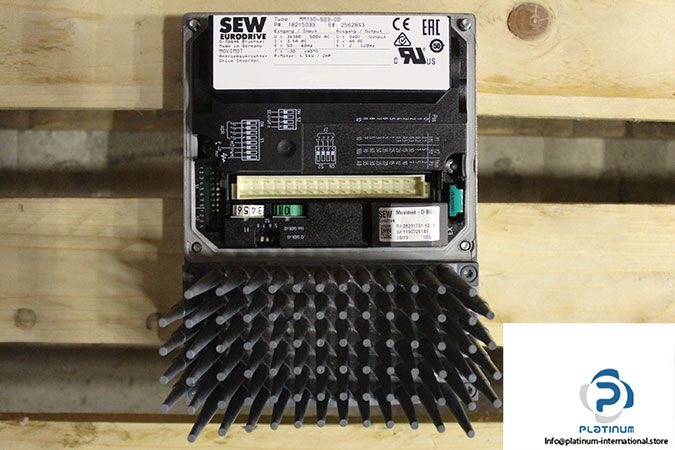

Movimot Type: MM15D-503-00

Part No.: 18215033

Gear Unit: HK50

Input Speed [r/min]: 2900 – 290

Output Speed [r/min]: 59 – 5.9

Total Ratio [i]: 48,89 / Infinite

Ma Max [Nm]: 600

Output Torque [Nm]: 240

Mounting Position: M3B

Lubricant / -Volume [l]: CLP PG 220 Synth.Oil / 2,70

Output Shaft End [mm]: 45×90

Design: Overhead trolley drive

Flange [mm]: 180 Centering Shoulder

Motor: DRN90S4/BE2/MM15/IV

Output Oil Seal Material: FKM

Motor Power [kW]: 1.5 / 0.15

Motor Frequency [Hz]: 100

Cyclic Duration Factor: S1

Setting Range (CT): 1:10

Motor Frequency Min. [Hz]: 13

Motor Voltage [V]: 380-500

Line Frequency [Hz]: 50-60

MM Rated Main Current [A]: 3,50

MM Rated OP Current [A]: 4,00

Thermal cl.[°C]/Enclosure [IP]: 155(F) / 54

System Efficiency: IES 2

Inverter Duty: VPWM

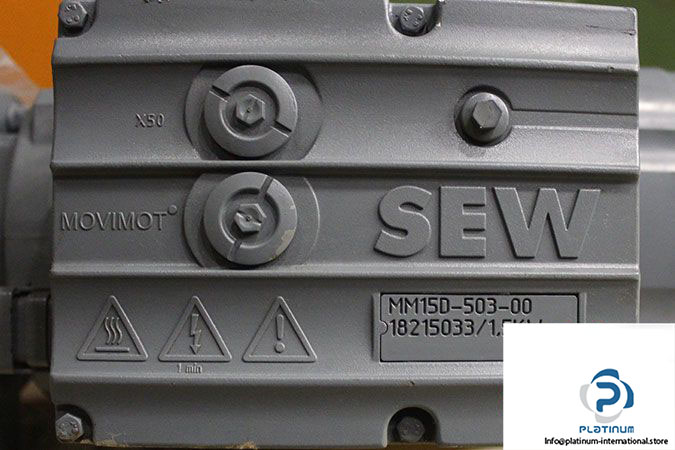

Part No.: 18215033/1.5KW

Rated Voltage Input [V]: 3×380…500

Rated Current Input [A]: 3.5 AC

Frequency Input [Hz]: 50…60

Ambient Temperature Inverter [°C]: -30…40

Rated Voltage Output [V]: 3×0 V…Uinput

Rated Current Output [A]: 4.0 AC

Frequency Output [Hz]: 2…120

Brake: BE2

Brake Voltage [V]/-Torque [Nm]: 230 AC / 10

Brake Rectifier: Without

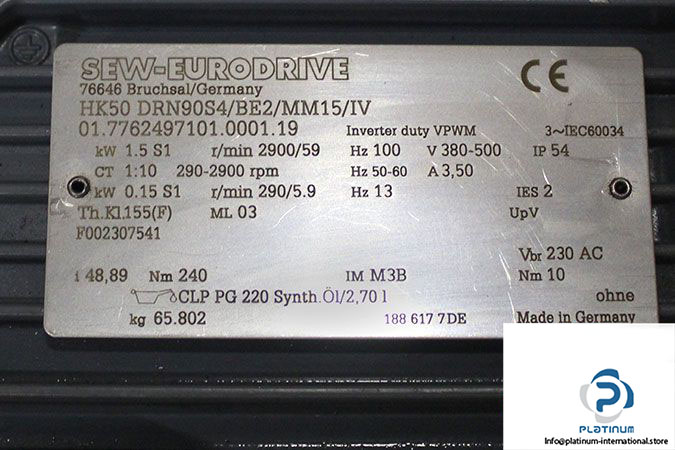

Nameplate Text: F002307541

Weight [kg]: 23.7
