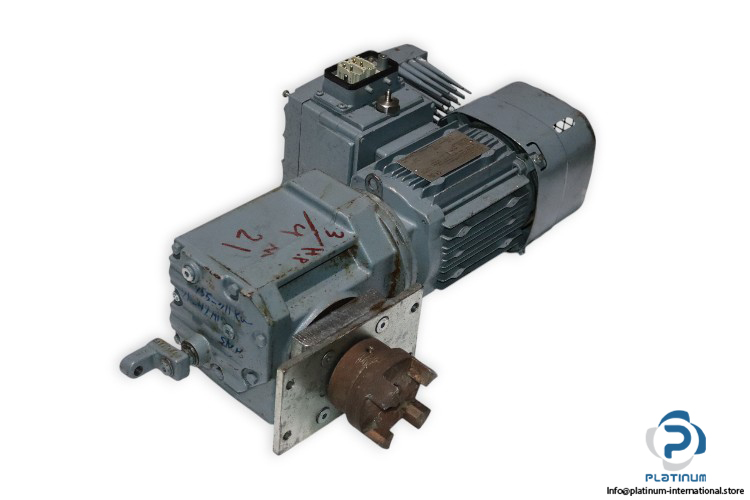

SEW HS41 DRS71M4BE1/MM05/AMA6 Electrified Monorail Drive Gearmotor

SEW HS41 DRS71M4BE1/MM05/AMA6 ELECTRIFIED MONORAIL DRIVE GEARMOTOR

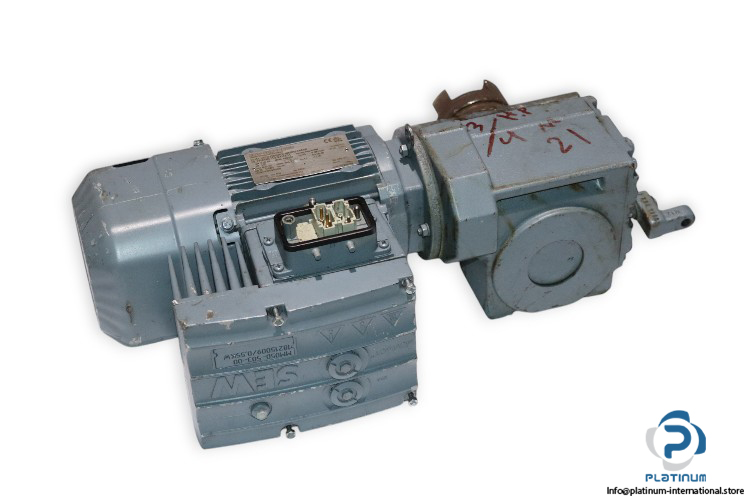

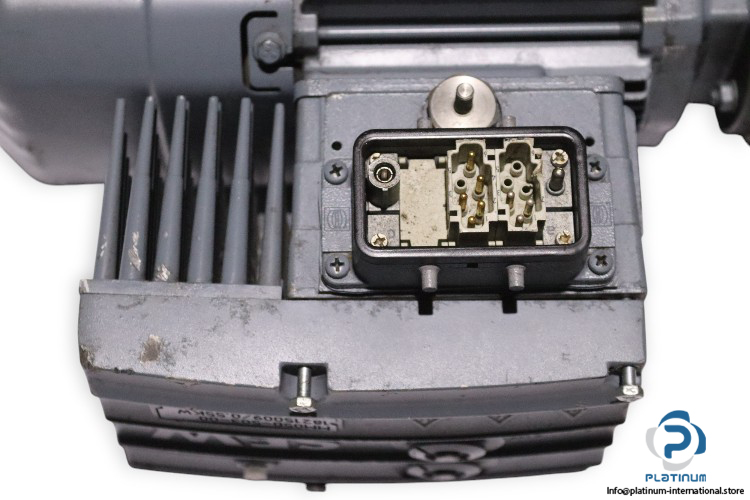

The SEW HS41 DRS71M4BE1/MM05/AMA6 Electrified Monorail Drive Gearmotor is a high-performance solution designed for precise and efficient power transmission in monorail systems. This gearmotor features a wide input and output speed range, high torque output, and a durable design for demanding industrial applications.

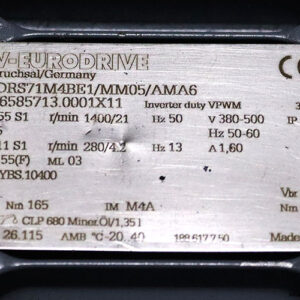

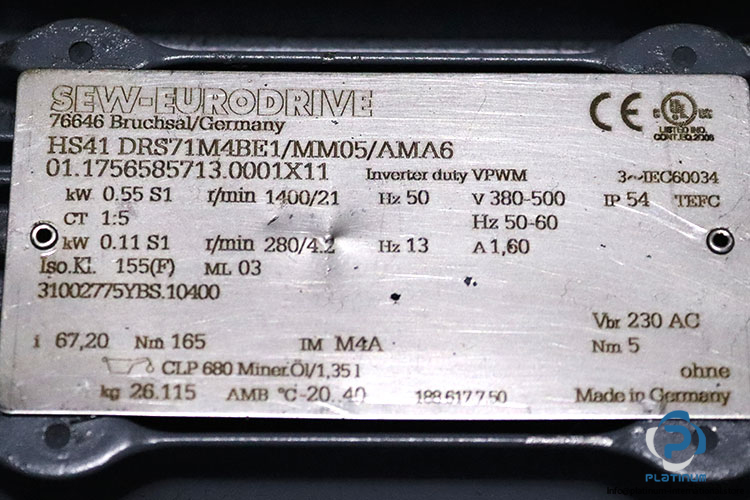

Manufacturer: SEW

Type: Electrified monorail drive gearmotor

Model: HS41 DRS71M4BE1/MM05/AMA6

Part No: 01.1756585713.0001X11

Technical Specifications

• Gear Unit: HS41
• Input Speed [r/min]: 1400 – 280
• Output Speed [r/min]: 21 – 4.2
• Total Ratio: 67.20 / finite
• No. of Teeth Nom./Denominator: 336/5
• Max. Torque [Nm]: 174
• Output Torque [Nm]: 165
• Service Factor SEW-FB: 1.05
• Mounting Position: M4A
• Lubricant / Volume [l]: CLP 680 Mineral Oil / 1.35
• Output Shaft End: 25×35 mm length
• Motor Power [kW]: 0.55 / 0.11
• Motor Frequency [Hz]: 50
• Cyclic Duration Factor S1-S10: S1
• Motor Voltage [V]: 380-500
• Motor Supply Frequency [Hz]: 50
• MM Rated Main Current [A]: 1.60
• MM Rated Output Current [A]: 2.00
• Thermal Class [°C] / Enclosure [IP]: 155 (F) / 54
• Brake Voltage [V] / Torque [Nm]: 230 AC / 5

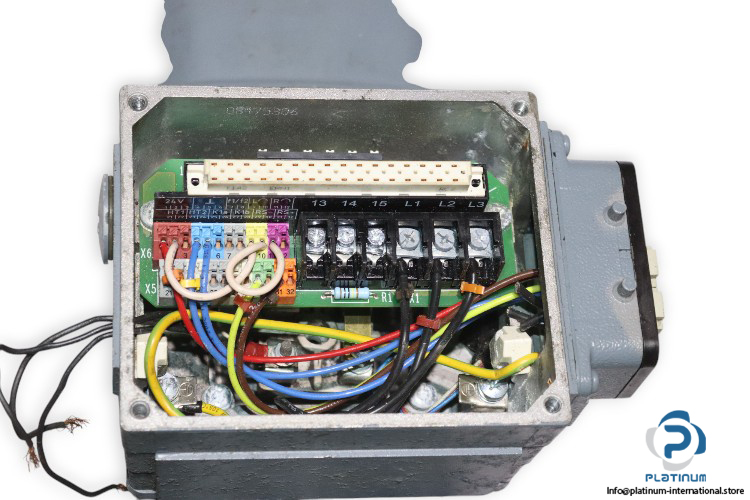

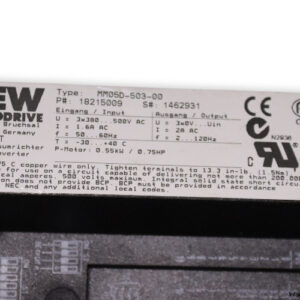

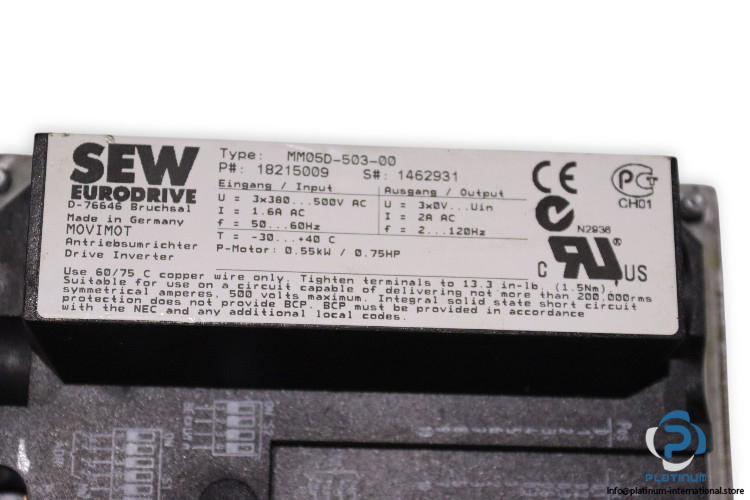

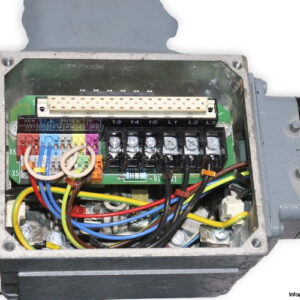

• Attached with: SEW MM05D-503-00 MOVIMOT INVERTER DRIVE

Input Specifications

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.6 A
• Frequency: 50 / 60 Hz

Output Specifications

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 2 A
• Frequency: 2 to 120 Hz
