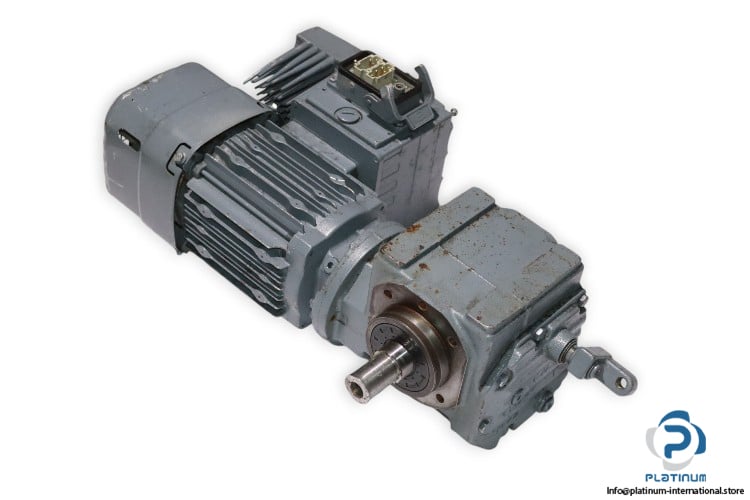

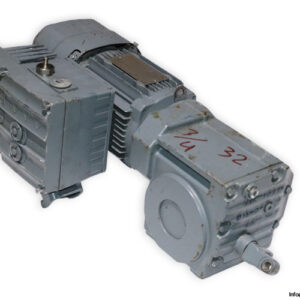

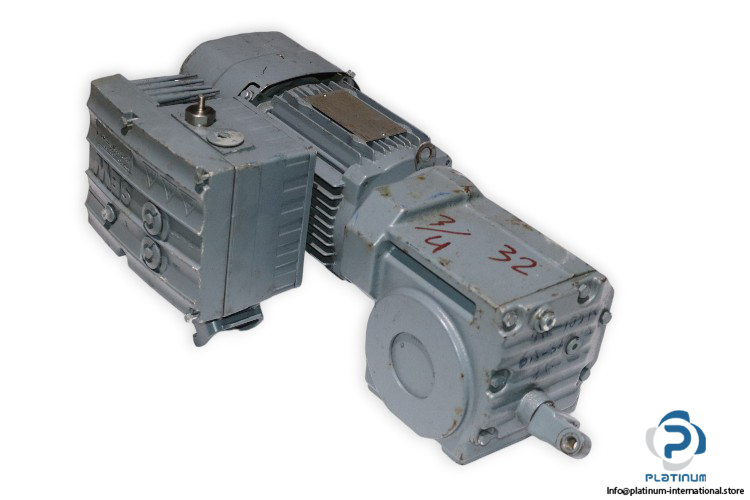

SEW HS41 DRS71M4BE1/MM05/AMA6 Electrified Monorail Drive Gearmotor
Electrified Monorail Drive Gearmotor
The SEW HS41 DRS71M4BE1/MM05/AMA6 gearmotor offers high torque, precise motion control, and a MOVIMOT inverter for efficient operation in electrified monorail applications.SEW HS41 DRS71M4BE1/MM05/AMA6 Electrified Monorail Drive Gearmotor
The SEW HS41 DRS71M4BE1/MM05/AMA6 Electrified Monorail Drive Gearmotor is engineered for efficient and precise motion control in electrified monorail systems. Designed for durability and optimal performance, it integrates a robust gear unit and an inverter drive for seamless speed regulation.
Manufacturer: SEW
Type: ELECTRIFIED MONORAIL DRIVE GEARMOTOR
Model: HS41 DRS71M4BE1/MM05/AMA6
Part No.: 01.1760920001.0005X12
Input Specifications:
Output Specifications:
With its precise motor control, robust construction, and integrated inverter drive, this gearmotor is a high-performance solution for industrial electrified monorail applications.
| Gear Unit | HS41 |
| Speed 50Hz [r/min] | 1400 - 280 |
| Output Speed [r/min] | 32 - 6.3 |
| Total Ratio | 44.22 / finite |
| No. of Teeth (Nom./Denominator) | 1769/40 |
| Maximum Torque (Ma max) [Nm] | 180 |
| Output Torque [Nm] | 132 |
| Service Factor SEW-FB | 1.35 |
| Mounting Position | M4A |
| Lubricant / Volume [l] | CLP 680 Mineral Oil / 1.35 |
| Output Shaft End | 25x35mm lg. |
| Motor Power [kW] | 0.55 / 0.11 |
| Motor Frequency [Hz] | 50 |
| Cyclic Duration Factor (S1-S10) | S1 |
| Motor Voltage [V] | 380-500 |
| Motor Supply Frequency [Hz] | 50 |
| MM Rated Main Current [A] | 1.60 |
| MM Rated Output Current [A] | 2.00 |
| Thermal Class [°C] / Enclosure [IP] | 155(F) / 54 |

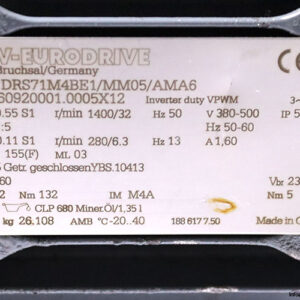

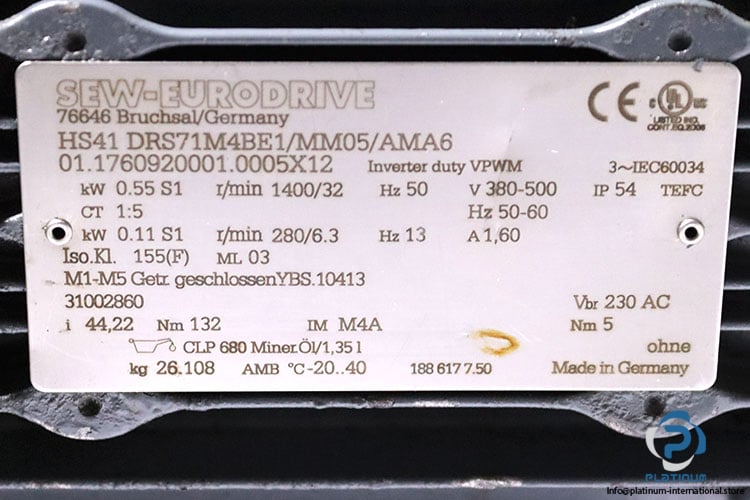

| Nameplate Text | M1-M5 GETR. GESCHLOSSEN YBS.10413 |
| Brake Voltage [V] / Torque [Nm] | 230 AC / 5 |

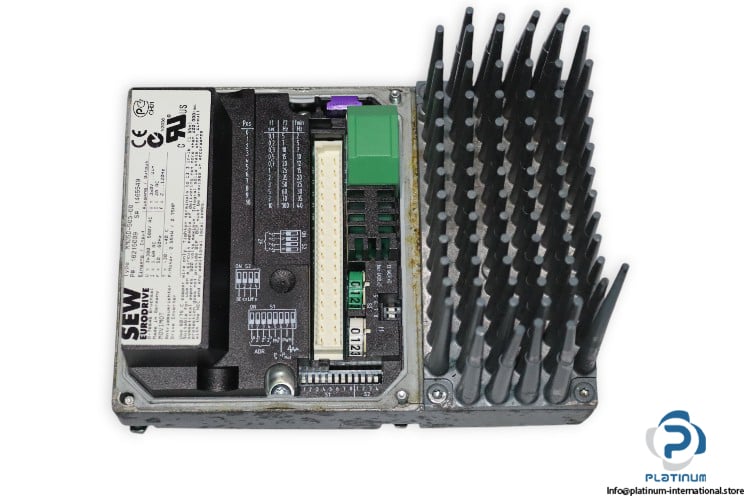

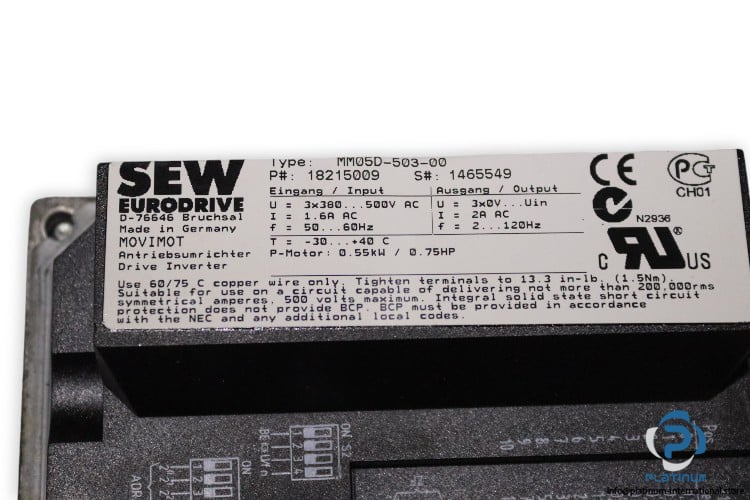

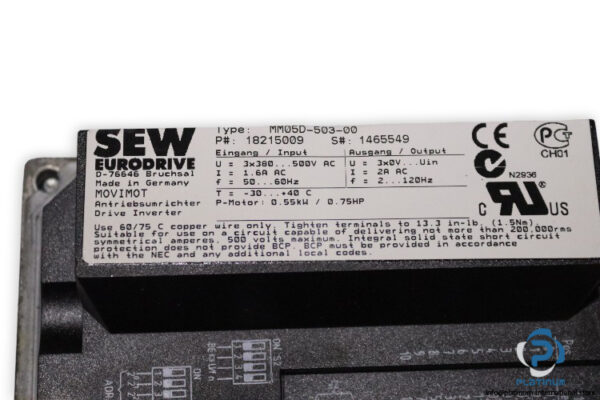

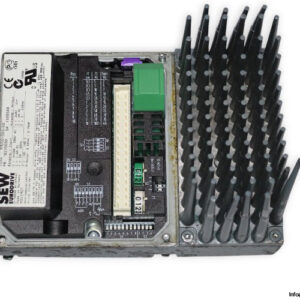

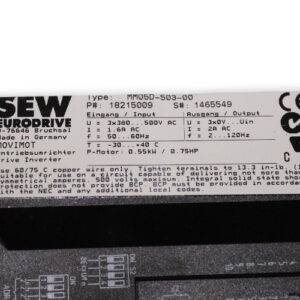

| Attached With | SEW MM05D-503-00 MOVIMOT Inverter Drive |
| Supply Voltage | 3-Phase 380 to 500 V AC |
| Rated Current | 1.6 A |
| Frequency | 50 / 60 Hz |
| Rated Voltage | 3-Phase 0 / 380 to 500 V AC |
| Rated Current | 2 A |
| Frequency | 2 to 120 Hz |
