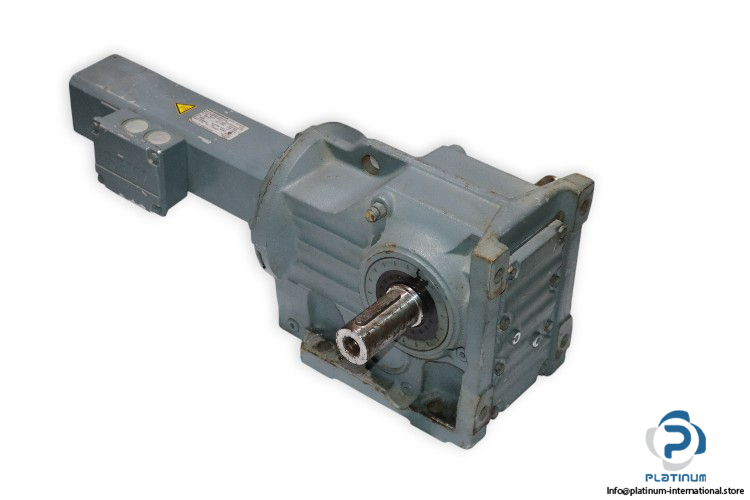

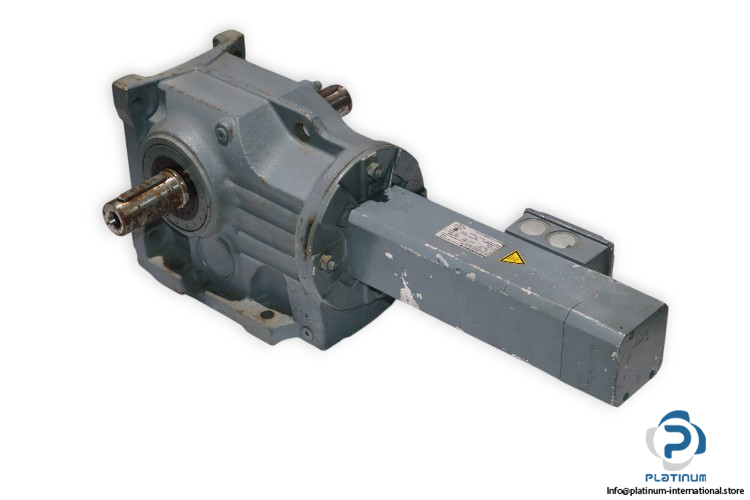

SEW K57 DS56H/B/TF/AS1H/KK Bevel Helical Gear Unit Servo Motor

Manufacturer: SEW

Type: Bevel Helical Gear Unit Servo Motor

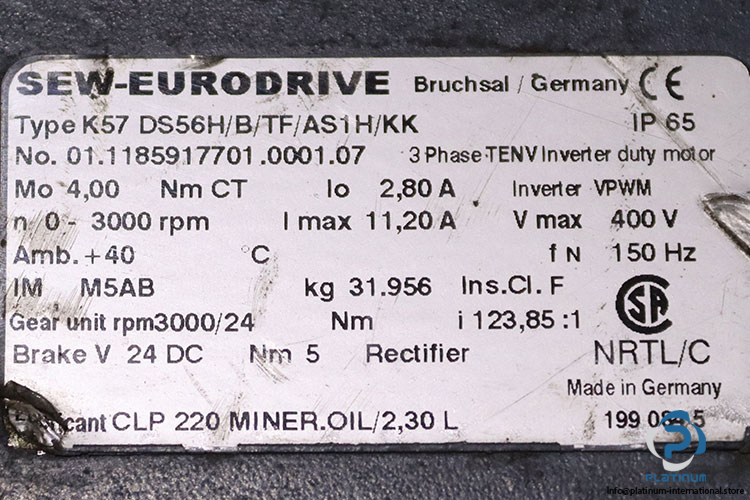

Model: K57DS56H/B/TF/AS1H/KK

Part Nr.: 01.1185917701.0001.07

Speed [r/min]: 3000 / 24

Total Ratio [i]: 123.85

Lubricant/Volume [l]: CLP 220 Miner.Oil / 2,30

Output Shaft End [mm]: 35×70

Rated Speed [rpm]: 3000

Standstill Torque [Nm]: 4.0

Standstill Current [A]: 2.8

Max. Current [A]: 11.2

Cyclic Duration Factor: S1

Motor Voltage [V]: 400

Brake Voltage [V]: 24

Brake Torque [Nm]: 5

Max. Permitted Frequency [Hz]: 150

Thermal Class/Enclosure [IP]: F/65
