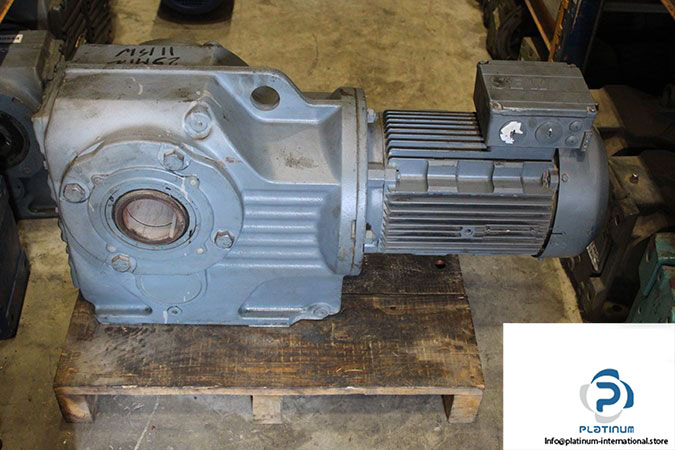

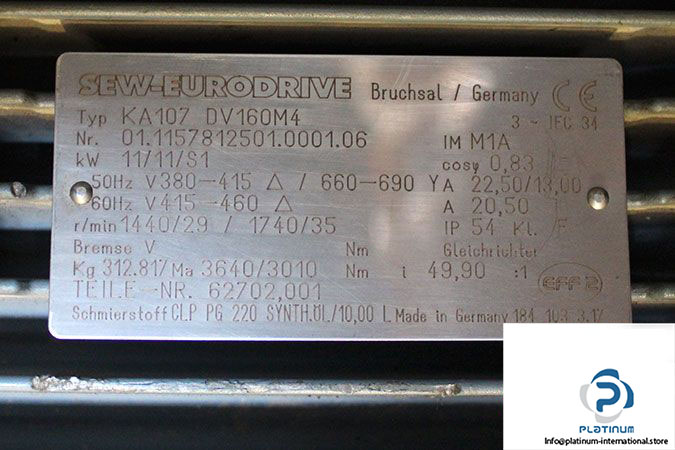

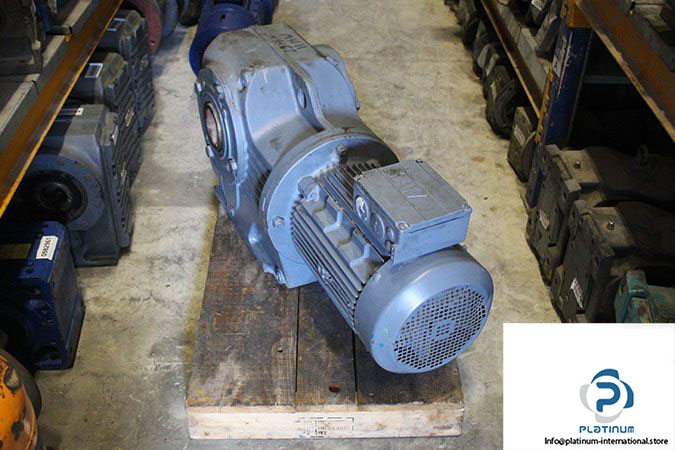

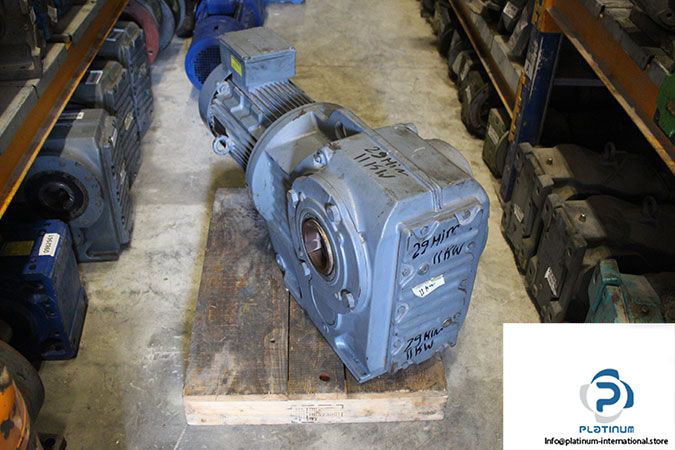

SEW KA107 DV160M4 Helical-Bevel Gearmotor

Manufacturer: Sew-Eurodrive

Type: Helical Bevel Gear Motor

Model: KA107DV160M4

Serial Number: 01.1157812501.0001.06

Speed [r/min]: 1440 / 29

Speed [r/min]: 1740 / 35

Total Ratio [i]: 49.90

Gear Unit Size: 107

Output Torque [Nm]: 3640 / 3010

Service Factor SEW-FB: 2.2 / 2.6

Mounting Position: M1A

Lubricant /Volume [L]: CLP PG 220 Synth.Oil / 10,00

Hollow Shaft: 90 mm

Design: Hollow Shaft

Motor Power [kW]: 11 / 11

Motor Frequency [Hz]: 50

Motor Size: 160

Number of Pole: 4

Cyclic Duration Factor: S1

Motor Voltage [V] / Conn. Type: 400/690 Delta/Star

Multi Range-Voltage 50Hz [V]: 380-415 Delta / 660-690 Star

Rated Current [A]: 22.5 / 13

Multi Range-Voltage 60Hz [V]: 415-460 Delta

Rated Current [A]: 20,50 / 0,00

Power Factor: 0,83

Thermal Class: F

Enclosure [IP]: 54

Efficiency [%]: 88,5

Electrical Regulation: IEC34-1

Weight [kg]: 305
