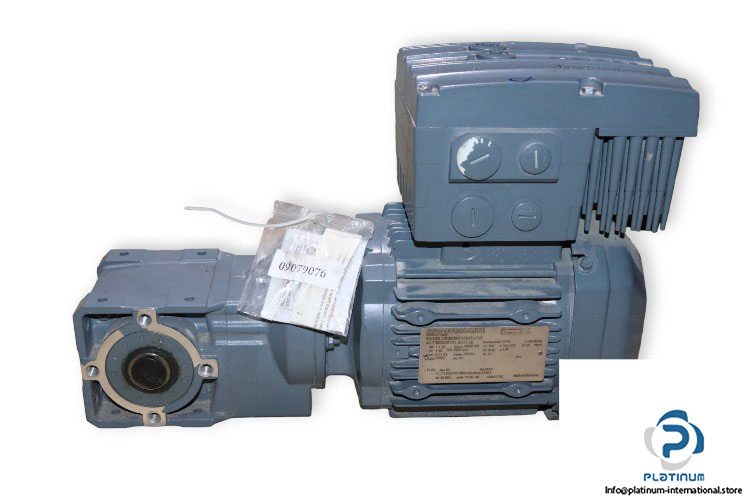

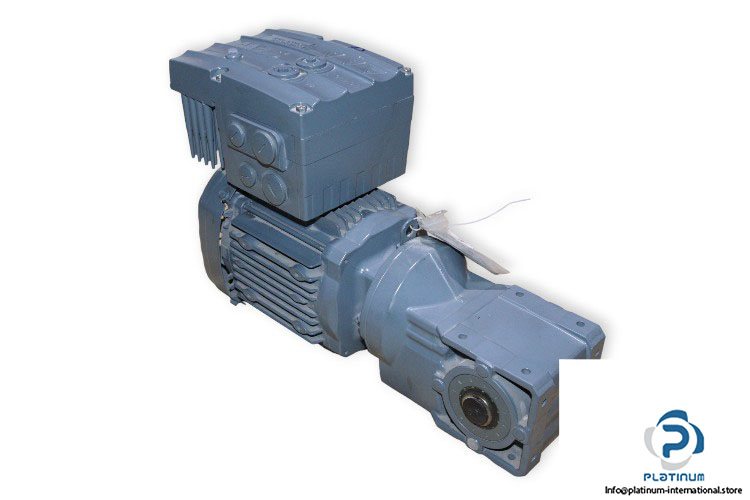

SEW KA19B DRS80S4/MM11/LN Helical-Bevel Gearmotor

Manufacturer: SEW
Type: Helical Bevel Gear Motors
Model: KA19BDRS80S4/MM11/LN
Serial No.: 40.7366239301.0001.16

Input Speed [r/min]: 2900 – 290
Output Speed [r/min]: 183 – 18
Total Ratio [i]: 15,84
Torque Max [Nm]: 80
Output Torque [Nm]: 57
Motor Power [kW]: 1.1 / 0.11
Motor Mains Power [kW]: 0,750
Motor Frequency [Hz]: 100
Cyclic Duration Factor: S1
Setting Range (CT): 1:10
Motor Frequency Min. [Hz]: 13
Motor Voltage [V]: 380-500
Line Frequency [Hz]: 50-60
Rated Main Current [A]: 2,40
Thermal Class [°C]/Enclosure [IP]: F / 54
Ambient Temperature Min. [°C]: -20
Ambient Temperature Max. [°C]: 40
Weight [kg]: 15,3
