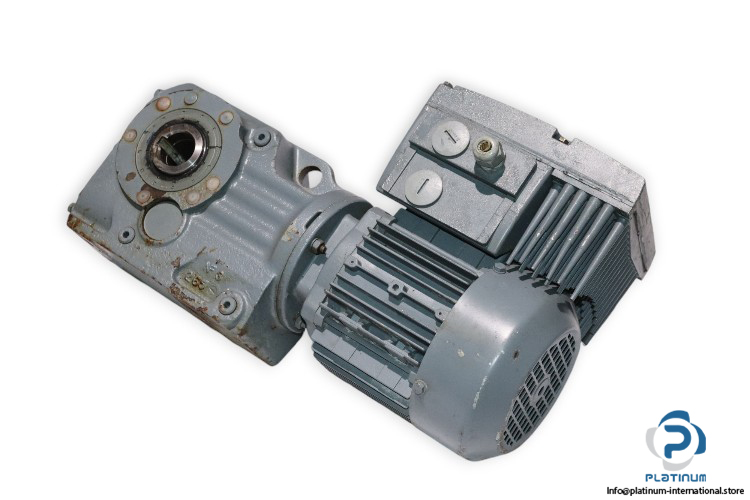

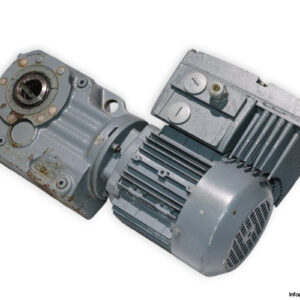

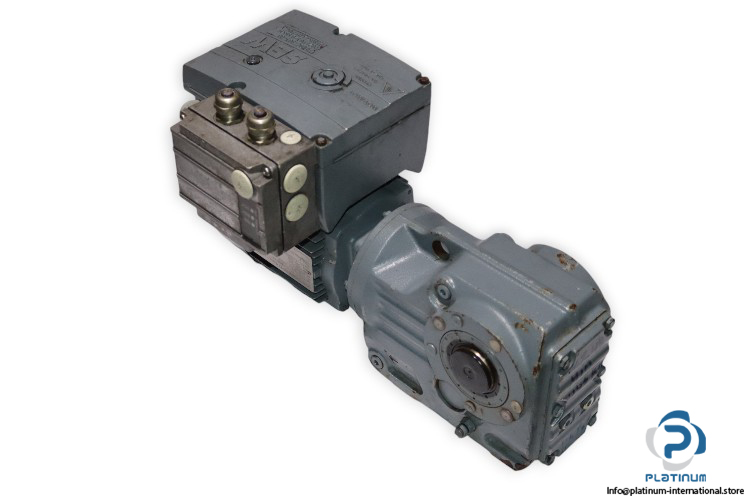

SEW KA37/T DT71D4/MM05/BW1 Helical- Bevel Gearmotor

SEW KA37/T DT71D4/MM05/BW1 HELICAL-BEVEL GEARMOTOR

The SEW KA37/T DT71D4/MM05/BW1 Helical-Bevel Gearmotor offers precision and reliability in industrial applications, with high input and output speeds, a total ratio of 58.60, and a wide range of power and torque capabilities. Designed with a hollow shaft and paired with the SEW MM05C-503-00 MOVIMOT Inverter Drive, this gearmotor is ideal for varied and demanding conditions.

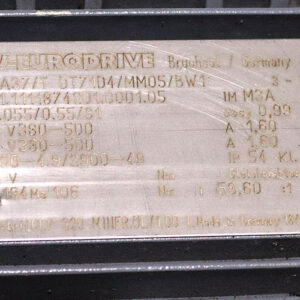

Manufacturer: SEW

Type: HELICAL-BEVEL GEARMOTOR

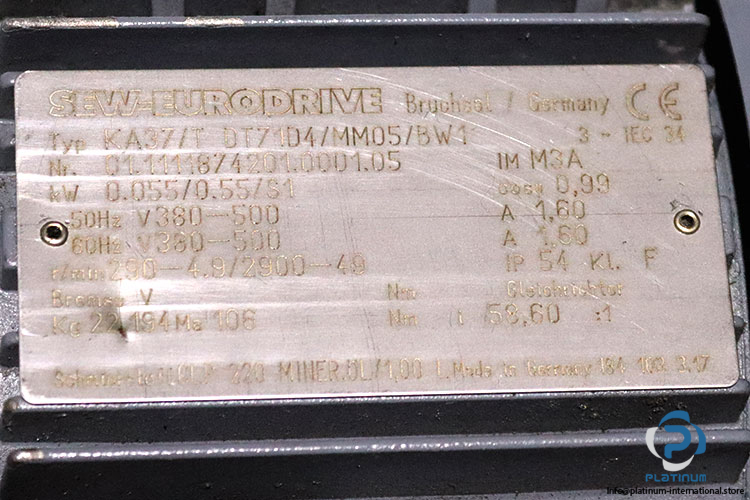

Model: KA37/T DT71D4/MM05/BW1

Part No: 01.1111874201.0001.05

Technical Specifications

• Gear Unit: KA37/T
• Input Speed [r/min]: 290 – 2900
• Output Speed [r/min]: 4.9 – 49
• Total Ratio: 58.60
• Mounting Position: M3A
• Output Torque [Nm]: 106
• Service Factor SEW-FB: 1.90
• Lubricant / Volume [l]: CLP 220 1.00
• Hollow Shaft: 30 mm
• Motor Power [kW]: 0.055 / 0.55
• Motor Frequency [Hz]: 100
• Cyclic Duration Factor S1-S10: S1
• Multi Range-Voltage 50Hz [V]: 380-500
• MM Rated Main Current [A]: 1.60
• Multi Range-Voltage 60Hz [V]: 380-500
• MM Rated O/P Current [A]: 2.00
• Thermal Class [°C] / Enclosure [IP]: F / 54

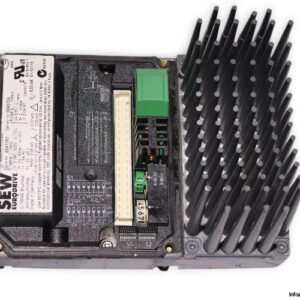

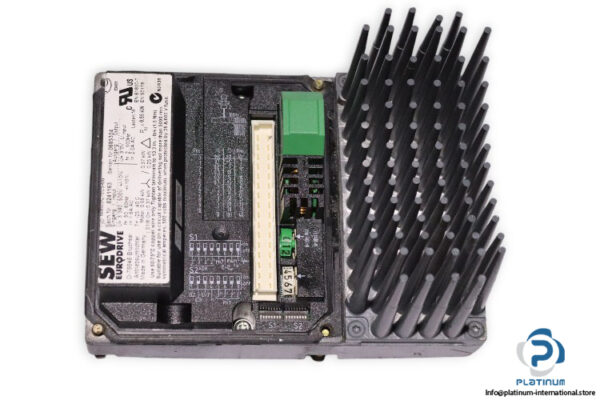

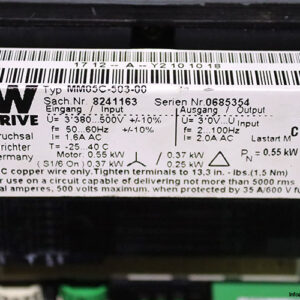

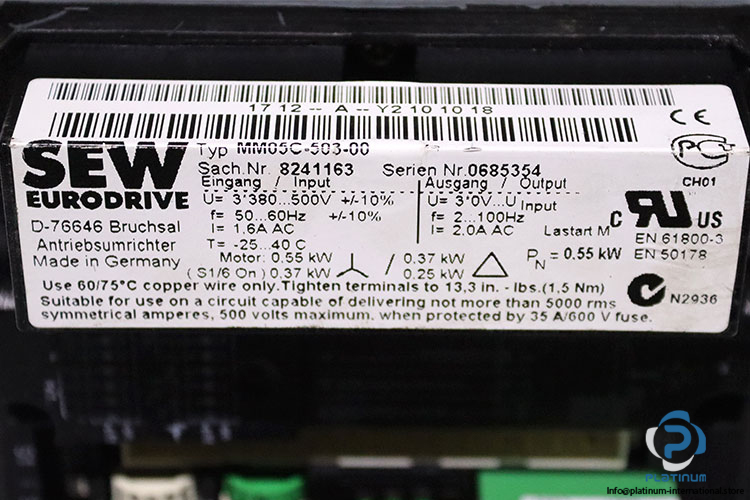

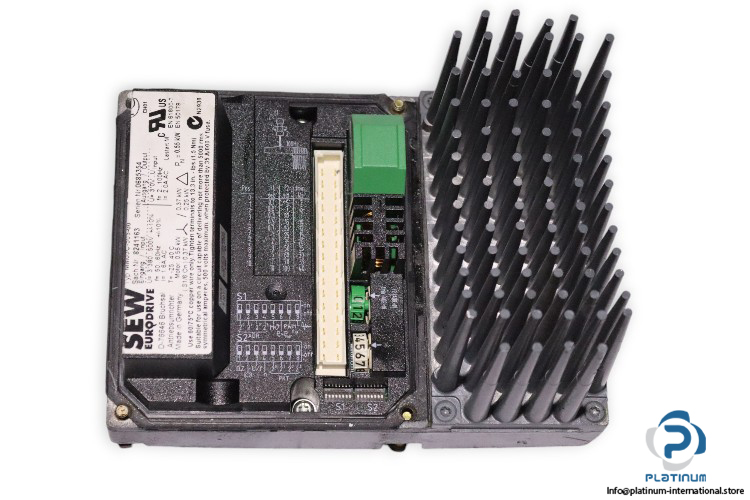

Attached with SEW MM05C-503-00 MOVIMOT INVERTER DRIVE

Input:

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.6 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 2 A
• Frequency: 2 to 100 Hz
