SEW KA47/T AM90 DRN90L4/TF/DH Bevel-Helical Gearmotor
Bevel-Helical Gearmotor
SEW-Eurodrive KA47/TAM90 DRN90L4/TF/DH bevel-helical gearmotor with IE3 efficiency, 1.5 kW power, integrated K-series gear unit, and incremental encoder for precision industrial drive systems. Ideal for conveyors, automated machinery, and industrial motion control applications.SEW-Eurodrive KA47/TAM90 DRN90L4/TF/DH Bevel-Helical Gearmotor

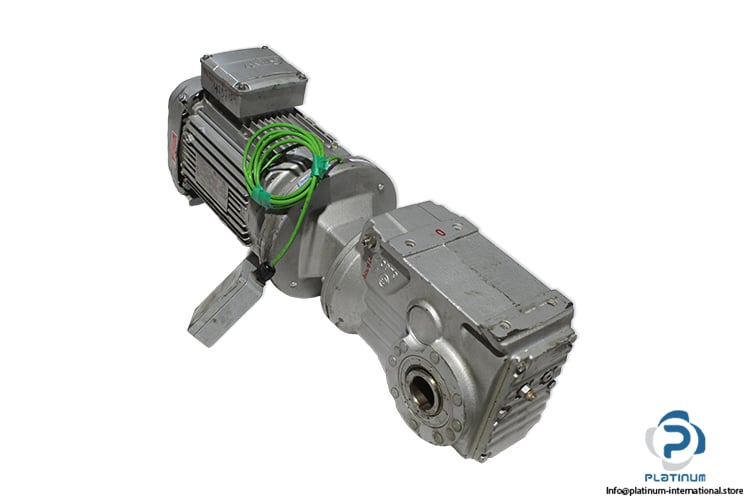

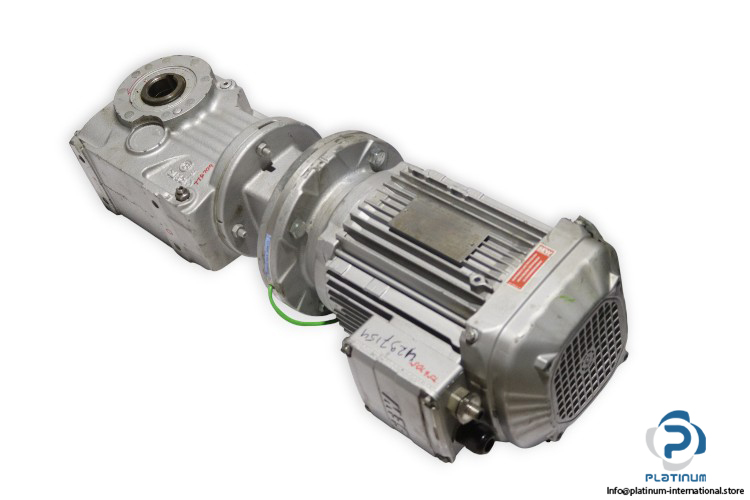

The SEW-Eurodrive KA47/TAM90 DRN90L4/TF/DH bevel-helical gearmotor combines a high-efficiency IE3 motor with a durable K-series bevel gear unit, delivering reliable torque transmission, high efficiency, and stable performance for demanding industrial drive applications.

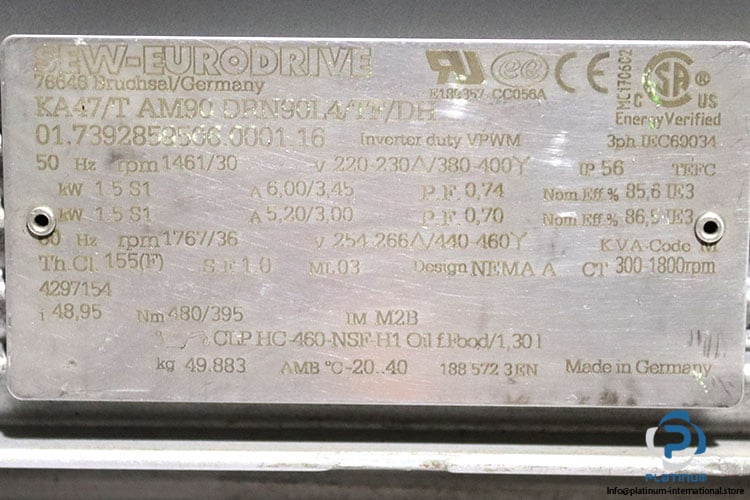

Manufacturer: SEW-Eurodrive
Type: Bevel-Helical Gearmotor
Model: KA47/TAM90 DRN90L4/TF/DH
Serial No.: 01.7392852506.0001.16
Ref. Code: 4297154
Motor Series: DRN
Motor Size: 90L
Electrical Data “ 50 Hz
Electrical Data “ 60 Hz
Gear Unit “ SEW KA47/T

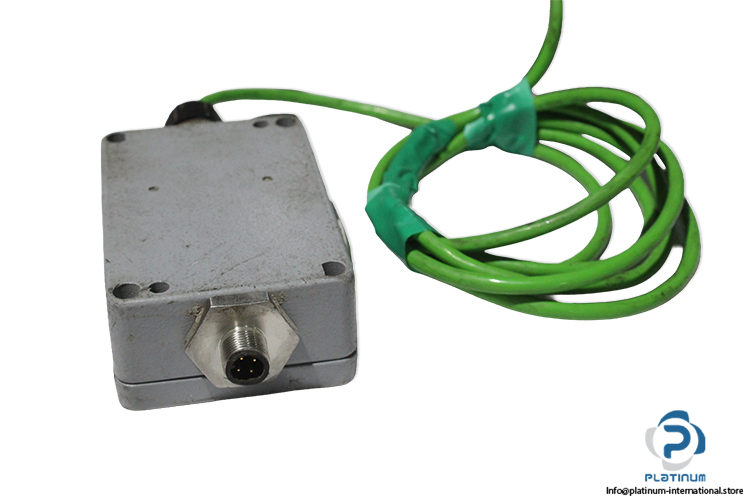

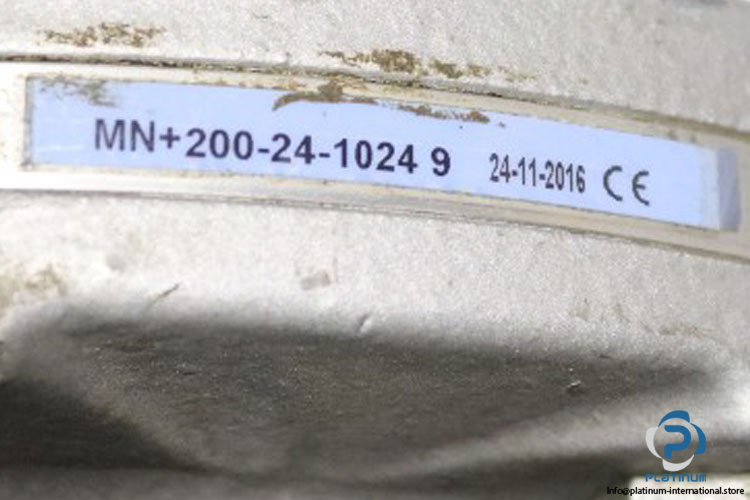

Incremental Encoder “ MN+200-24-1024 9
Recommended for conveyors, automation systems, and heavy-duty industrial drive applications requiring reliable torque and efficient speed control.
| Voltage | 220“230 V Delta / 380“400 V Star / 3-Phase |
| Power | 1.5 kW (S1) |
| Current | 6.00 / 3.45 A |
| Power Factor (P.F.) | 0.74 |
| Speed | 1461 rpm |
| Voltage | 254“266 V Delta / 440“460 V Star / 3-Phase |
| Power | 1.5 kW (S1) |
| Current | 5.20 / 3.00 A |
| Power Factor (P.F.) | 0.70 |
| Speed | 1767 rpm |
| Thermal Class | 155 (F) |
| Service Factor | S1.0 |
| Ambient Temperature | -20 to +40 °C |
| Standard | IEC 60034 |
| Protection Class | IP56 |
| Cooling | TEFC |
| Energy Efficiency | IE3 |
| No. of Poles | 4 |
| Motor Option Temperature Sensor | /TF |
| Gear Ratio | 48.95 |
| Gear Unit Series | K |
| Gear Unit Size | 47 |
| Mounting Position | M2B |
| Lubricant | CLP HC 460 “ NSF H1 Oil Fill 1.30 L |
| Design | NEMA A |
| Speed Range (Inverter Duty VPWM) | 300 “ 1800 rpm |

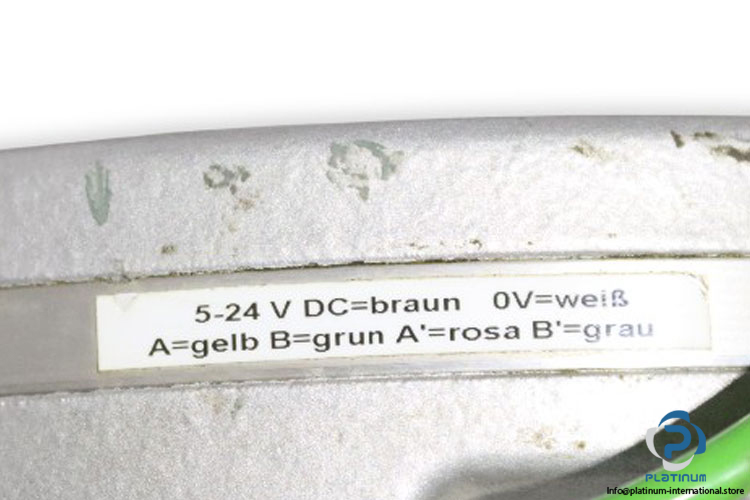

| Supply Voltage | 5“24 V DC |
| Revolution | 1024 rpm |
