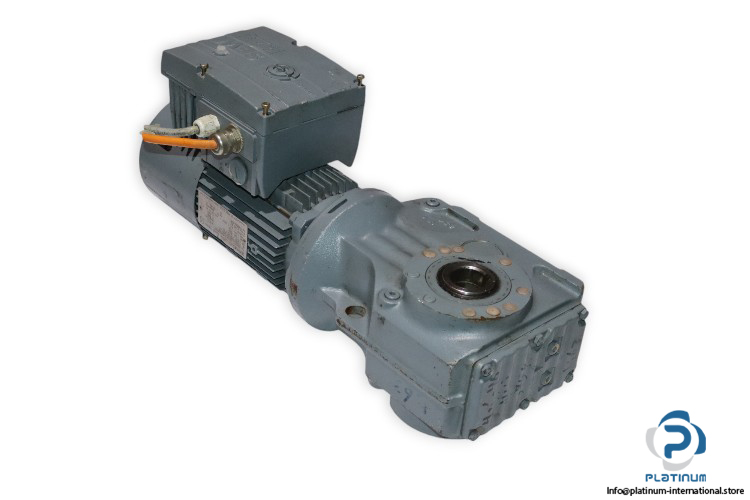

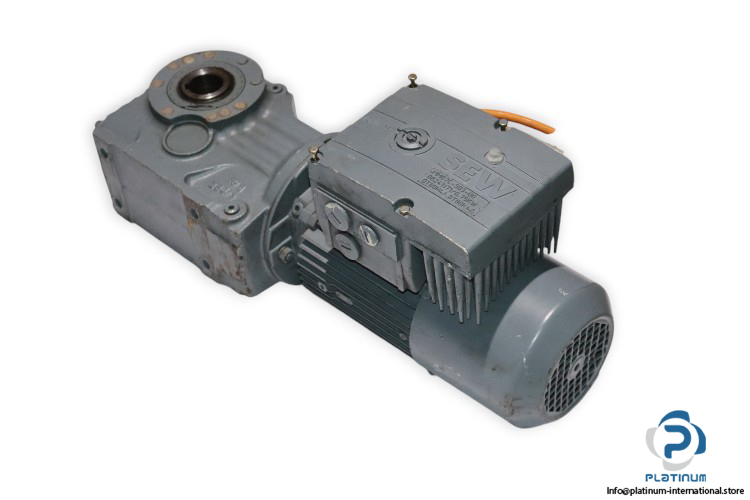

SEW KA47/T DT80K4/BMG/MM07 Helical- Bevel Gearmotor

SEW KA47/T DT80K4/BMG/MM07 HELICAL-BEVEL GEARMOTOR

The SEW KA47/T DT80K4/BMG/MM07 Helical-Bevel Gearmotor is designed for high efficiency and durability in industrial applications. It features a total ratio of 63.30, providing smooth power transmission with an output torque of 156 Nm. This gearmotor comes equipped with the SEW MM07C-503-00 MOVIMOT Inverter Drive for enhanced control and performance.

Manufacturer: SEW

Type: HELICAL-BEVEL GEARMOTOR

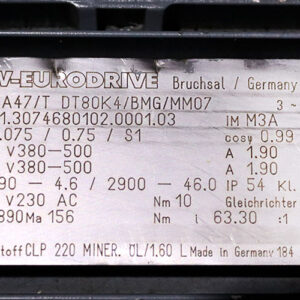

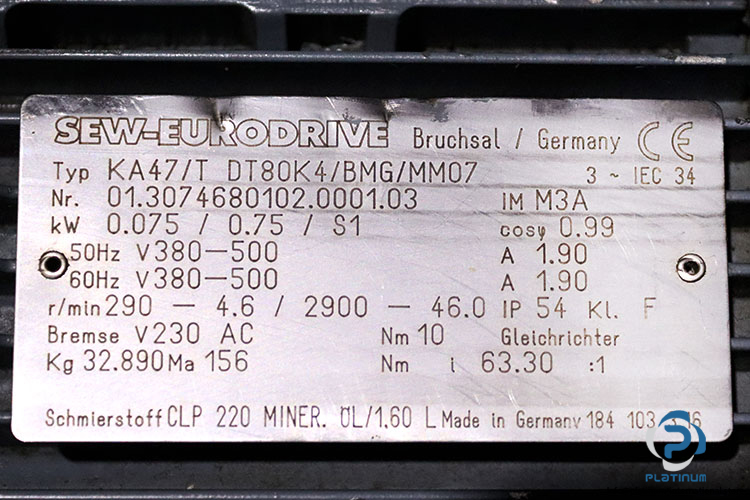

Model: KA47/T DT80K4/BMG/MM07

Part No: 01.3074680102.0001.03

Technical Specifications

• Gear Unit: KA47/T
• Input Speed [r/min]: 290 – 2900
• Output Speed [r/min]: 4.6 – 46.0
• Total Ratio: 63.30
• Mounting Position: M3A
• Output Torque [Nm]: 156
• Service Factor SEW-FB: 2.60
• Lubricant / Volume [l]: CLP 220 1.60
• Hollow Shaft: 35mm
• Design: Hollow shaft
• Motor Power [kW]: 0.075 / 0.75
• Motor Frequency [Hz]: 100
• Cyclic Duration Factor S1-S10: S1
• Multi Range-Voltage 50Hz [V]: 380-500
• MM Rated Main Current [A]: 1.90
• Multi Range-Voltage 60Hz [V]: 380-500
• MM Rated O/P Current [A]: 2.50
• Thermal Class [°C]/Enclosure [IP]: F / 54
• Brake Voltage [V]/Torque [Nm]: 230 AC / 10

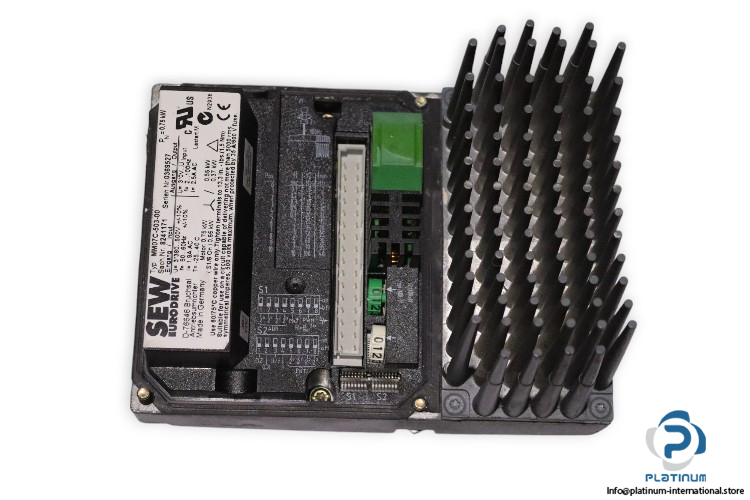

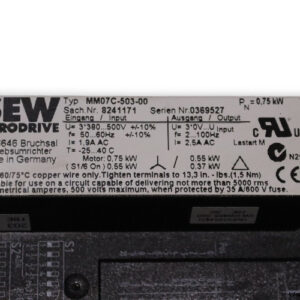

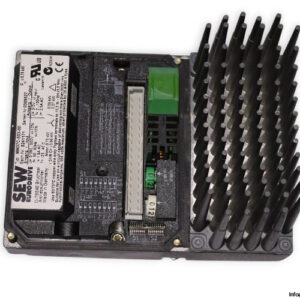

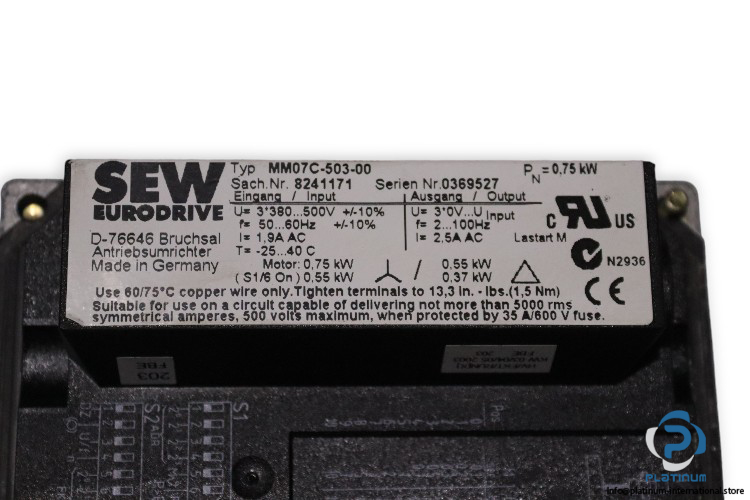

Attached with: SEW MM07C-503-00 MOVIMOT INVERTER DRIVE

Input:

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.9 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 2.5 A
• Frequency: 2 to 100 Hz
