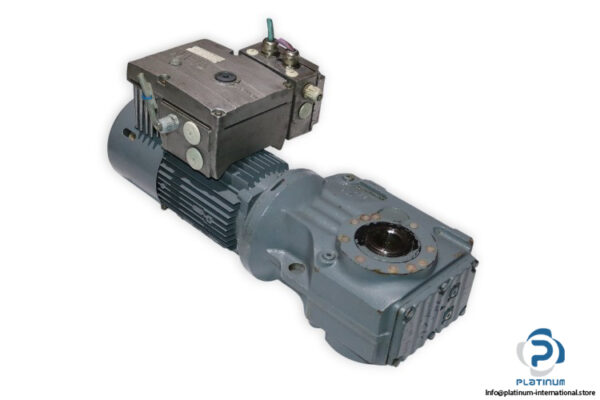

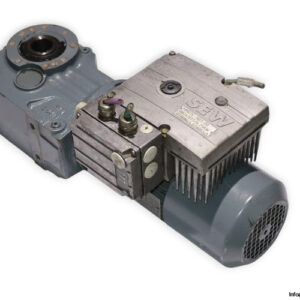

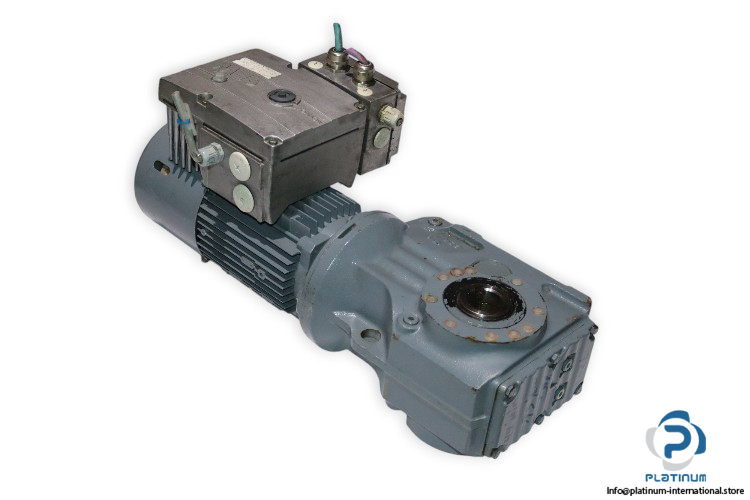

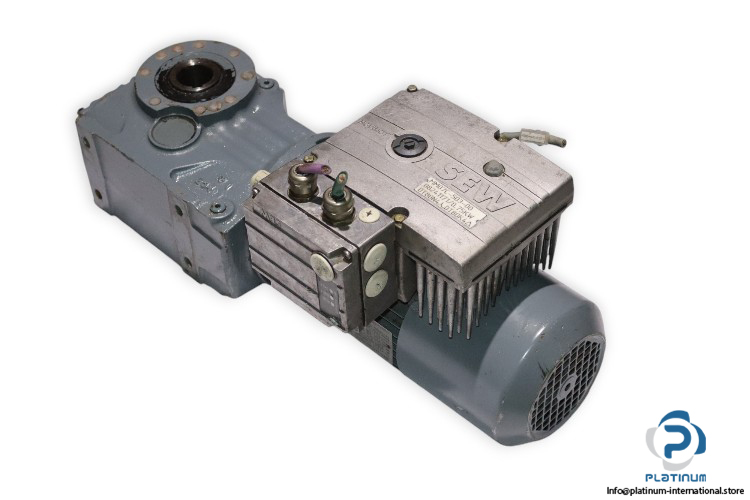

SEW KA47/T DT80N4/BMG/HR/Z Helical- Bevel Gearmotor

SEW KA47/T DT80N4/BMG/HR/Z HELICAL-BEVEL GEARMOTOR

The SEW KA47/T DT80N4/BMG/HR/Z Helical-Bevel Gearmotor is designed for high-efficiency and durable performance. With a total ratio of 31.30 and a motor power of 0.75 kW, it offers reliable power transmission and is suitable for a wide range of industrial applications. The gearmotor includes a hollow shaft of 35mm and operates at a motor voltage of 230/400V with a motor frequency of 50Hz.

Manufacturer: SEW

Type: HELICAL-BEVEL GEARMOTOR

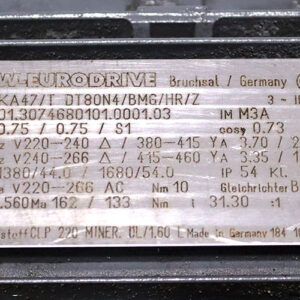

Model: KA47/T DT80N4/BMG/HR/Z

Part No: 01.3074680101.0001.03

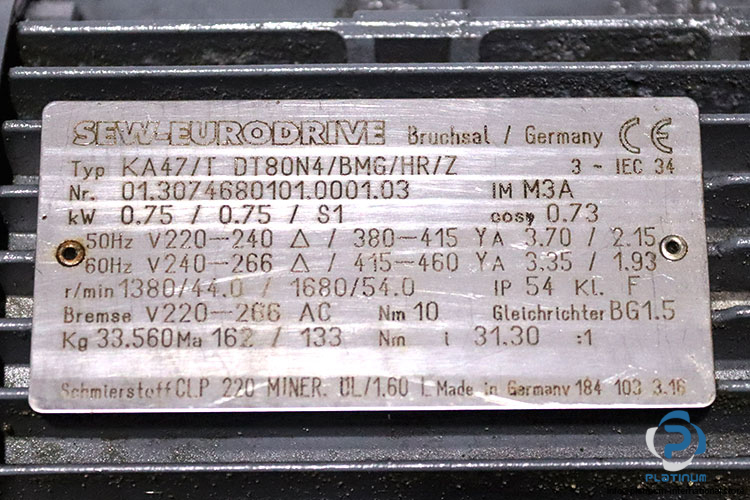

Technical Specifications

• Gear unit: KA47/T
• Speed [r/min]: 1380 / 44.0, 1680 / 54.0
• Total ratio: 31.30
• Mounting position: M3A
• Output torque [Nm]: 162 / 133
• Service factor SEW-FB: 2.50 / 3.00
• Lubricant / volume [l]: CLP 220 1.60
• Hollow shaft: 35mm
• Design: Hollow shaft
• Motor power [kW]: 0.75 / 0.75
• Motor frequency [Hz]: 50
• Cyclic duration factor S1-S10: S1
• Motor voltage [V] / connection type: 230/400 delta/star
• Multi-range voltage 50Hz [V]: 220-240 delta / 380-415 star
• Nominal current [A]: 3.70 / 2.15
• Multi-range voltage 60Hz [V]: 240-266 delta / 415-460 star
• Nominal current [A]: 3.35 / 1.93
• Thermal cl. [°C] / Enclosure [IP]: F / 54
• Brake voltage [V] / torque [Nm]: 230 AC / 10
• Brake rectifier: BG1.5

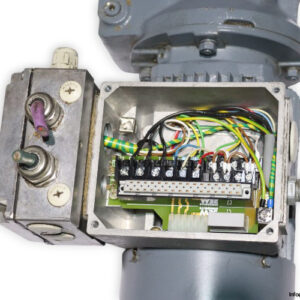

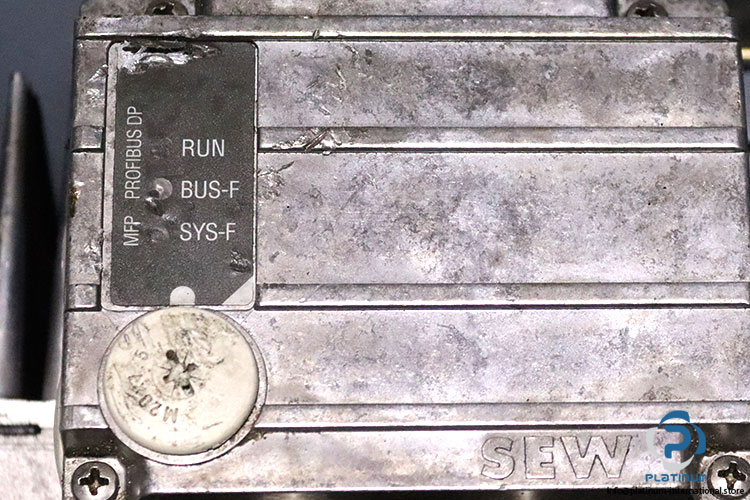

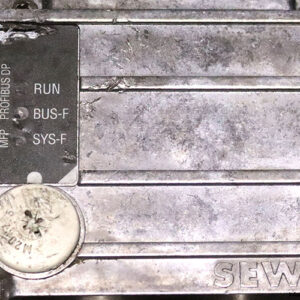

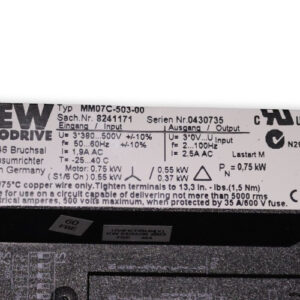

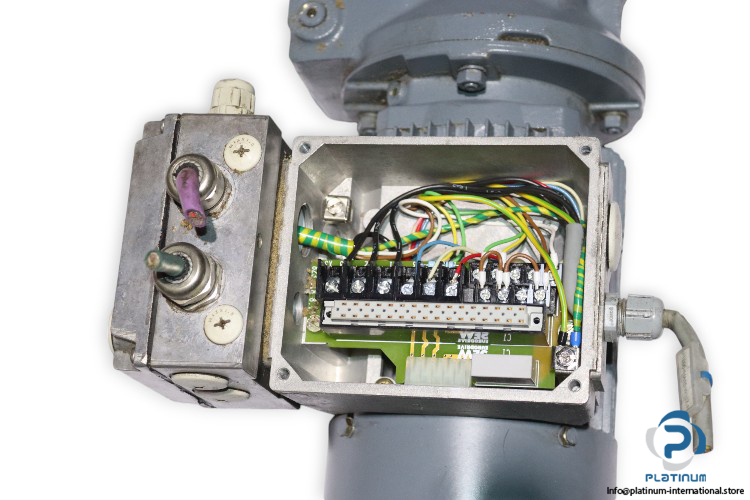

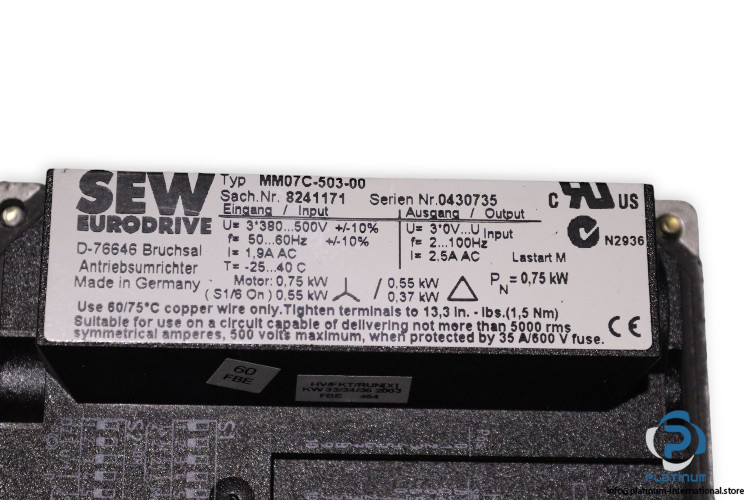

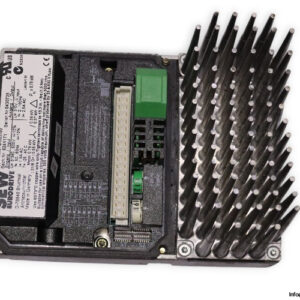

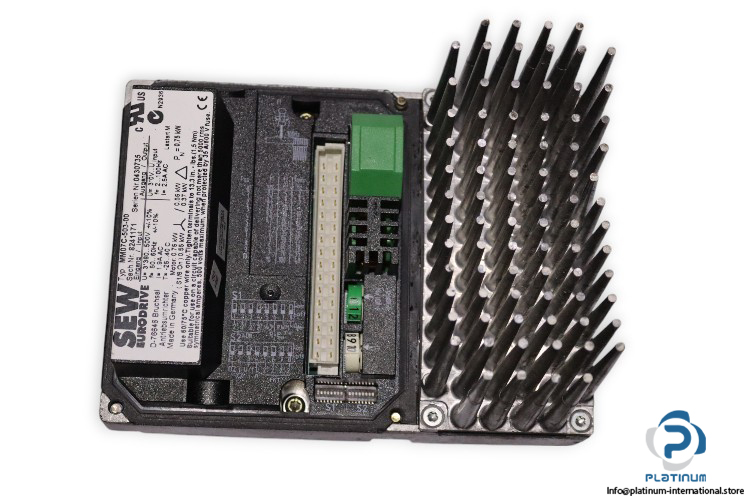

• Attached with: SEW MM07C-503-00 MOVIMOT INVERTER DRIVE

Input:

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.9 A
• Frequency: 50 / 60 Hz

Output:

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 2.5 A
• Frequency: 2 to 100 Hz
