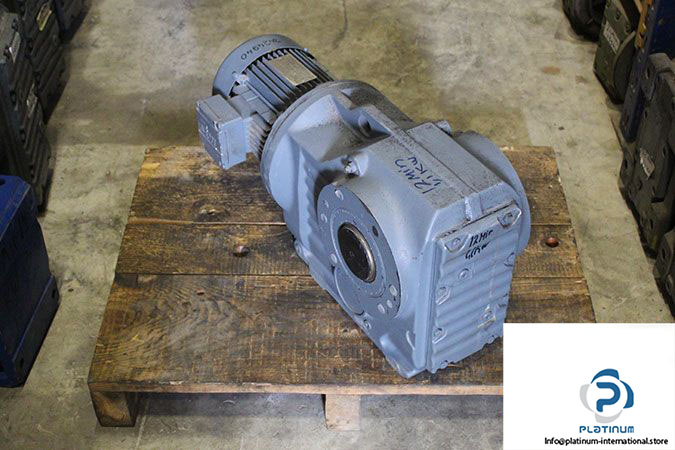

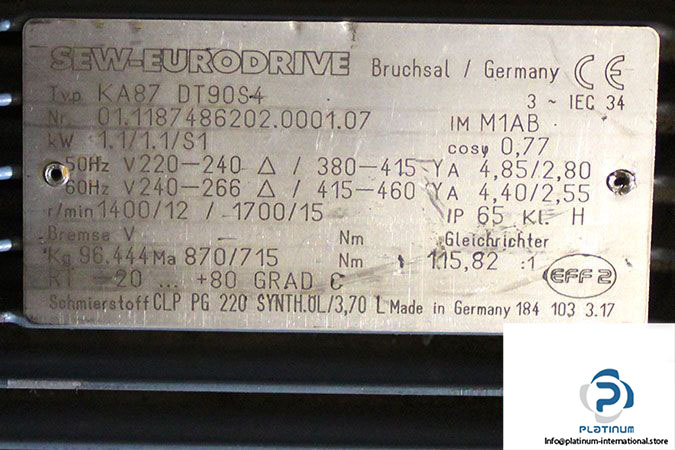

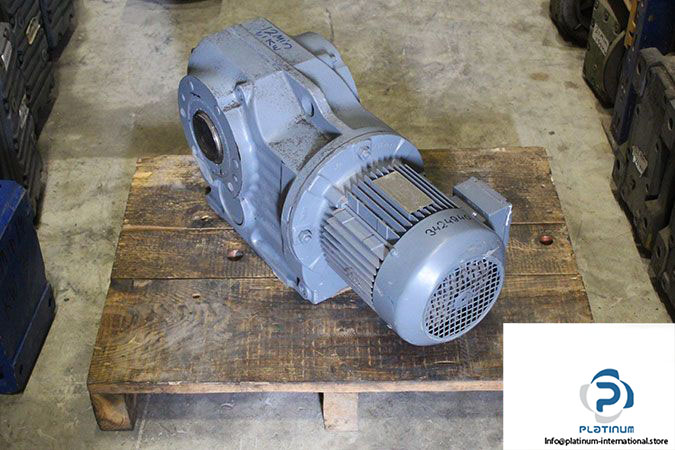

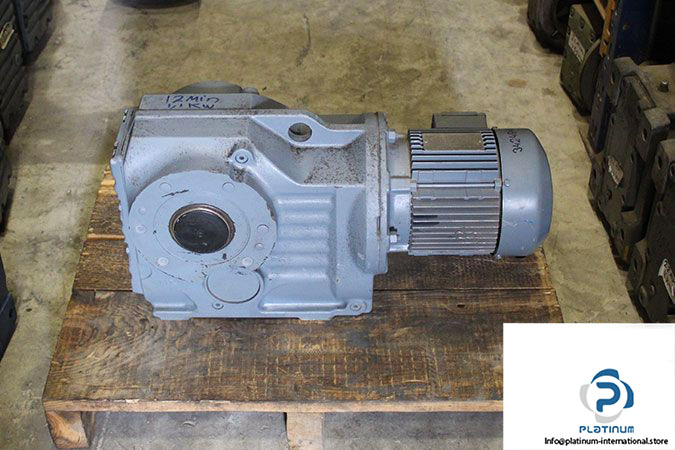

SEW KA87 DT90S4 Helical Bevel Gearmotor

Manufacturer: Sew-Eurodrive

Type: Helical Bevel Gearmotor

Model: KA87DT90S4

Sew KA87Gear

Gear Type (KA): Helical Bevel Gear Unit, Hollow Shaft

Gear Box Size: 87

Ratio: 115.82

Torque at 50 Hz: 870 Nm

Torque at 60 Hz: 715 Nm

Hollow Diameter: 60 mm

Ambient temperature: -20…80 °C

Lubrication: CLP PG 220

Oil Quantity: 3.7 L

Sew DT90S4 AC Motor

Motor Size: 90

No. of Pole: 4

At 50 Hz

Nominal Voltage (Delta): 220…240 V

Nominal Voltage (Star): 380…415 V

Rated Current (Delta): 4.85 A

Rated Current (Star): 2.8 A

Rated Power: 1.1 kW

Motor Speed: 1400 r/min

Gear Unit Output Speed: 12 r/min



At 60 Hz

Nominal Voltage (Delta): 240…266 V

Nominal Voltage (Star): 415…460 V

Rated Current (Delta): 4.4 A

Rated Current (Star): 2.55 A

Rated Power: 1.1 kW

Motor Speed: 1700 r/min

Gear Unit Output Speed: 15 r/min

Power Factor: 0.77 %

Operating Mode: S1

Insulation Class: H

Mounting Position: M1AB

Degree of Protection: IP65

Gross Weight: 98 kg
