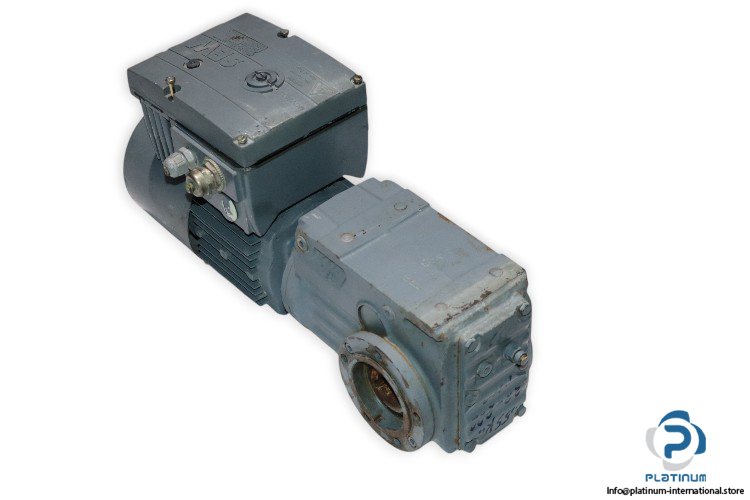

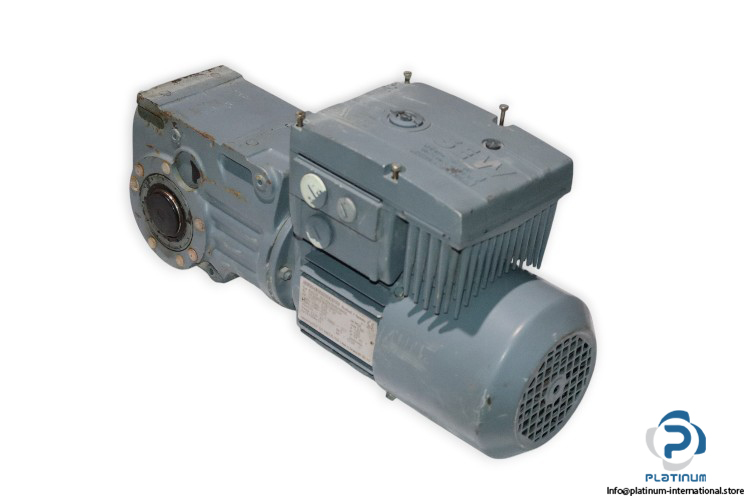

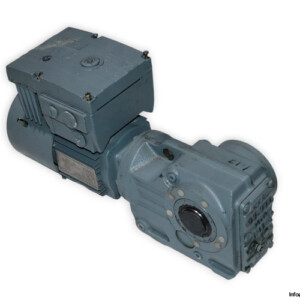

SEW KAZ37 DT71D4/BMG/MM05 Helical- Bevel Gearmotor

SEW KAZ37 DT71D4/BMG/MM05 HELICAL-BEVEL GEARMOTOR

The SEW KAZ37 DT71D4/BMG/MM05 Helical-Bevel Gearmotor is engineered for precision and durability, offering efficient power transmission with a 13.08 total ratio, 24 Nm output torque, and high reliability in demanding applications.

Manufacturer: SEW

Type: HELICAL-BEVEL GEARMOTOR

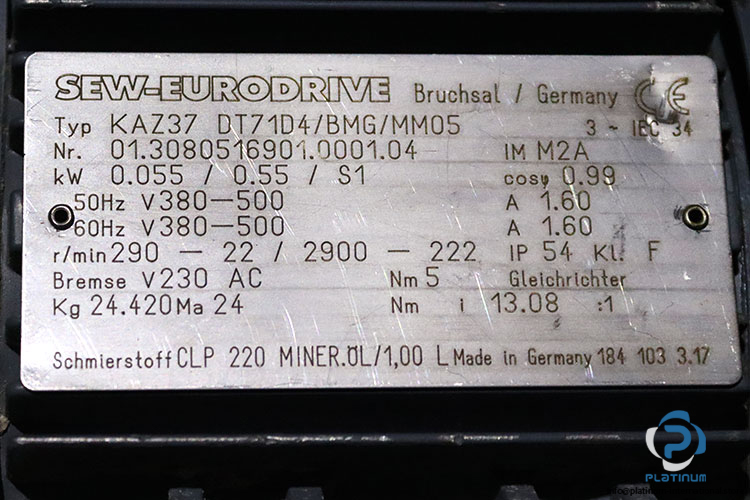

Model: KAZ37 DT71D4/BMG/MM05

Part No: 01.3080516901.0001.04

Technical Specifications

• Gear Unit: KAZ37
• Input Speed [r/min]: 290 – 2900
• Output Speed [r/min]: 22 – 222
• Total Ratio: 13.08
• Mounting Position: M2A
• Output Torque [Nm]: 24
• Service Factor SEW-FB: 7.00
• Lubricant / Volume [l]: CLP 220 / 1.00
• Hollow Shaft: 30 mm
• Design: B14-flange-mounted version and hollow shaft
• Flange: 80mm centering shoulder
• Motor Power [kW]: 0.055 / 0.55
• Motor Frequency [Hz]: 100
• Cyclic Duration Factor S1-S10: S1
• Multi Range Voltage 50Hz [V]: 380-500
• MM Rated Main Current [A]: 1.60
• Multi Range Voltage 60Hz [V]: 380-500
• MM Rated O/P Current [A]: 2
• Thermal Class [°C] / Enclosure [IP]: F / 54
• Brake Voltage [V] / Torque [Nm]: 230 AC / 5

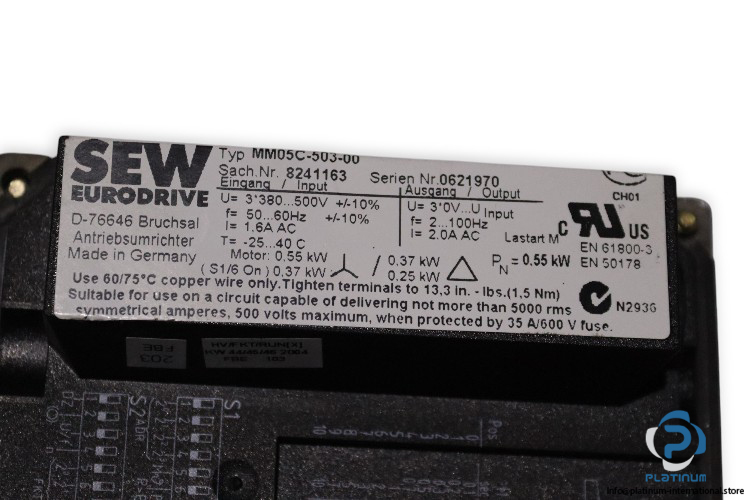

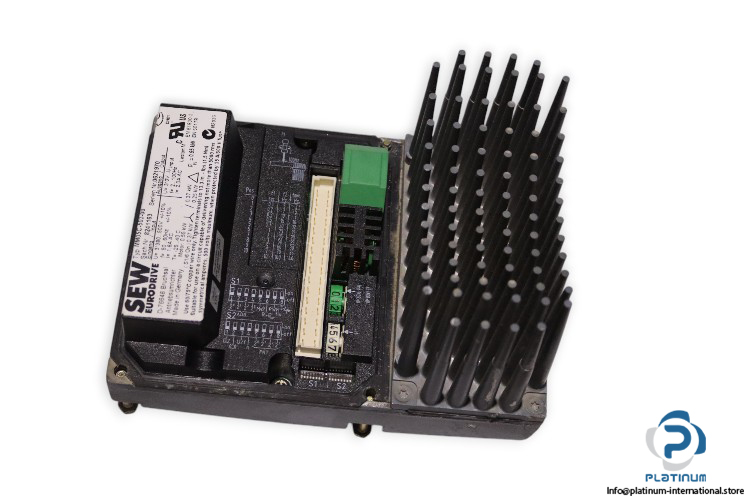

• Attached with: SEW MM05C-503-00 MOVIMOT INVERTER DRIVE

Input

• Supply Voltage: 3-Phase 380 to 500 V AC
• Rated Current: 1.6 A
• Frequency: 50 / 60 Hz

Output

• Rated Voltage: 3-Phase 0 / 380 to 500 V AC
• Rated Current: 2 A
• Frequency: 2 to 100 Hz
