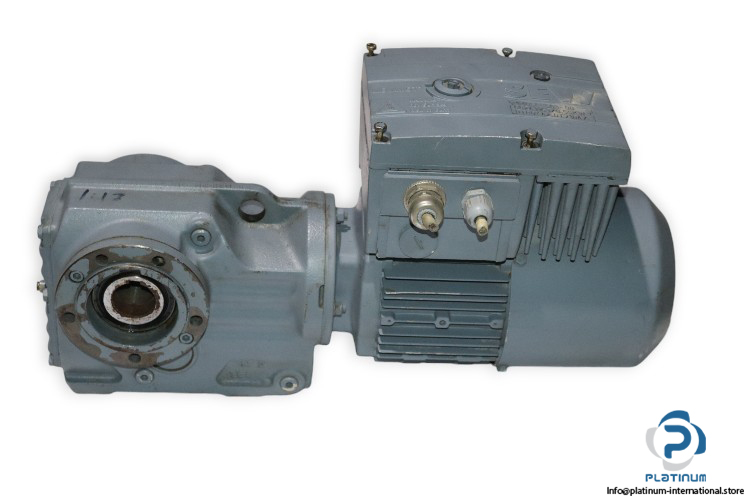

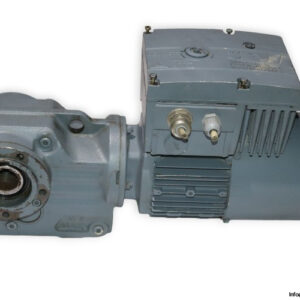

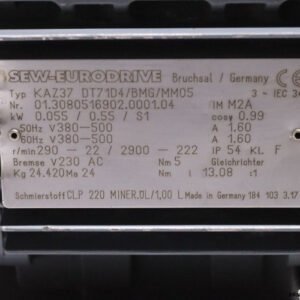

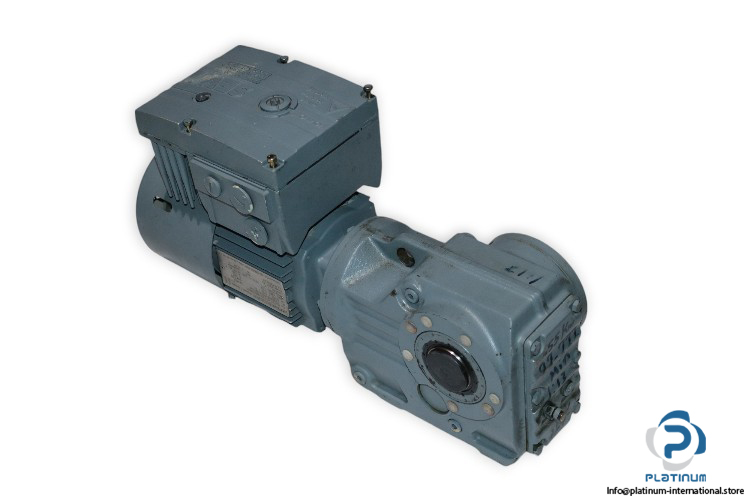

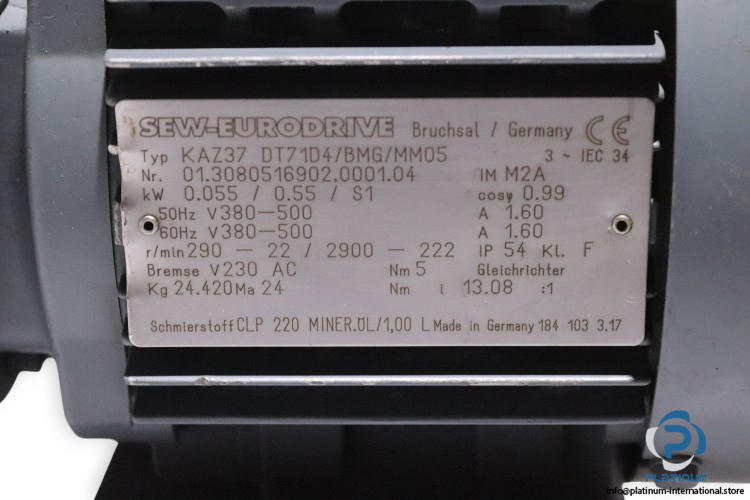

SEW KAZ37 DT71D4_BMG_MM05 Helical-Bevel Gear Motor

Manufacturer:  Sew-Eurodrive
Type: Helical Bevel Gear Motor
Model:  KAZ37 DT71D4/BMG/MM05
Part Number: 01.3080516902.0001.04

Inverter Type: MM05C-503-00
Gear Unit: KAZ37
Input Speed (r/min):290-2900
Output Speed (r/min): 22-222
Total Ratio (i): 13,08
Output Torque (Nm): 24
Service Factor SEW-FB: 7,00
Mounting Position: M2A
Lubricant / -Volume (l): CLP 220 1,00
Hollow shaft(mm): 30
Design: B14-flange-mounted version and hollow shaft
Lubricant volume (l): 1,00
Motor Power (kW): 0.055/0.55
Motor Frequency (Hz): 50/60
Motor Voltage 50Hz (V): 380-500
Motor Voltage 60Hz (V): 380-500
MM rated main current (A): 1,60
MM rated OP current (A):2,00
Thermal Class/Enclosure (IP): F/54
Ambient temperature motor(°C): -25 BIS +40
International efficiency class: IEC34-1
Acc. feat. brake/brake release: BMG
Brake voltage [V]/-torque (Nm): 230 AC / 5
Brake rectifier: without

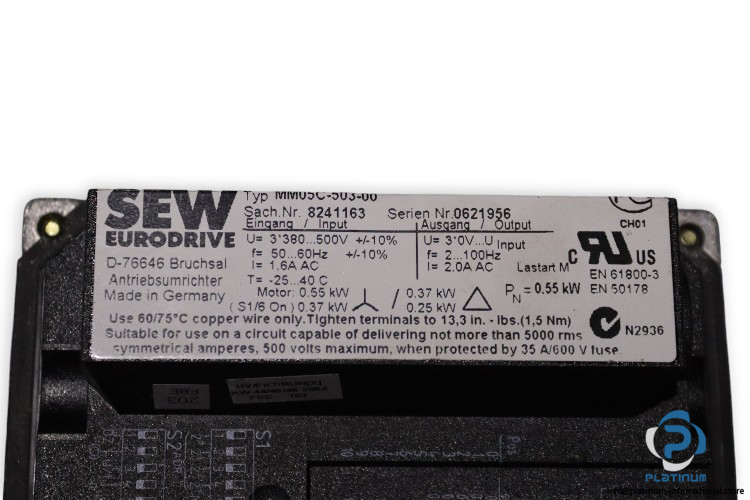

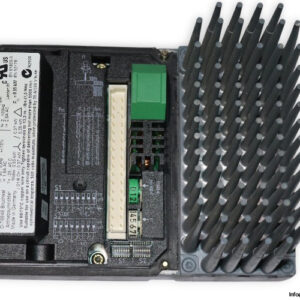

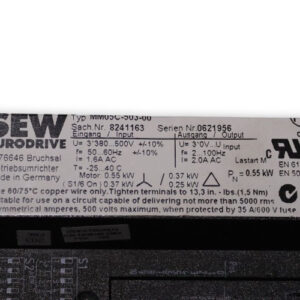

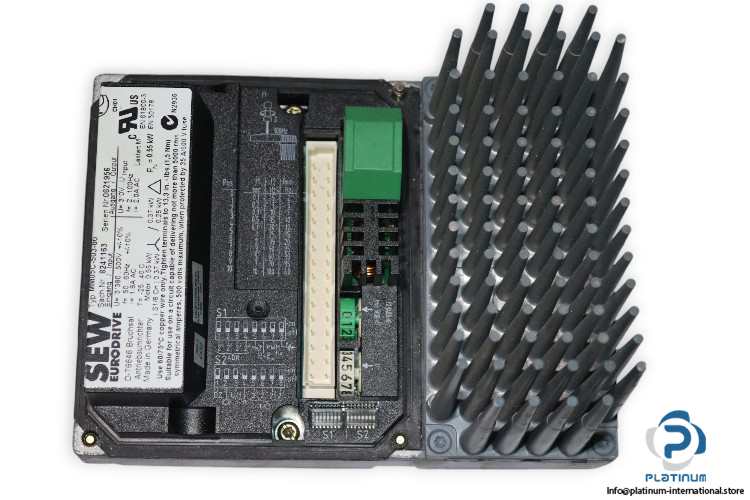

Inverter Type:  MM05C-503-00
System: FREQUENCY INVERTER
Motor Power (Kw): 0,55
Rated Voltage Input (V): 3X380-500 +/-10%
Rated Current Input (A): 1,6
Frequency Input (Hz): 50-60
Ambient Temperature Inverter (°C): -25 – +40
Rated Voltage Output (V): 3×0 – U input
Rated Current Output (A): 2
Frequency Output (Hz): 2-100
