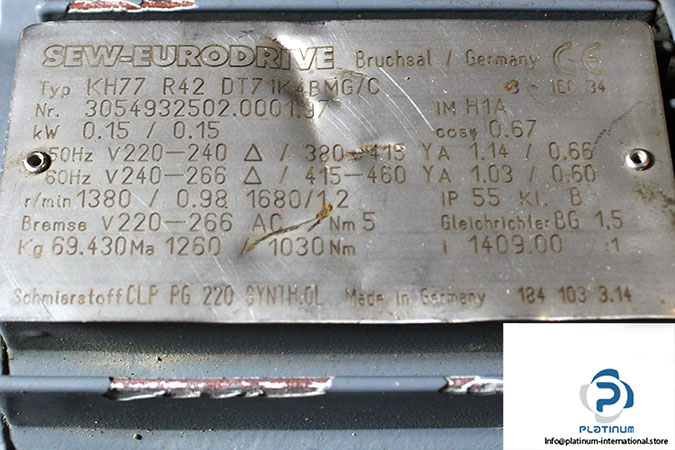

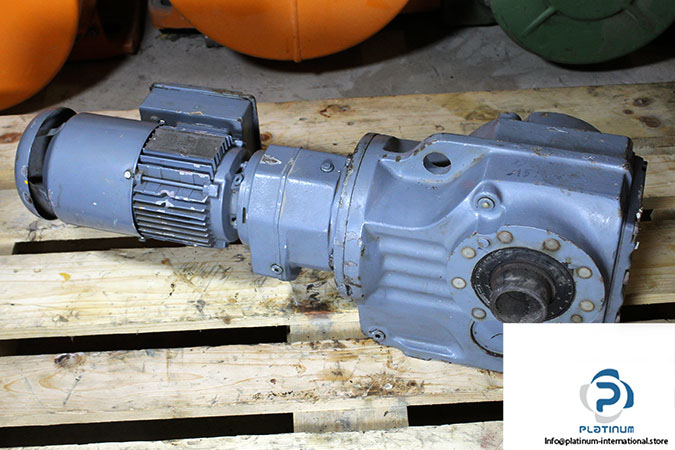

SEW KH77 R42 DT71K4BMG/C Gearmotor

Manufacturer: Sew-Eurodrive
Type: Gear Motors
Model: KH77R42 DT71K4BMG/C

Speed at 50Hz [r/min]: 1380/0.98
Speed at 60Hz [r/min]: 1380/1.2
Total Ratio [i]: 1409.00
Rated Torque [Nm]: 1260/1030
Motor Power [kW]: 0.15/0.15
Rated Voltage at 50Hz [V]: 220-240/380-415 Delta/Star
Rated Voltage at 60Hz [V]: 240-266/415-460
Rated Current at 50Hz [A]: 1.14/0.66 Delta/Star
Rated Current at 60Hz [A]: 1.03/0.60
Frequency [Hz]: 50/60
Cos Phi: 0.67
Thermal Class: B
Enclosure [IP]: 55
Brake: BG1.5
Brake Voltage [V]: 220-266
Brake Torque [Nm]: 5
Weight [kg]: 67,9
