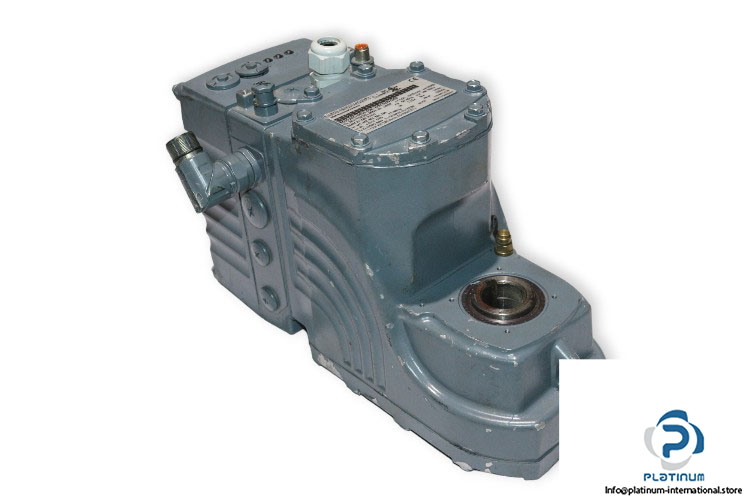

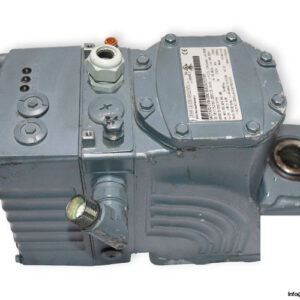

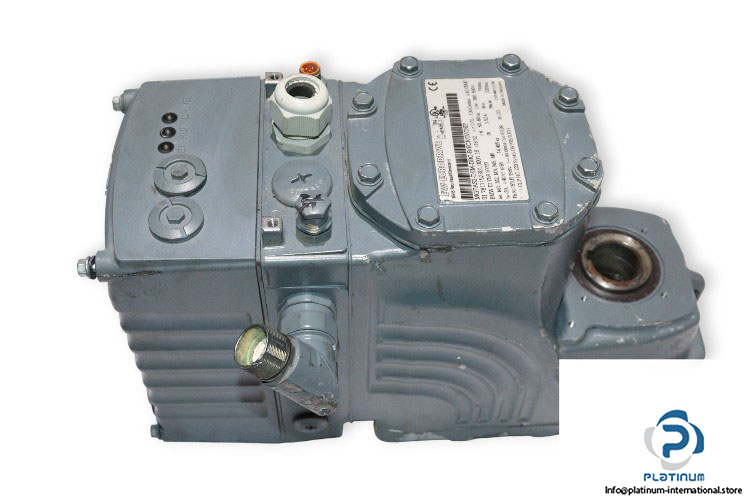

SEW MGFAS2-DSM-DBC-B/ECR/IV/DSP Movigear

Manufacturer: Sew
Type: Movigear
Model: MGFAS2-DSM-DBC-B/ECR/IV/DSP
Serial No.: 01.7817152301.0001.19

Speed Ratio [i]: 1/2000
Output Speed [rpm]: 0.05-108.0
Output Torque [Nm]: 74
Peak Torque [Nm]: 220
Ratio [i]: 18,52
Mounting Position: M1, M2, M4, M5, M6
Rated Supply Frequency [Hz]: 50-60 +/- 5%
Supply Voltage [V]: 3×380-500 -5% / +10%
Rated Supply Current [A]: 1.52
Nominal Input Current [A]: 1.52
Cos Phi: 0,99
Thermal Class: F
International Efficiency class: IE4
Efficiency (100% Pn) [%]: 86,3
Enclosure [IP]: 65
Ambient Temperature Min [°C]: -20
Ambient Temperature Max [°C]: +40
