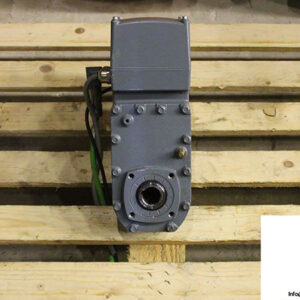

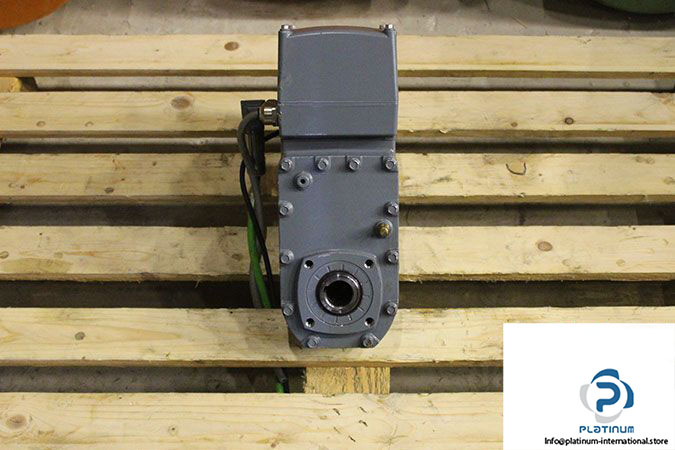

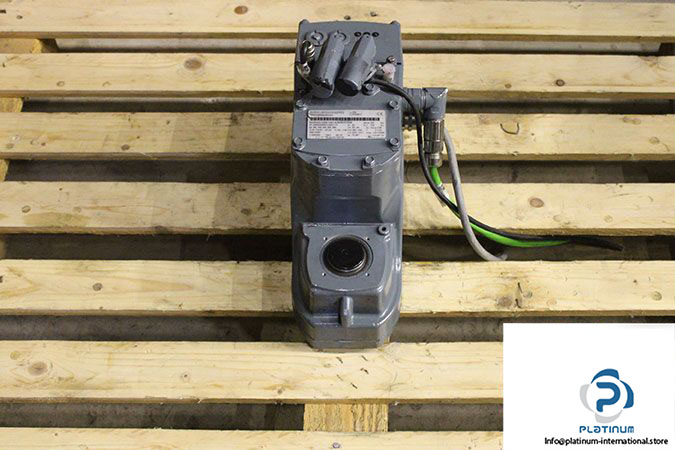

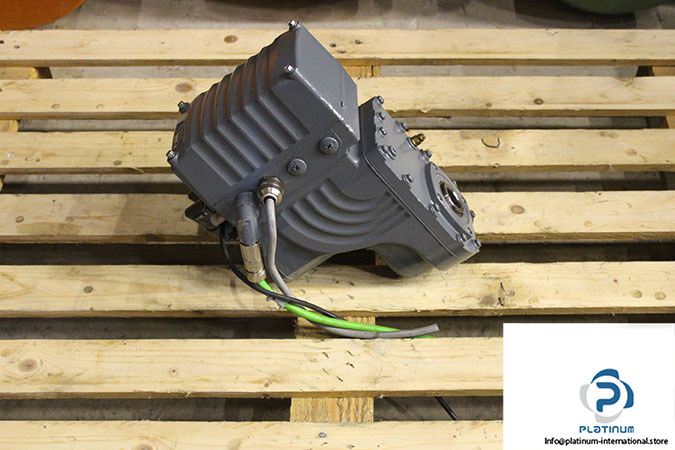

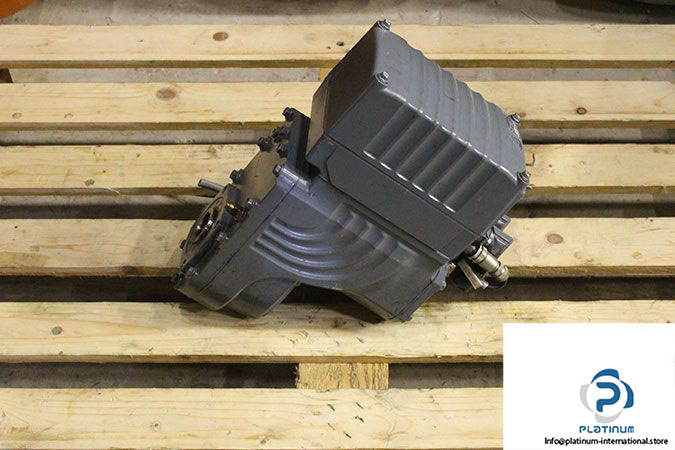

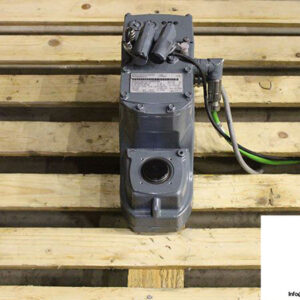

SEW MGFAT2-DSM-DBC-B/ECR/IV/DSP Parallel Shaft Helical Gear Unit

Manufacturer: Sew-Eurodrive

Type: Parallel Shaft Helical Gear Unit

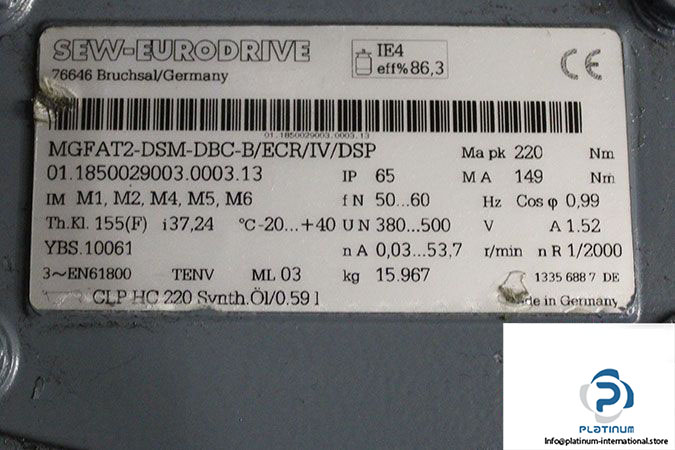

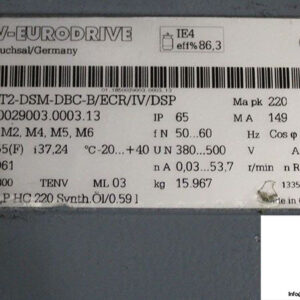

Model: MGFAT2-DSM-DBC-B/ECR/IV/DSP

Serial Number: 01.1850029003.0003.13

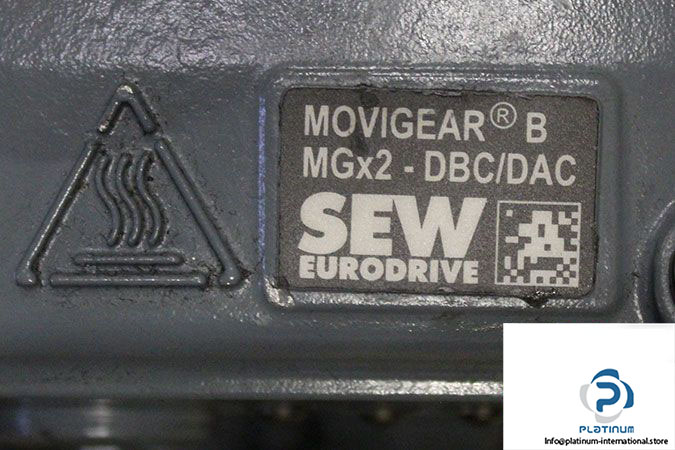

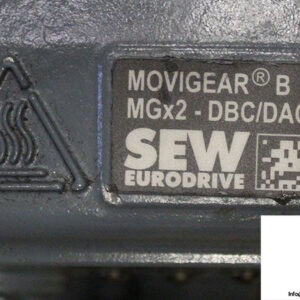

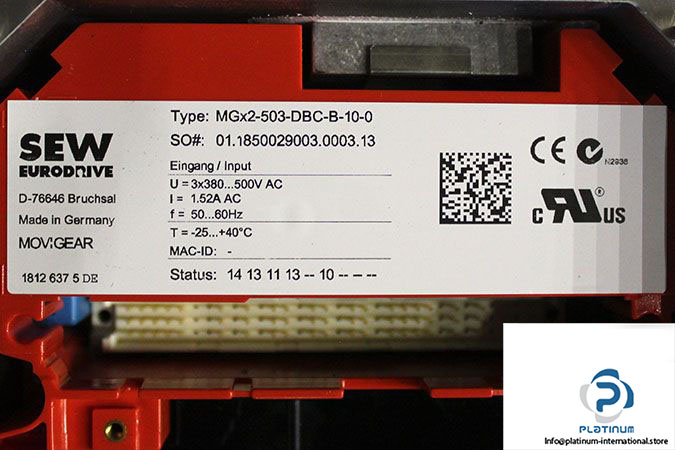

MOVIGEAR Type: MGx2-503-DBC-B-10-0

Control Range: Extended

Speed Ratio [SR]: 1/2000

Output Speed [rpm]: 0.03-53.7

Output Torque [Nm]: 149

Peak Torque [Nm]: 220

Ratio [i]: 37,24

Mounting Position: M1, M2, M4, M5, M6

Shaft Design: Hollow Shaft with Key Connection

Shaft Geometry [mm]: 30

Lubricant / Volume [l]: CLP HC 220 Synth.Oil / 0,59

Communication: DBC, Direct Binary Communication

Rated Supply Frequency [Hz]: 50-60 +/- 10%

Supply Voltage [V]: 3×380-500 -5% / +10%

Rated Supply Current [A]: 1.52

cos phi: 0,99

Thermal Class: 155(F)

International Efficiency Class: IE4

Efficiency [%]: 86,3

Enclosure [IP]: 65

Ambient Temperature [°C]: -20…+40

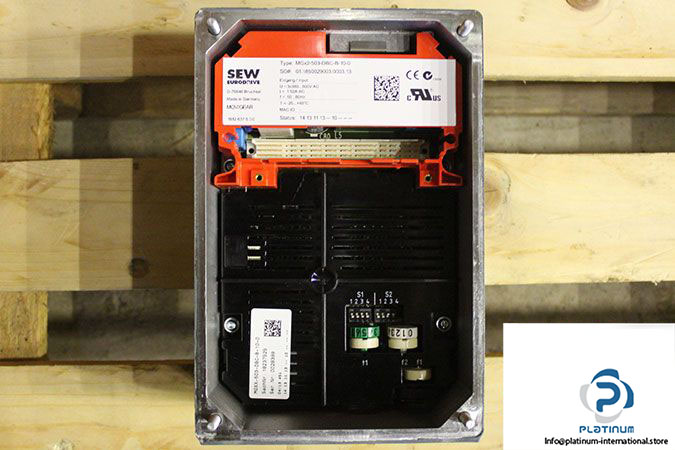

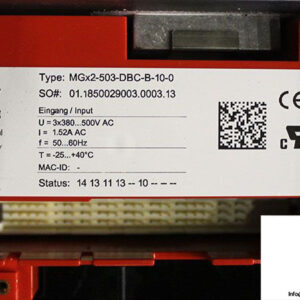

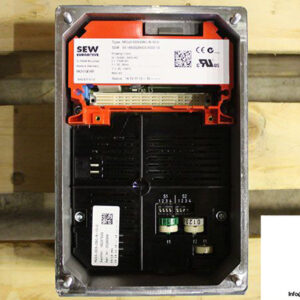

Inverter Type: MOVIGEAR

Rated Voltage Input [V]: 3×380…500 AC

Rated Current Input [A]: 1.52 AC

Frequency Input [Hz]: 50…60

Ambient Temperature Inverter [°C]: -25…+40

Weight [kg]: 16.0
