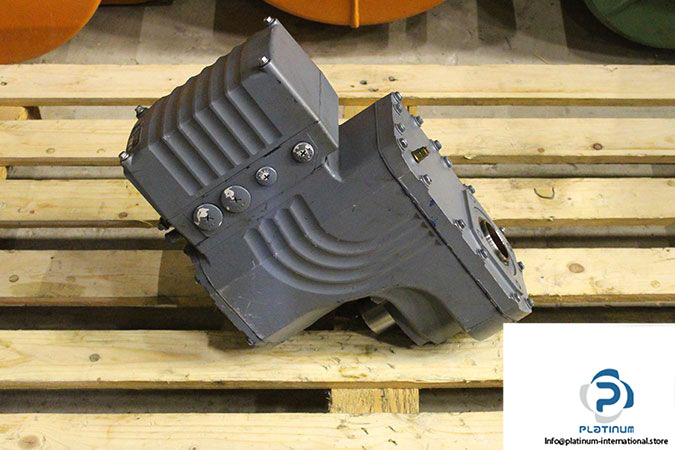

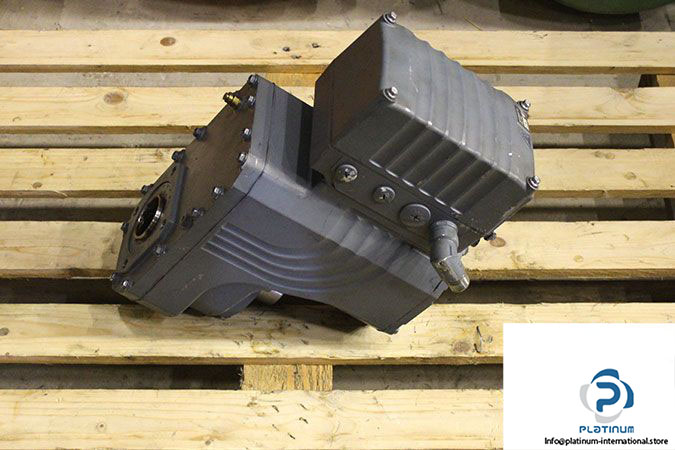

SEW MGFTT4-DSM-DBC-B/ECR/IV/DSP Parallel Shaft Helical Gear Unit
Manufacturer: Sew-Eurodrive
Type: Parallel Shaft Helical Gear Unit

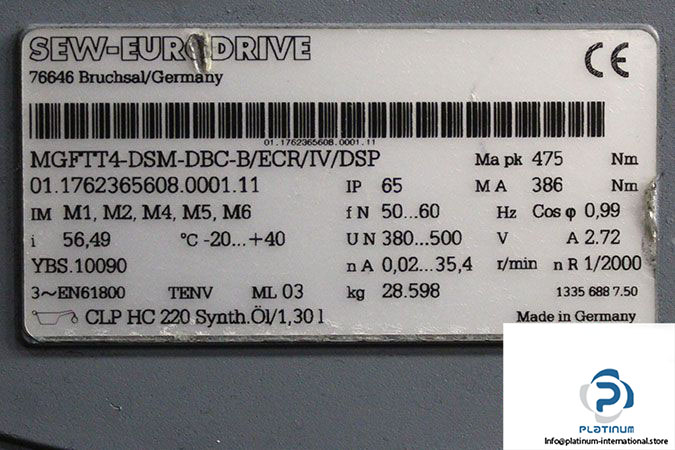

Model: MGFTT4-DSM-DBC-B/ECR/IV/DSP
Serial Number: 01.1762365608.0001.11

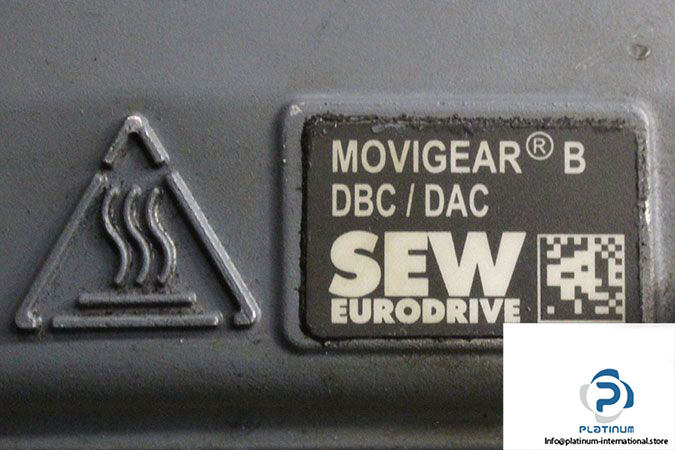

MOVIGEAR Type: MGx4-503-DBC-B-10-0
Control Range: Extended
Paint Coat: Top Coat RAL7031 (Blue Grey)
Speed Ratio [SR]: 1/2000
Output Speed [rpm]: 0.02-35.4
Output Torque [Nm]: 386
Peak Torque [Nm]: 475
Ratio [i]: 56.49
Mounting Position: M1, M2, M4, M5, M6

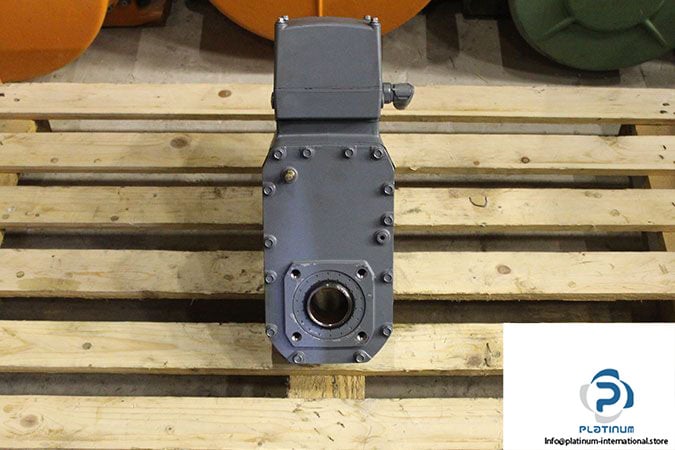

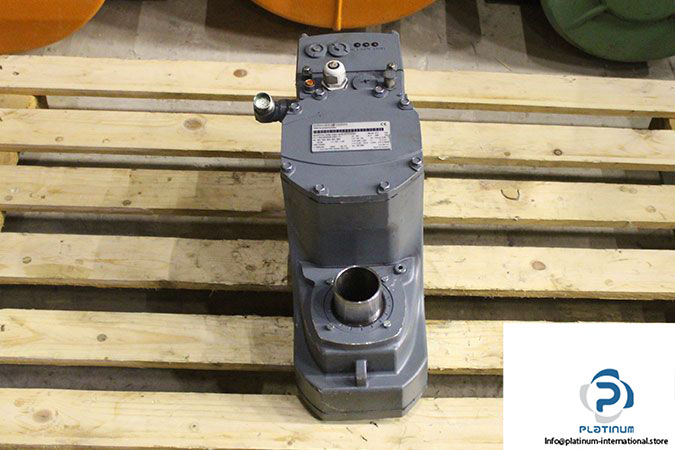

Shaft Design: Hollow Shaft with TorqLOC Clamping Joint
Shaft Geometry [mm]: 40
Shaft Cover: Fixed Safety Cover
Lubricant / Volume [l]: CLP HC 220 Synth.Oil / 1.3
Communication: DBC, Direct Binary Communication
Rated Supply Frequency [Hz]: 50-60 +/- 10%
Supply Voltage [V]: 3×380-500 -5% / +10%
Rated Supply Current [A]: 2.72
cos phi: 0,99
Enclosure [IP]: 65
Ambient Temperature [°C]: -20…+40

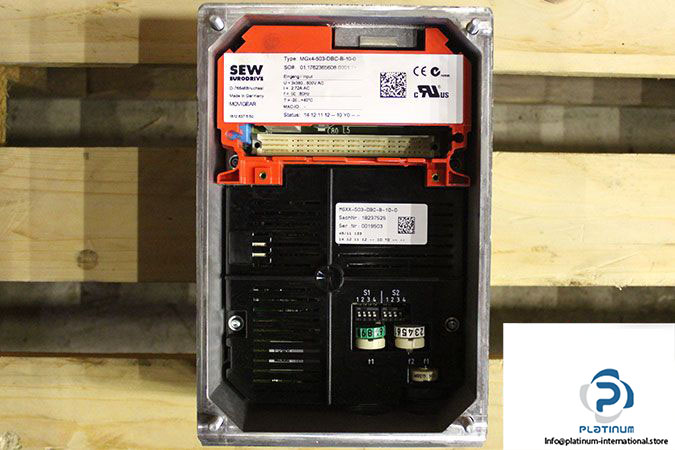

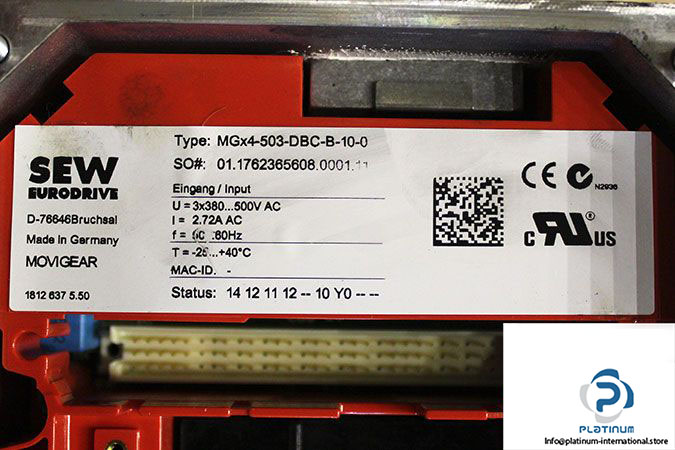

Inverter Type: MOVIGEAR
Rated Voltage Input [V]: 3×380…500 AC
Rated Current Input [A]: 2.72 AC
Frequency Input [Hz]: 50…60
Ambient Temperature Inverter [°C]: -25…+40
Weight [kg]: 25.5
